BB10R-MDZER (1979)
Toyota Coaster
Production
Nov 1979
-
Apr 1982
Engine
2B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

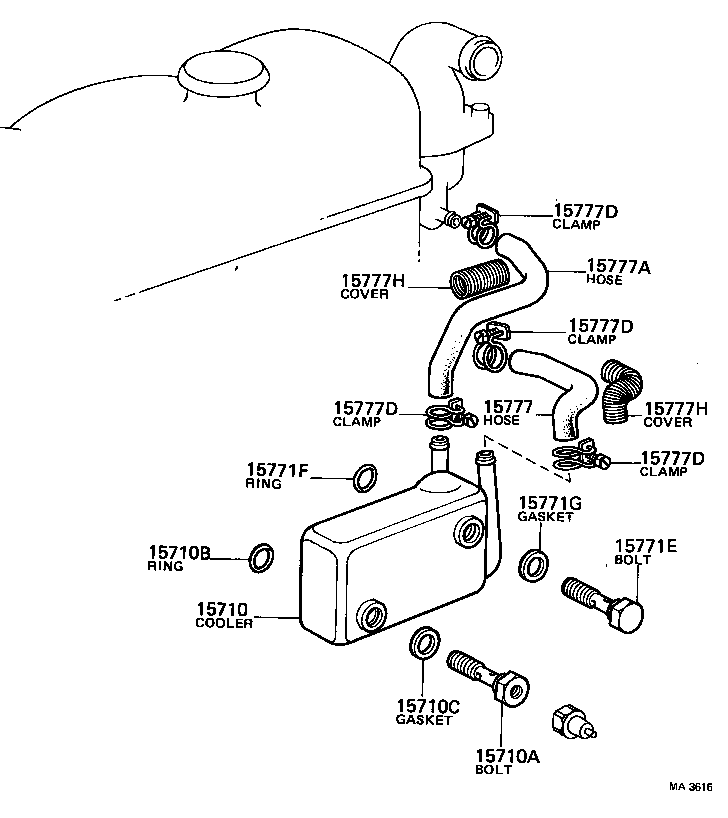

(7708-8008)2B
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15710 - COOLER ASSY, OIL | ||||
| 15710-56020 |
2B..BB10 |
1 | ||
| 15710-56040 |
2B..BB10 |
1 | ||
| 15710A - BOLT, UNION(FOR OIL COOLER) | ||||
| 90401-18084 |
2B..BB10 |
1 | ||
| 15710B - RING, O(FOR OIL COOLER) | ||||
| 90301-20001 |
2B..BB10 |
2 | ||
| 90301-21176 |
2B..BB10 |
2 | ||
| 15710C - GASKET(FOR OIL COOLER) | ||||
| 90923-05014 |
2B..BB10 |
2 | ||
| 90430-18012 |
2B..BB10 |
2 | ||
| 15771E - BOLT, UNION(FOR OIL PIPE) | ||||
| 90401-18083 |
2B..BB10 |
1 | ||
| 15771F - RING, O | ||||
| 90301-21176 |
2B..BB10 |
1 | ||
| 15771G - GASKET | ||||
| 90430-18012 |
2B..BB10 |
1 | ||
| 15777 - HOSE, OIL COOLER | ||||
| 15777-56010 |
2B..BB10 |
1 | ||
| 15777A - HOSE, OIL COOLER | ||||
| 15778-56010 |
2B..BB10 |
1 | ||
| 15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE) | ||||
| 96112-10250 |
2B..BB10 |
4 | ||
| 15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE) | ||||
| 96112-10250 |
2B..BB10 |
4 | ||
| 15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE) | ||||
| 96112-10250 |
2B..BB10 |
4 | ||
| 15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE) | ||||
| 96112-10250 |
2B..BB10 |
4 | ||
| 15777H - COVER, TUBE CLAMP | ||||
| 90947-03006 |
2B..BB10..BC |
2 | ||
| 15777H - COVER, TUBE CLAMP | ||||
| 90947-03006 |
2B..BB10..BC |
2 | ||

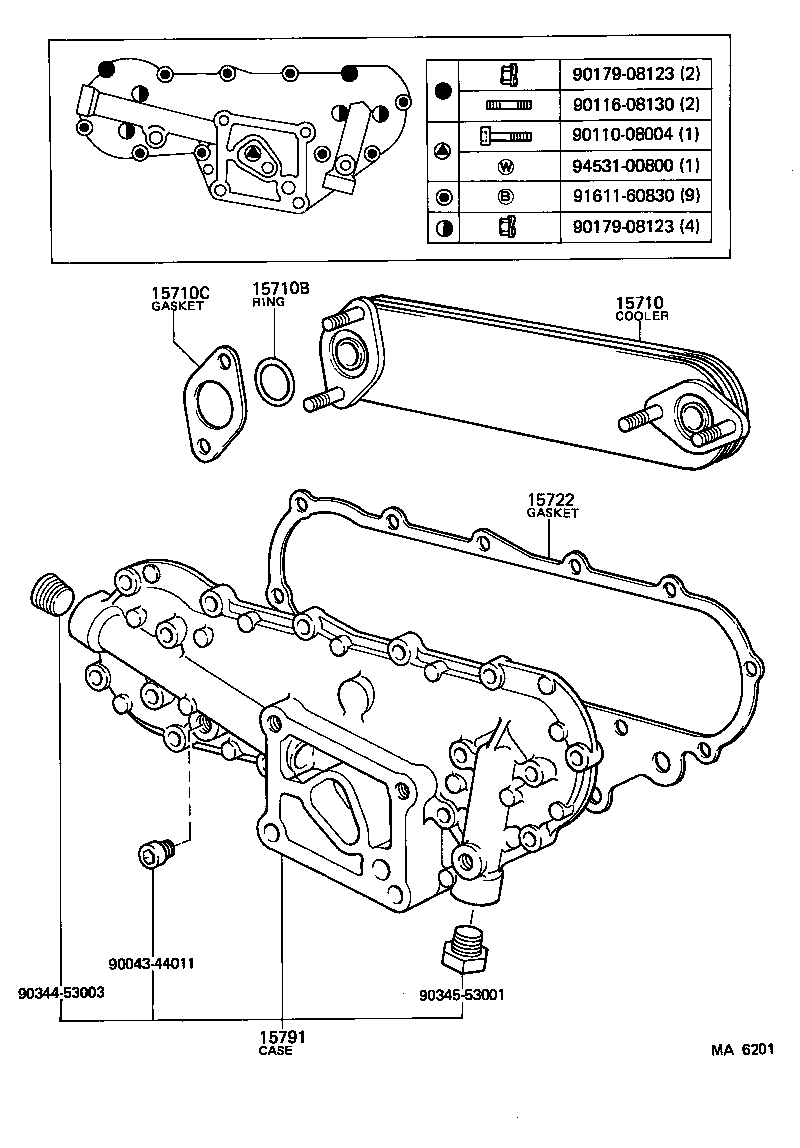

(8008- )2B
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15710 - COOLER ASSY, OIL | ||||
| 15710-56020 |
2B..BB10 |
1 | ||
| 15710-56040 |
2B..BB10 |
1 | ||
| 15710B - RING, O(FOR OIL COOLER) | ||||
| 90301-20001 |
2B..BB10 |
2 | ||
| 90301-21176 |
2B..BB10 |
2 | ||
| 15710C - GASKET(FOR OIL COOLER) | ||||
| 90923-05014 |
2B..BB10 |
2 | ||
| 90430-18012 |
2B..BB10 |
2 | ||
| 15722 - GASKET, OIL COOLER | ||||
| 15725-56010 |
2B..BB10 |
1 | ||
| 15791 - CASE, OIL COOLER | ||||
| 15701-56010 |
2B..BB10 |
1 | ||
| Common parts | ||||
| 90043-44011 | ||||
| 90110-08004 | ||||
| 90116-08130 | ||||
| 90179-08123 | ||||
| 90344-53003 | ||||
| 90345-53001 | ||||
| 91611-60830 | ||||
| 94531-00800 | ||||
