BB10R-MDZER (1979)
Toyota Coaster
Production
Nov 1979
-
Apr 1982
Engine
2B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7708-8008)2B

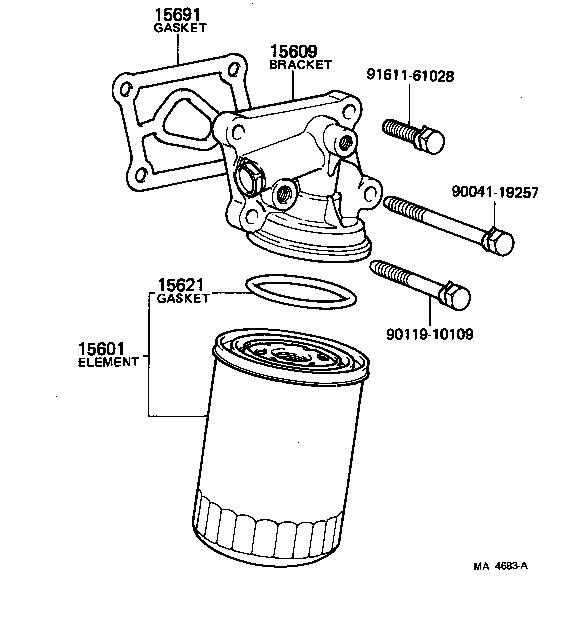

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15601 - FILTER SUB-ASSY, OIL | ||||
| 15600-41010 |
2B..BB10 |
1 | ||
| 15609 - BRACKET SUB-ASSY, OIL FILTER | ||||
| 15609-56020 |
2B..BB10 |
1 | ||
| 15609-56040 |
2B..BB10 |
1 | ||
| 15621 - GASKET, OIL FILTER BODY | ||||
| 15621-41010 |
2B..BB10 |
1 | ||
| 15691 - GASKET, OIL FILTER | ||||
| 15691-56030 |
2B..BB10 |
1 | ||
| 15691-56020 |
2B..BB10 |
1 | ||
| Common parts | ||||
| 90119-10109 | ||||
| 91611-61028 | ||||
(8008- )2B
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15601 - FILTER SUB-ASSY, OIL | ||||
| 15600-41010 |
2B..BB10 |
1 | ||
| 15609 - BRACKET SUB-ASSY, OIL FILTER | ||||
| 15609-56020 |
2B..BB10 |
1 | ||
| 15609-56040 |
2B..BB10 |
1 | ||
| 15621 - GASKET, OIL FILTER BODY | ||||
| 15621-41010 |
2B..BB10 |
1 | ||
| 15691 - GASKET, OIL FILTER | ||||
| 15691-56030 |
2B..BB10 |
1 | ||
| 15691-56020 |
2B..BB10 |
1 | ||
| Common parts | ||||
| 90041-19257 | ||||
| 90119-10109 | ||||
| 91611-61028 | ||||
