BB10R-MDZER (1979)
Toyota Coaster
Production
Nov 1979
-
Apr 1982
Engine
2B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

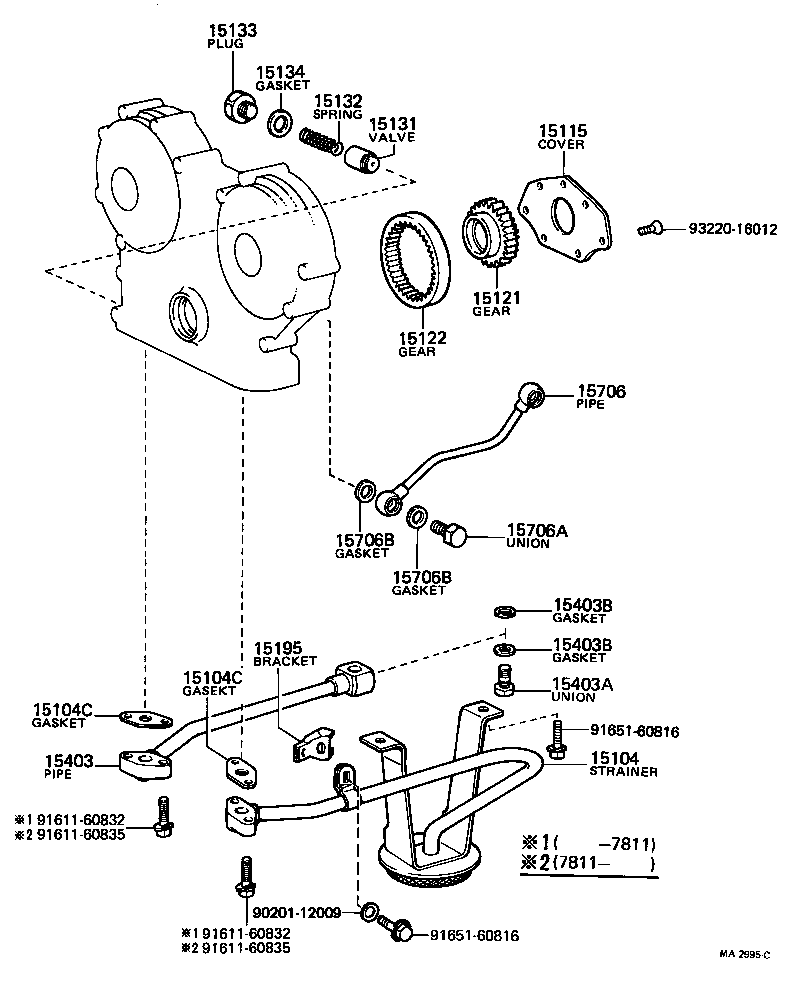

(7708-8008)2B
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15104 - STRAINER SUB-ASSY, OIL | ||||
| 15104-57020 |
2B..BB10 |
1 | ||
| 15104-57010 |
2B..BB10 |
1 | ||
| 15104C - GASKET(FOR OIL STRAINER) | ||||
| 15193-56010 |
2B..BB10 |
2 | ||
| 15422-56020 |
2B..BB10 |
2 | ||
| 15422-56010 |
2B..BB10 |
2 | ||
| 15104C - GASKET(FOR OIL STRAINER) | ||||
| 15193-56010 |
2B..BB10 |
2 | ||
| 15422-56020 |
2B..BB10 |
2 | ||
| 15422-56010 |
2B..BB10 |
2 | ||
| 15115 - COVER, OIL PUMP | ||||
| 15115-56020 |
2B..BB10 |
1 | ||
| 15115-56030 |
2B..BB10 |
1 | ||
| 15121 - GEAR, OIL PUMP DRIVE | ||||
| 15121-56030 |
2B..BB10 N=25 |
1 | ||
| 15121-38020 |
2B..BB10 N=25 |
1 | ||
| 15122 - GEAR, OIL PUMP DRIVEN | ||||
| 15122-38020 |
2B..BB10 N=31 |
1 | ||
| 15122-56030 |
2B..BB10 N=31 |
1 | ||
| 15131 - VALVE, OIL PUMP RELIEF | ||||
| 15131-24010 |
2B..BB10 |
1 | ||
| 15132 - SPRING, OIL PUMP RELIEF VALVE | ||||
| 15132-76011 |
2B..BB10 |
1 | ||
| 15133 - PLUG, OIL PUMP RELIEF VALVE | ||||
| 15133-20010 |
2B..BB10 |
1 | ||
| 15134 - GASKET, OIL PUMP RELIEF VALVE | ||||
| 15134-20010 |
2B..BB10 |
1 | ||
| 15195 - BRACKET, OIL STRAINER | ||||
| 15195-56010 |
2B..BB10 |
1 | ||
| 15403 - PIPE SUB-ASSY, OIL PUMP OUTLET | ||||
| 15403-56030 |
2B..BB10 |
1 | ||
| 15403-56040 |
2B..BB10 |
1 | ||
| 15403A - UNION(FOR OIL PUMP OUTLET PIPE) | ||||
| 90401-18002 |
2B..BB10 |
1 | ||
| 15403B - GASKET(FOR OIL PUMP OUTLET PIPE) | ||||
| 90430-18012 |
2B..BB10 |
2 | ||
| 15403B - GASKET(FOR OIL PUMP OUTLET PIPE) | ||||
| 90430-18012 |
2B..BB10 |
2 | ||
| 15706 - PIPE SUB-ASSY, OIL, INJECTION PUMP OUTLET | ||||
| 15077-56010 |
2B..BB10 |
1 | ||
| 15706A - UNION(FOR INJECTION PUMP OUTLET PIPE) | ||||
| 90401-10007 |
2B..BB10 |
1 | ||
| 15706B - GASKET(FOR INJECTION PUMP OUTLET PIPE) | ||||
| 90044-30026 |
2B..BB10 |
2 | ||
| 15706B - GASKET(FOR INJECTION PUMP OUTLET PIPE) | ||||
| 90044-30026 |
2B..BB10 |
2 | ||
| Common parts | ||||
| 90201-12009 | ||||
| 91611-60832 | ||||
| 91611-60835 | ||||
| 91651-60816 | ||||
| 93220-16012 | ||||

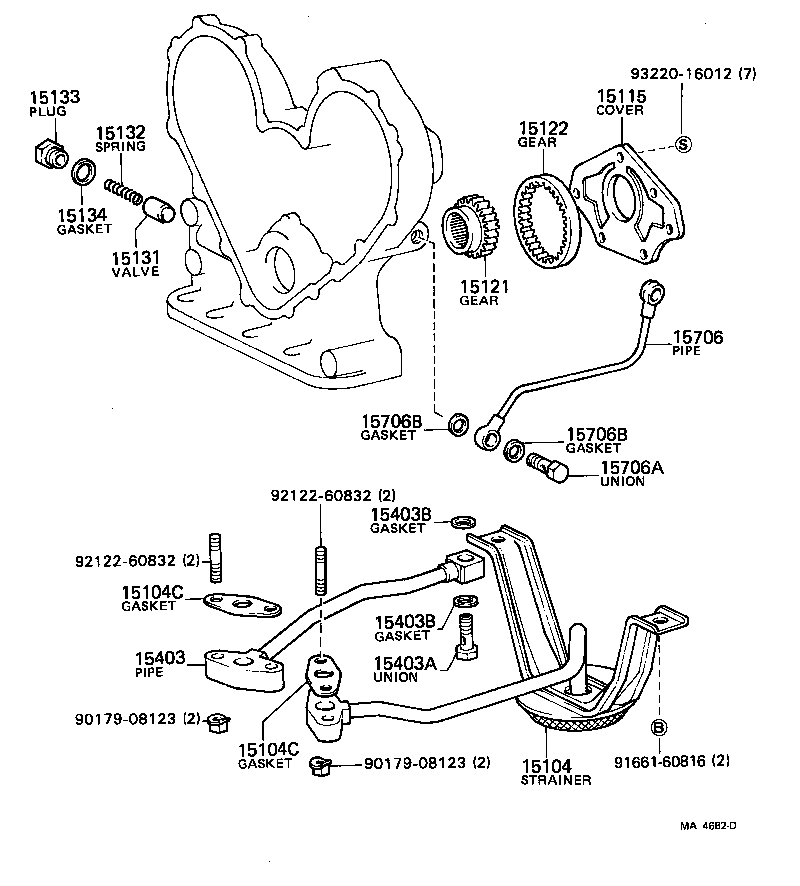

(8008- )2B
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15104 - STRAINER SUB-ASSY, OIL | ||||
| 15104-57020 |
2B..BB10 |
1 | ||
| 15104-57010 |
2B..BB10 |
1 | ||
| 15104C - GASKET(FOR OIL STRAINER) | ||||
| 15193-56010 |
2B..BB10 |
2 | ||
| 15422-56020 |
2B..BB10 |
2 | ||
| 15422-56010 |
2B..BB10 |
2 | ||
| 15104C - GASKET(FOR OIL STRAINER) | ||||
| 15193-56010 |
2B..BB10 |
2 | ||
| 15422-56020 |
2B..BB10 |
2 | ||
| 15422-56010 |
2B..BB10 |
2 | ||
| 15115 - COVER, OIL PUMP | ||||
| 15115-56020 |
2B..BB10 |
1 | ||
| 15115-56030 |
2B..BB10 |
1 | ||
| 15121 - GEAR, OIL PUMP DRIVE | ||||
| 15121-56030 |
2B..BB10 N=25 |
1 | ||
| 15121-38020 |
2B..BB10 N=25 |
1 | ||
| 15122 - GEAR, OIL PUMP DRIVEN | ||||
| 15122-38020 |
2B..BB10 N=31 |
1 | ||
| 15122-56030 |
2B..BB10 N=31 |
1 | ||
| 15131 - VALVE, OIL PUMP RELIEF | ||||
| 15131-24010 |
2B..BB10 |
1 | ||
| 15132 - SPRING, OIL PUMP RELIEF VALVE | ||||
| 15132-76011 |
2B..BB10 |
1 | ||
| 15133 - PLUG, OIL PUMP RELIEF VALVE | ||||
| 15133-20010 |
2B..BB10 |
1 | ||
| 15134 - GASKET, OIL PUMP RELIEF VALVE | ||||
| 15134-20010 |
2B..BB10 |
1 | ||
| 15403 - PIPE SUB-ASSY, OIL PUMP OUTLET | ||||
| 15403-56030 |
2B..BB10 |
1 | ||
| 15403-56040 |
2B..BB10 |
1 | ||
| 15403A - UNION(FOR OIL PUMP OUTLET PIPE) | ||||
| 90401-18002 |
2B..BB10 |
1 | ||
| 15403B - GASKET(FOR OIL PUMP OUTLET PIPE) | ||||
| 90430-18012 |
2B..BB10 |
2 | ||
| 15403B - GASKET(FOR OIL PUMP OUTLET PIPE) | ||||
| 90430-18012 |
2B..BB10 |
2 | ||
| 15706 - PIPE SUB-ASSY, OIL, INJECTION PUMP OUTLET | ||||
| 15077-56010 |
2B..BB10 |
1 | ||
| 15706A - UNION(FOR INJECTION PUMP OUTLET PIPE) | ||||
| 90401-10007 |
2B..BB10 |
1 | ||
| 15706B - GASKET(FOR INJECTION PUMP OUTLET PIPE) | ||||
| 90044-30026 |
2B..BB10 |
2 | ||
| 15706B - GASKET(FOR INJECTION PUMP OUTLET PIPE) | ||||
| 90044-30026 |
2B..BB10 |
2 | ||
| Common parts | ||||
| 90179-08123 | ||||
| 91661-60816 | ||||
| 92122-60832 | ||||
| 93220-16012 | ||||
