BB10R-MDZER (1979)
Toyota Coaster

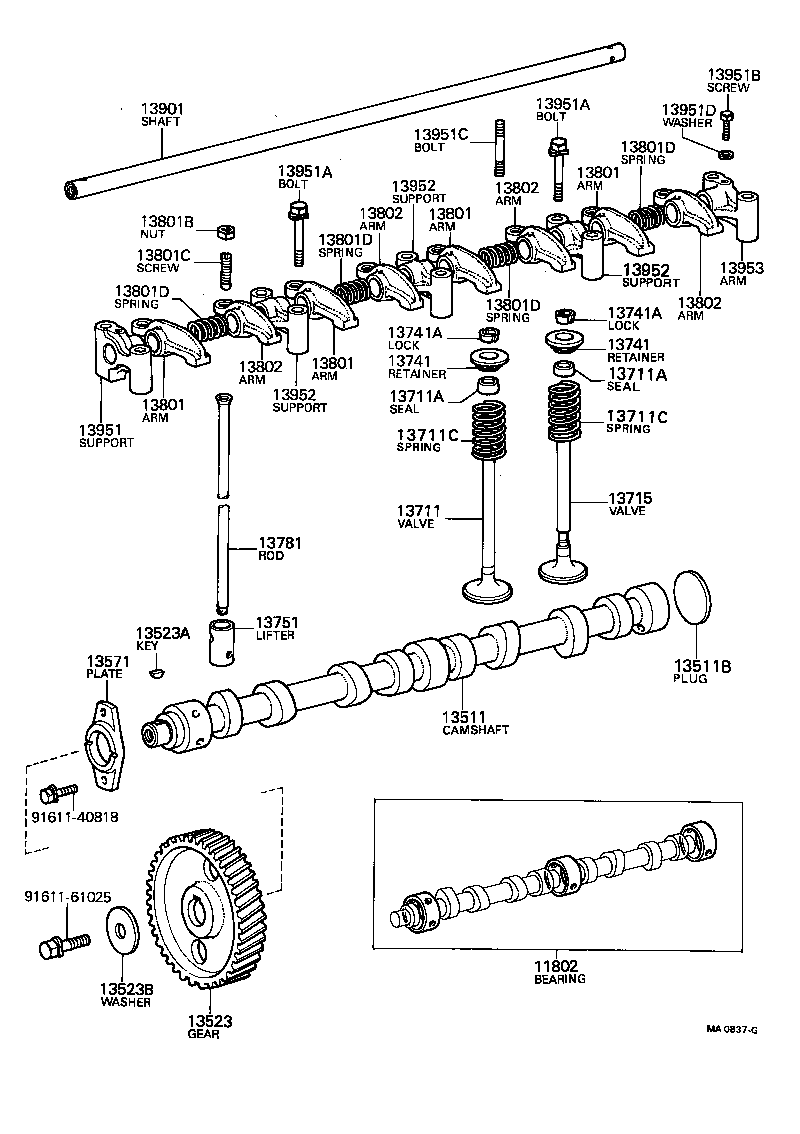

(7708-8008)2B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11802 - BEARING SET, CAMSHAFT | ||||
| 11802-56010 |
2B..BB10 STD |
1 | ||
| 11802-56011 |
2B..BB10 STD |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13511-56010 |
2B..BB10 |
1 | ||
| 13511B - PLUG, EXPANSION(FOR CAMSHAFT) | ||||
| 90331-51032 |
2B..BB10 OD=51 |
1 | ||
| 13523 - GEAR OR SPROCKET, CAMSHAFT TIMING | ||||
| 13523-56020 |
2B..BB10 N=44 |
1 | ||
| 13523-56030 |
2B..BB10 N=44 |
1 | ||
| 13523A - KEY, WOODRUFF(FOR TIMING GEAR) | ||||
| 90280-05010 |
2B..BB10 |
1 | ||
| 95161-10519 |
2B..BB10 |
1 | ||
| 13523B - WASHER, PLATE(FOR TIMING GEAR) | ||||
| 90201-10227 |
2B..BB10 OD=40,ID=10.5 |
1 | ||
| 13571 - PLATE, CAMSHAFT THRUST | ||||
| 13571-56010 |
2B..BB10 |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-56020 |
2B..BB10 |
4 | ||
| 13711-56030 |
2B..BB10 |
4 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02051 |
2B..BB10 |
8 | ||
| 90913-02028 |
2B..BB10 |
8 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02051 |
2B..BB10 |
8 | ||
| 90913-02028 |
2B..BB10 |
8 | ||
| 13711C - SPRING, COMPRESSION(FOR OUTER) | ||||
| 90501-47003 |
2B..BB10 WD=4.7,CW=6.0 |
8 | ||
| 13711C - SPRING, COMPRESSION(FOR OUTER) | ||||
| 90501-47003 |
2B..BB10 WD=4.7,CW=6.0 |
8 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-56020 |
2B..BB10 |
4 | ||
| 13715-56030 |
2B..BB10 |
4 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-56011 |
2B..BB10 |
8 | ||
| 13741-56020 |
2B..BB10 |
8 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-56011 |
2B..BB10 |
8 | ||
| 13741-56020 |
2B..BB10 |
8 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03019 |
2B..BB10 |
16 | ||
| 90913-03003 |
2B..BB10 |
16 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03019 |
2B..BB10 |
16 | ||
| 90913-03003 |
2B..BB10 |
16 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-56011 |
2B..BB10 |
8 | ||
| 13751-56010 |
2B..BB10 |
8 | ||
| 13781 - ROD, VALVE PUSH | ||||
| 13781-31011 |
2B..BB10 |
8 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-56010 |
2B..BB10 |
4 | ||
| 13811-56020 |
2B..BB10 |
4 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-56010 |
2B..BB10 |
4 | ||
| 13811-56020 |
2B..BB10 |
4 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-56010 |
2B..BB10 |
4 | ||
| 13811-56020 |
2B..BB10 |
4 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-56010 |
2B..BB10 |
4 | ||
| 13811-56020 |
2B..BB10 |
4 | ||
| 13801B - NUT, HEXAGON(FOR VALVE ADJUSTING) | ||||
| 90170-10074 |
2B..BB10 |
8 | ||
| 13801C - SCREW, VALVE ADJUSTING | ||||
| 90913-05007 |
2B..BB10 |
8 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-16163 |
2B..BB10 WD=1.6,CW=7.5 |
4 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-16163 |
2B..BB10 WD=1.6,CW=7.5 |
4 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-16163 |
2B..BB10 WD=1.6,CW=7.5 |
4 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-16163 |
2B..BB10 WD=1.6,CW=7.5 |
4 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13812-56010 |
2B..BB10 |
4 | ||
| 13812-56020 |
2B..BB10 |
4 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13812-56010 |
2B..BB10 |
4 | ||
| 13812-56020 |
2B..BB10 |
4 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13812-56010 |
2B..BB10 |
4 | ||
| 13812-56020 |
2B..BB10 |
4 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13812-56010 |
2B..BB10 |
4 | ||
| 13812-56020 |
2B..BB10 |
4 | ||
| 13901 - SHAFT SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13901-56020 |
2B..BB10 |
1 | ||
| 13901-56010 |
2B..BB10 |
1 | ||
| 13951 - SUPPORT, VALVE ROCKER, NO.1 | ||||
| 13951-56010 |
2B..BB10 |
1 | ||
| 13951A - BOLT(FOR ROCKER SUPPORT SET) | ||||
| 91611-60860 |
2B..BB10 *8-1.25PX60-30 |
5 | ||
| 91611-60865 |
2B..BB10 *8-1.25PX65-30 |
5 | ||
| 91611-60855 |
2B..BB10 *8-1.25PX55-30 |
5 | ||
| 91611-60850 |
2B..BB10 *8-1.25PX50-30 |
5 | ||
| 13951A - BOLT(FOR ROCKER SUPPORT SET) | ||||
| 91611-60860 |
2B..BB10 *8-1.25PX60-30 |
5 | ||
| 91611-60865 |
2B..BB10 *8-1.25PX65-30 |
5 | ||
| 91611-60855 |
2B..BB10 *8-1.25PX55-30 |
5 | ||
| 91611-60850 |
2B..BB10 *8-1.25PX50-30 |
5 | ||
| 13951B - SCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK) | ||||
| 90149-60001 |
2B..BB10 |
2 | ||
| 90149-60001 |
2B..BB10 |
2 | ||
| 13951C - BOLT, STUD(FOR ROCKER SUPPORT) | ||||
| 90116-08087 |
2B..BB10 L=81,S=9&26 |
4 | ||
| 90116-08123 |
2B..BB10 L=84,S=9&29 |
4 | ||
| 13951D - WASHER, SEAL(FOR HEAD COVER SET) | ||||
| 90201-06177 |
2B..BB10 |
2 | ||
| 13952 - SUPPORT, VALVE ROCKER, NO.2 | ||||
| 13952-56010 |
2B..BB10 |
3 | ||
| 13952 - SUPPORT, VALVE ROCKER, NO.2 | ||||
| 13952-56010 |
2B..BB10 |
3 | ||
| 13952 - SUPPORT, VALVE ROCKER, NO.2 | ||||
| 13952-56010 |
2B..BB10 |
3 | ||
| 13953 - SUPPORT, VALVE ROCKER, NO.3 | ||||
| 13953-56010 |
2B..BB10 |
1 | ||
| Common parts | ||||
| 91611-40818 | ||||
| 91611-61025 | ||||

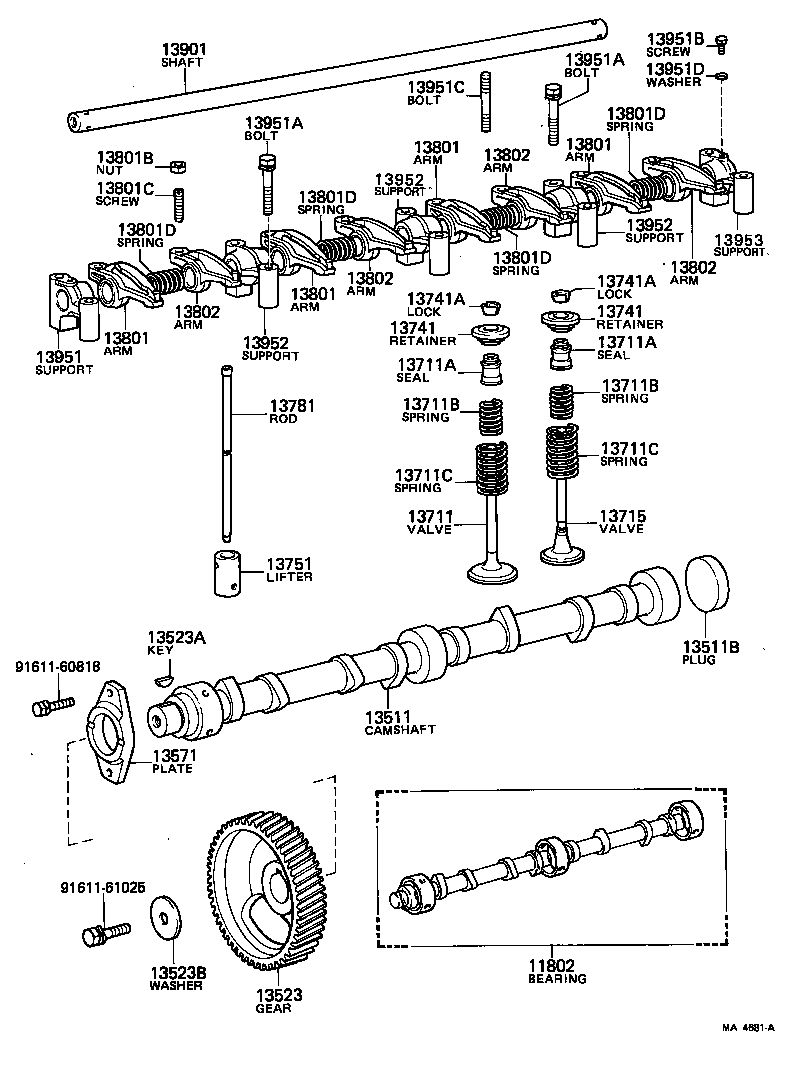

(8008- )2B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11802 - BEARING SET, CAMSHAFT | ||||
| 11802-56010 |
2B..BB10 STD |
1 | ||
| 11802-56011 |
2B..BB10 STD |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13511-56010 |
2B..BB10 |
1 | ||
| 13511B - PLUG, EXPANSION(FOR CAMSHAFT) | ||||
| 90331-51032 |
2B..BB10 OD=51 |
1 | ||
| 13523 - GEAR OR SPROCKET, CAMSHAFT TIMING | ||||
| 13523-56020 |
2B..BB10 N=44 |
1 | ||
| 13523-56030 |
2B..BB10 N=44 |
1 | ||
| 13523A - KEY, WOODRUFF(FOR TIMING GEAR) | ||||
| 90280-05010 |
2B..BB10 |
1 | ||
| 95161-10519 |
2B..BB10 |
1 | ||
| 13523B - WASHER, PLATE(FOR TIMING GEAR) | ||||
| 90201-10227 |
2B..BB10 OD=40,ID=10.5 |
1 | ||
| 13571 - PLATE, CAMSHAFT THRUST | ||||
| 13571-56010 |
2B..BB10 |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-56020 |
2B..BB10 |
4 | ||
| 13711-56030 |
2B..BB10 |
4 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02051 |
2B..BB10 |
8 | ||
| 90913-02028 |
2B..BB10 |
8 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02051 |
2B..BB10 |
8 | ||
| 90913-02028 |
2B..BB10 |
8 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-23018 |
2B..BB10 WD=2.3,CW=7.2 |
8 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-23018 |
2B..BB10 WD=2.3,CW=7.2 |
8 | ||
| 13711C - SPRING, COMPRESSION(FOR OUTER) | ||||
| 90501-47003 |
2B..BB10 WD=4.7,CW=6.0 |
8 | ||
| 13711C - SPRING, COMPRESSION(FOR OUTER) | ||||
| 90501-47003 |
2B..BB10 WD=4.7,CW=6.0 |
8 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-56020 |
2B..BB10 |
4 | ||
| 13715-56030 |
2B..BB10 |
4 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-56011 |
2B..BB10 |
8 | ||
| 13741-56020 |
2B..BB10 |
8 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-56011 |
2B..BB10 |
8 | ||
| 13741-56020 |
2B..BB10 |
8 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03019 |
2B..BB10 |
16 | ||
| 90913-03003 |
2B..BB10 |
16 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03019 |
2B..BB10 |
16 | ||
| 90913-03003 |
2B..BB10 |
16 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-56011 |
2B..BB10 |
8 | ||
| 13751-56010 |
2B..BB10 |
8 | ||
| 13781 - ROD, VALVE PUSH | ||||
| 13781-31011 |
2B..BB10 |
8 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-56010 |
2B..BB10 |
4 | ||
| 13811-56020 |
2B..BB10 |
4 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-56010 |
2B..BB10 |
4 | ||
| 13811-56020 |
2B..BB10 |
4 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-56010 |
2B..BB10 |
4 | ||
| 13811-56020 |
2B..BB10 |
4 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-56010 |
2B..BB10 |
4 | ||
| 13811-56020 |
2B..BB10 |
4 | ||
| 13801B - NUT, HEXAGON(FOR VALVE ADJUSTING) | ||||
| 90170-10074 |
2B..BB10 |
8 | ||
| 13801C - SCREW, VALVE ADJUSTING | ||||
| 90913-05007 |
2B..BB10 |
8 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-16163 |
2B..BB10 WD=1.6,CW=7.5 |
4 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-16163 |
2B..BB10 WD=1.6,CW=7.5 |
4 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-16163 |
2B..BB10 WD=1.6,CW=7.5 |
4 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-16163 |
2B..BB10 WD=1.6,CW=7.5 |
4 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13812-56010 |
2B..BB10 |
4 | ||
| 13812-56020 |
2B..BB10 |
4 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13812-56010 |
2B..BB10 |
4 | ||
| 13812-56020 |
2B..BB10 |
4 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13812-56010 |
2B..BB10 |
4 | ||
| 13812-56020 |
2B..BB10 |
4 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13812-56010 |
2B..BB10 |
4 | ||
| 13812-56020 |
2B..BB10 |
4 | ||
| 13901 - SHAFT SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13901-56020 |
2B..BB10 |
1 | ||
| 13901-56010 |
2B..BB10 |
1 | ||
| 13951 - SUPPORT, VALVE ROCKER, NO.1 | ||||
| 13951-56010 |
2B..BB10 |
1 | ||
| 13951A - BOLT(FOR ROCKER SUPPORT SET) | ||||
| 91611-60860 |
2B..BB10 *8-1.25PX60-30 |
5 | ||
| 91611-60865 |
2B..BB10 *8-1.25PX65-30 |
5 | ||
| 91611-60855 |
2B..BB10 *8-1.25PX55-30 |
5 | ||
| 91611-60850 |
2B..BB10 *8-1.25PX50-30 |
5 | ||
| 13951A - BOLT(FOR ROCKER SUPPORT SET) | ||||
| 91611-60860 |
2B..BB10 *8-1.25PX60-30 |
5 | ||
| 91611-60865 |
2B..BB10 *8-1.25PX65-30 |
5 | ||
| 91611-60855 |
2B..BB10 *8-1.25PX55-30 |
5 | ||
| 91611-60850 |
2B..BB10 *8-1.25PX50-30 |
5 | ||
| 13951B - SCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK) | ||||
| 90149-60001 |
2B..BB10 |
2 | ||
| 90149-60001 |
2B..BB10 |
2 | ||
| 13951C - BOLT, STUD(FOR ROCKER SUPPORT) | ||||
| 90116-08087 |
2B..BB10 L=81,S=9&26 |
4 | ||
| 90116-08123 |
2B..BB10 L=84,S=9&29 |
4 | ||
| 13951D - WASHER, SEAL(FOR HEAD COVER SET) | ||||
| 90201-06177 |
2B..BB10 |
2 | ||
| 13952 - SUPPORT, VALVE ROCKER, NO.2 | ||||
| 13952-56010 |
2B..BB10 |
3 | ||
| 13952 - SUPPORT, VALVE ROCKER, NO.2 | ||||
| 13952-56010 |
2B..BB10 |
3 | ||
| 13952 - SUPPORT, VALVE ROCKER, NO.2 | ||||
| 13952-56010 |
2B..BB10 |
3 | ||
| 13953 - SUPPORT, VALVE ROCKER, NO.3 | ||||
| 13953-56010 |
2B..BB10 |
1 | ||
| Common parts | ||||
| 91611-60818 | ||||
| 91611-61025 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
