BB10R-MDZER (1979)
Toyota Coaster

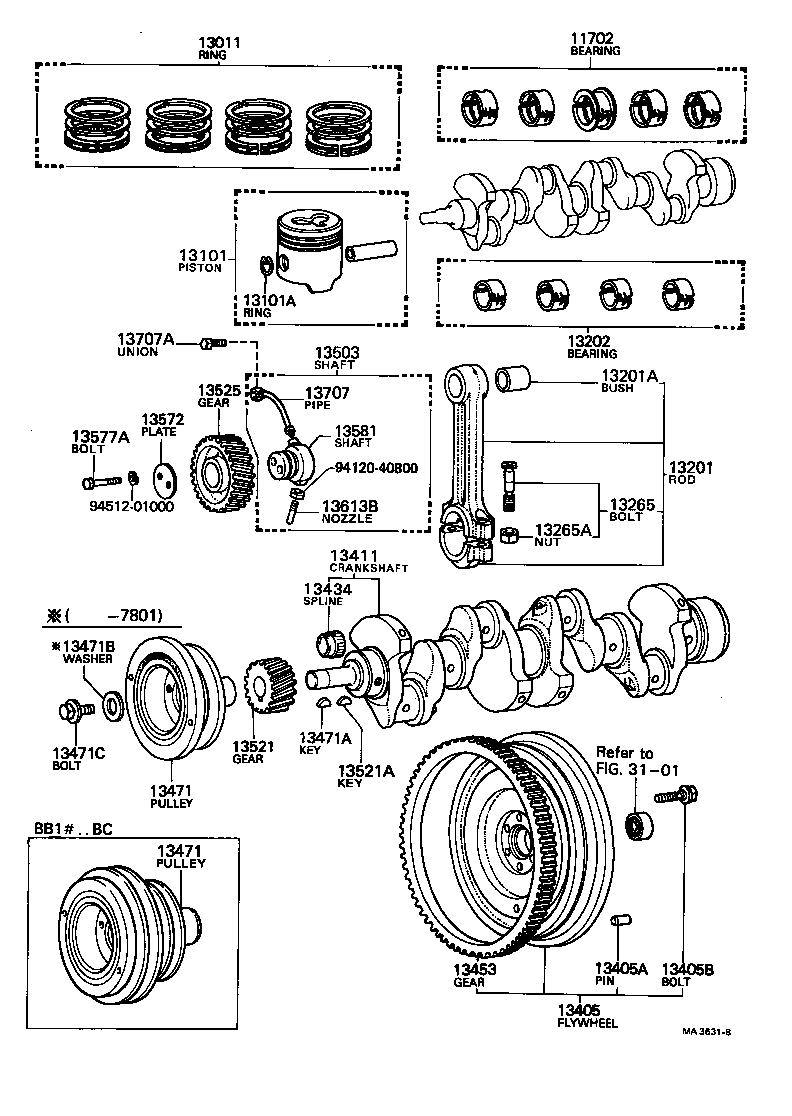

(7708-8008)2B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11702-56010 |
2B..BB10 STD,STD |
1 | ||
| 11705-56010 |
2B..BB10 U/S 0.50,U/S 0.50 |
1 | ||
| 11704-56010 |
2B..BB10 U/S 0.25,U/S 0.25 |
1 | ||
| 11707-56010 |
2B..BB10 U/S 1.00,U/S 1.00 |
1 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-57010 |
2B..BB10 STD |
1 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-57011 |
2B..BB10 STD |
4 | ||
| 13101-57020 |
2B..BB10 STD |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90521-33130 |
2B..BB10 |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-56010 |
2B..BB10 |
4 | ||
| 13201-56020 |
2B..BB10 |
4 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73065 |
2B..BB10 |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13205-56010 |
2B..BB10 U/S 0.50 |
1 | ||
| 13207-56010 |
2B..BB10 U/S 1.00 |
1 | ||
| 13204-56010 |
2B..BB10 U/S 0.25 |
1 | ||
| 13202-56010 |
2B..BB10 STD |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-59015 |
2B..BB10 |
8 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90170-11112 |
2B..BB10 |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-59055 |
2B..BB10 |
1 | ||
| 13405-59025 |
2B..BB10 N=110 |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-10192 |
2B..BB10 L=22,OD=10,L=22,OD=10 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90105-12039 |
2B..BB10 *12-1.25PX32-22 |
6 | ||
| 90105-13002 |
2B..BB10 *13-1.5PX32-22 |
6 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-56010 |
2B..BB10 |
1 | ||
| 13401-56020 |
2B..BB10 |
1 | ||
| 13434 - SPLINE, OIL PUMP DRIVE | ||||
| 13519-56010 |
2B..BB10 |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-56020 |
2B..BB10 N=110 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13470-57011 |
2B..BB10..BC |
1 | ||
| 13470-57020 |
2B..BB10..BC |
1 | ||
| 13470-57010 |
2B..BB10..BC |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13470-57011 |
2B..BB10..BC |
1 | ||
| 13470-57020 |
2B..BB10..BC |
1 | ||
| 13470-57010 |
2B..BB10..BC |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 95161-10416 |
2B..BB10 |
1 | ||
| 90280-05010 |
2B..BB10 |
1 | ||
| 13471B - WASHER, PLATE(FOR CRANKSHAFT PULLEY SET) | ||||
| 90209-32037 |
2B..BB10 |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90105-16003 |
2B..BB10 |
1 | ||
| 13503 - SHAFT SUB-ASSY, IDLE GEAR | ||||
| 13504-56020 |
2B..BB10 |
1 | ||
| 13504-56010 |
2B..BB10 |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-56020 |
2B..BB10 N=22 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 90280-05010 |
2B..BB10 |
1 | ||
| 95161-10519 |
2B..BB10 |
1 | ||
| 13525 - GEAR, IDLE, NO.1 | ||||
| 13525-56010 |
2B..BB10 N=35 |
1 | ||
| 13572 - PLATE, IDLE GEAR THRUST | ||||
| 13572-56010 |
2B..BB10 |
1 | ||
| 13577A - BOLT, HEXAGON(FOR IDLE GEAR BOLT LOCK) | ||||
| 90119-10208 |
2B..BB10 |
2 | ||
| 90101-10031 |
2B..BB10 |
2 | ||
| 13581 - SHAFT, IDLE GEAR, NO.1 | ||||
| 13581-56020 |
2B..BB10 |
1 | ||
| 13613B - NOZZLE, TIMING GEAR OIL | ||||
| 90915-01011 |
2B..BB10 |
1 | ||
| 13707 - PIPE SUB-ASSY, OIL, NO.1 | ||||
| 15707-56010 |
2B..BB10 |
1 | ||
| 13707A - UNION(FOR OIL PIPE, NO.1) | ||||
| 90401-10007 |
2B..BB10 |
1 | ||
| Common parts | ||||
| 94120-40800 | ||||
| 94512-01000 | ||||
| Linked diagrams | ||||
| 3101 | ||||

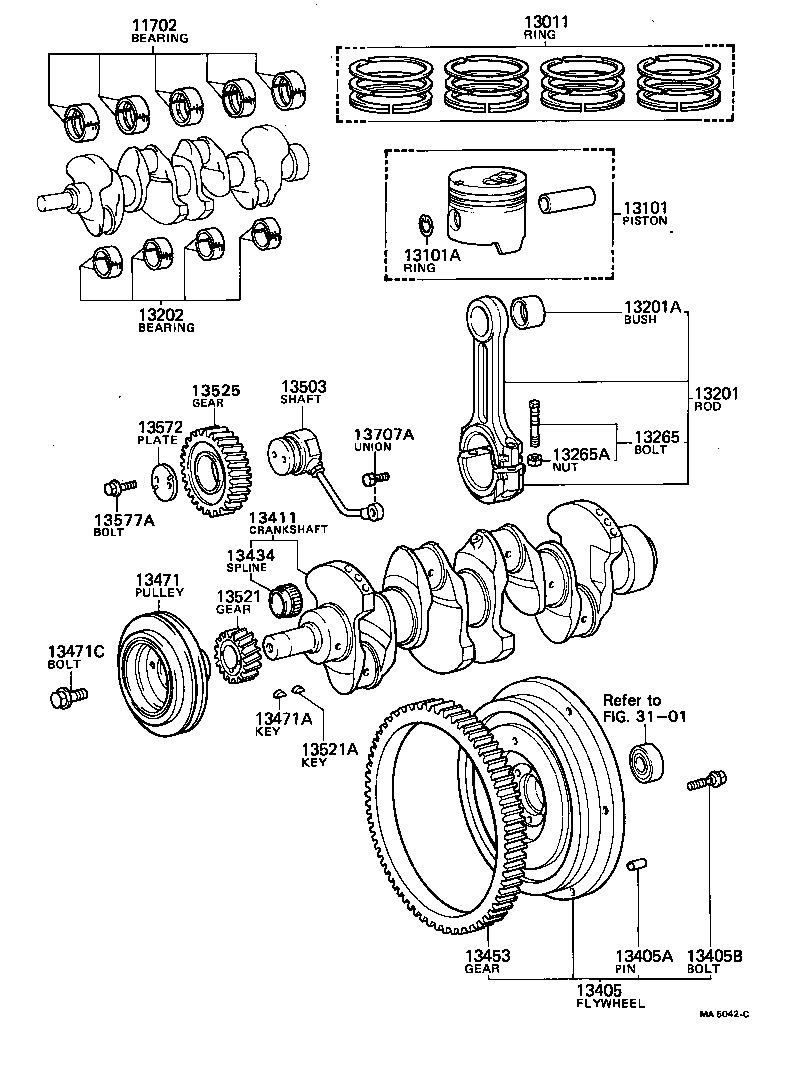

(8008- )2B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11702-56010 |
2B..BB10 STD,STD |
1 | ||
| 11705-56010 |
2B..BB10 U/S 0.50,U/S 0.50 |
1 | ||
| 11704-56010 |
2B..BB10 U/S 0.25,U/S 0.25 |
1 | ||
| 11707-56010 |
2B..BB10 U/S 1.00,U/S 1.00 |
1 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-57010 |
2B..BB10 STD |
1 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-57011 |
2B..BB10 STD |
4 | ||
| 13101-57020 |
2B..BB10 STD |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90521-33130 |
2B..BB10 |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-56010 |
2B..BB10 |
4 | ||
| 13201-56020 |
2B..BB10 |
4 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73065 |
2B..BB10 |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13205-56010 |
2B..BB10 U/S 0.50 |
1 | ||
| 13207-56010 |
2B..BB10 U/S 1.00 |
1 | ||
| 13204-56010 |
2B..BB10 U/S 0.25 |
1 | ||
| 13202-56010 |
2B..BB10 STD |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-59015 |
2B..BB10 |
8 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90170-11112 |
2B..BB10 |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-59055 |
2B..BB10 |
1 | ||
| 13405-59025 |
2B..BB10 N=110 |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-10192 |
2B..BB10 L=22,OD=10,L=22,OD=10 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90105-12039 |
2B..BB10 *12-1.25PX32-22 |
6 | ||
| 90105-13002 |
2B..BB10 *13-1.5PX32-22 |
6 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-56010 |
2B..BB10 |
1 | ||
| 13401-56020 |
2B..BB10 |
1 | ||
| 13434 - SPLINE, OIL PUMP DRIVE | ||||
| 13519-56010 |
2B..BB10 |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-56020 |
2B..BB10 N=110 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13470-57011 |
2B..BB10..BC |
1 | ||
| 13470-57020 |
2B..BB10..BC |
1 | ||
| 13470-57010 |
2B..BB10..BC |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 95161-10416 |
2B..BB10 |
1 | ||
| 90280-05010 |
2B..BB10 |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90105-16003 |
2B..BB10 |
1 | ||
| 13503 - SHAFT SUB-ASSY, IDLE GEAR | ||||
| 13504-56020 |
2B..BB10 |
1 | ||
| 13504-56010 |
2B..BB10 |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-56020 |
2B..BB10 N=22 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 90280-05010 |
2B..BB10 |
1 | ||
| 95161-10519 |
2B..BB10 |
1 | ||
| 13525 - GEAR, IDLE, NO.1 | ||||
| 13525-56010 |
2B..BB10 N=35 |
1 | ||
| 13572 - PLATE, IDLE GEAR THRUST | ||||
| 13572-56010 |
2B..BB10 |
1 | ||
| 13577A - BOLT, HEXAGON(FOR IDLE GEAR BOLT LOCK) | ||||
| 90119-10208 |
2B..BB10 |
2 | ||
| 90101-10031 |
2B..BB10 |
2 | ||
| 13707A - UNION(FOR OIL PIPE, NO.1) | ||||
| 90401-10007 |
2B..BB10 |
1 | ||
| Linked diagrams | ||||
| 3101 | ||||
