BB10R-MDZER (1979)
Toyota Coaster
Production
Nov 1979
-
Apr 1982
Engine
2B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7708-8008)2B

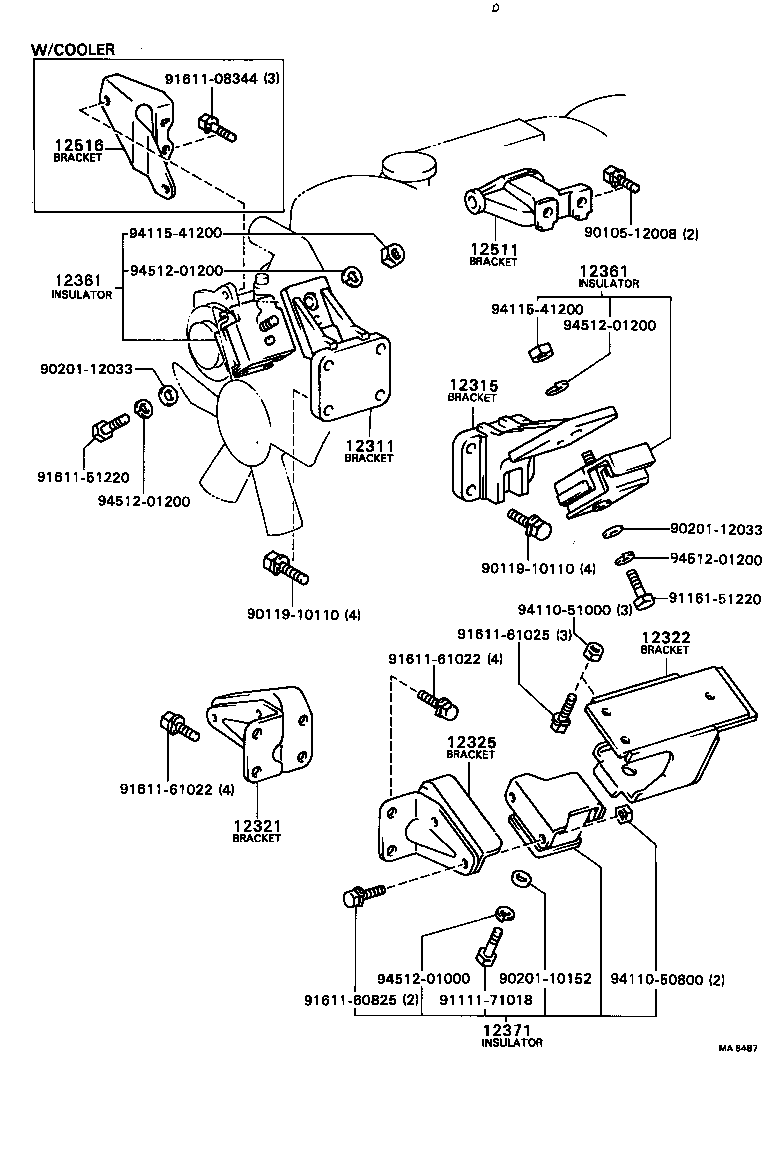

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-56030 |
2B..BB10 |
1 | ||
| 12311-56010 |
2B..BB10 |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12311-56010 |
2B..BB10 |
1 | ||
| 12311-56030 |
2B..BB10 |
1 | ||
| 12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1 | ||||
| 12321-56010 |
2B..BB10 |
1 | ||
| 12322 - BRACKET, ENGINE MOUNTING, REAR NO.2 | ||||
| 12322-57010 |
2B..BB10 |
2 | ||
| 12322-57011 |
2B..BB10 |
2 | ||
| 12325 - BRACKET, ENGINE MOUNTING, NO.3 | ||||
| 12325-56010 |
2B..BB10 |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-59055 |
2B..BB10 |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-59055 |
2B..BB10 |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-59035 |
2B..BB10 |
2 | ||
| 12501 - BRACKET SUB-ASSY, ALTERNATOR | ||||
| 12501-57010 |
2B..BB10..BC |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-57010 |
2B..BB10..BC |
1 | ||
| 12511-57020 |
2B..BB10..BC |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-57010 |
2B..BB10..BC |
1 | ||
| 12511-57020 |
2B..BB10..BC |
1 | ||
| Common parts | ||||
| 90105-12008 | ||||
| 90119-10110 | ||||
| 90201-10152 | ||||
| 90201-12033 | ||||
| 91111-71018 | ||||
| 91161-51220 | ||||
| 91611-60825 | ||||
| 91611-61020 | ||||
| 91611-61022 | ||||
| 91611-61025 | ||||
| 91651-61045 | ||||
| 94110-41000 | ||||
| 94110-50800 | ||||
| 94110-51000 | ||||
| 94115-41200 | ||||
| 94512-01000 | ||||
| 94512-01200 | ||||
| 94612-11001 | ||||
(8008- )2B

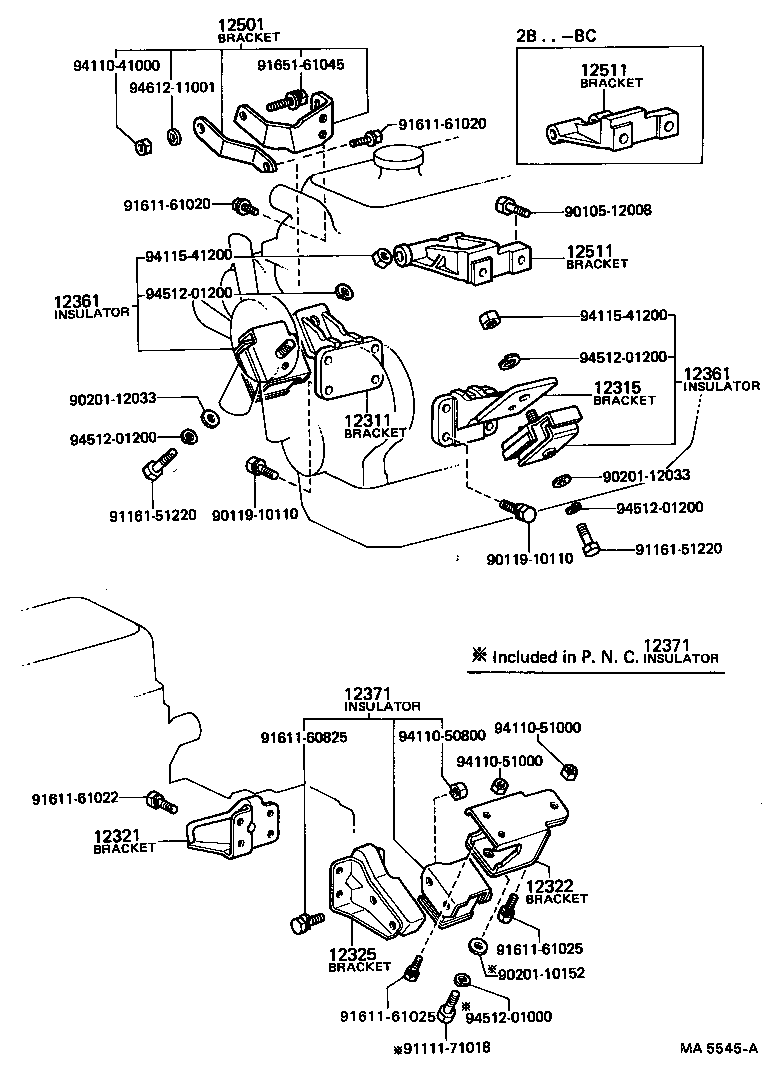

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-56030 |
2B..BB10 |
1 | ||
| 12311-56010 |
2B..BB10 |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12311-56010 |
2B..BB10 |
1 | ||
| 12311-56030 |
2B..BB10 |
1 | ||
| 12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1 | ||||
| 12321-56010 |
2B..BB10 |
1 | ||
| 12322 - BRACKET, ENGINE MOUNTING, REAR NO.2 | ||||
| 12322-57010 |
2B..BB10 |
2 | ||
| 12322-57011 |
2B..BB10 |
2 | ||
| 12325 - BRACKET, ENGINE MOUNTING, NO.3 | ||||
| 12325-56010 |
2B..BB10 |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-59055 |
2B..BB10 |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-59055 |
2B..BB10 |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-59035 |
2B..BB10 |
2 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-57010 |
2B..BB10..BC |
1 | ||
| 12511-57020 |
2B..BB10..BC |
1 | ||
| 12516 - BRACKET, ALTERNATOR, NO.2 | ||||
| 12512-57020 |
2B..BB10..BC |
1 | ||
| Common parts | ||||
| 90105-12008 | ||||
| 90119-10110 | ||||
| 90201-10152 | ||||
| 90201-12033 | ||||
| 91111-71018 | ||||
| 91161-51220 | ||||
| 91611-08344 | ||||
| 91611-51220 | ||||
| 91611-60825 | ||||
| 91611-61022 | ||||
| 91611-61025 | ||||
| 94110-50800 | ||||
| 94110-51000 | ||||
| 94115-41200 | ||||
| 94512-01000 | ||||
| 94512-01200 | ||||
