BB10R-MDZER (1979)
Toyota Coaster
Production
Nov 1979
-
Apr 1982
Engine
2B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

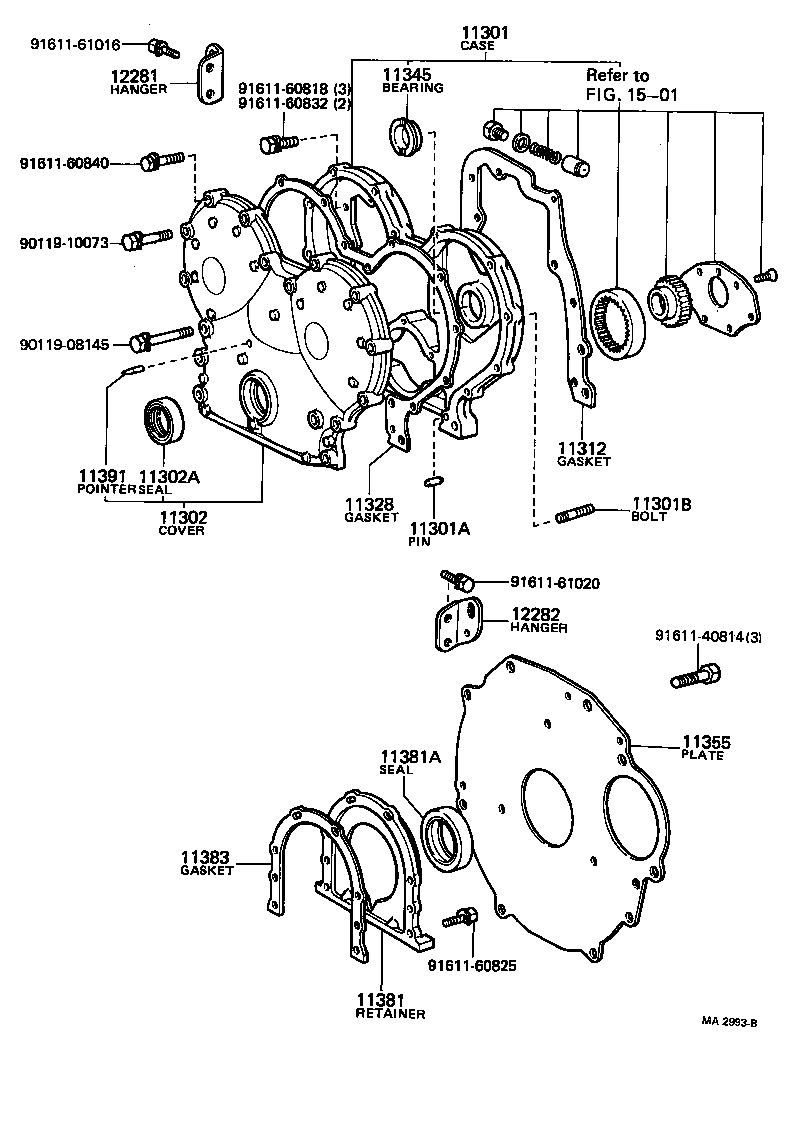

(7708-8008)2B
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11301 - CASE SUB-ASSY, TIMING GEAR | ||||
| 11301-56030 |
2B..BB10 |
1 | ||
| 11301-56020 |
2B..BB10 |
1 | ||
| 11301A - PIN, STRAIGHT(FOR TIMING GEAR CASE) | ||||
| 90250-08120 |
2B..BB10 L=18,OD=8,L=18,OD=8 |
2 | ||
| 11301B - BOLT,STUD(FOR TIMING GEAR CASE) | ||||
| 90116-10048 |
2B..BB10 L=40,S=19&12 |
3 | ||
| 11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT | ||||
| 11302-56030 |
2B..BB10 |
1 | ||
| 11302-56020 |
2B..BB10 |
1 | ||
| 11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER) | ||||
| 90311-50002 |
2B..BB10 TC3 50 72 12 |
1 | ||
| 11312 - GASKET, FRONT END PLATE | ||||
| 11312-56030 |
2B..BB10 |
1 | ||
| 11312-56020 |
2B..BB10 |
1 | ||
| 11328 - GASKET, TIMING GEAR OR CHAIN COVER | ||||
| 11328-56020 |
2B..BB10 |
1 | ||
| 11328-56030 |
2B..BB10 |
1 | ||
| 11345 - BEARING, INJECTION PUMP GEAR THRUST | ||||
| 11345-48010 |
2B..BB10 |
1 | ||
| 11355 - PLATE, REAR END | ||||
| 11355-56050 |
2B..BB10 |
1 | ||
| 11355-56030 |
2B..BB10 |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-56030 |
2B..BB10 |
1 | ||
| 11381-56020 |
2B..BB10 |
1 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| 90311-95001 |
2B..BB10 TC3 95 115 12 |
1 | ||
| 11383 - GASKET, ENGINE REAR OIL SEAL RETAINER | ||||
| 11383-56020 |
2B..BB10 |
1 | ||
| 11383-56030 |
2B..BB10 |
1 | ||
| 11391 - POINTER, TIMING | ||||
| 11391-56020 |
2B..BB10 |
1 | ||
| 12281 - HANGER, ENGINE, NO.1 | ||||
| 12281-56020 |
2B..BB10 |
1 | ||
| 12282 - HANGER, ENGINE, NO.2 | ||||
| 12282-56020 |
2B..BB10 |
1 | ||
| Common parts | ||||
| 90119-08145 | ||||
| 90119-10073 | ||||
| 91611-40814 | ||||
| 91611-60818 | ||||
| 91611-60825 | ||||
| 91611-60832 | ||||
| 91611-60840 | ||||
| 91611-61016 | ||||
| 91611-61020 | ||||
| Linked diagrams | ||||
| 1501 | ||||

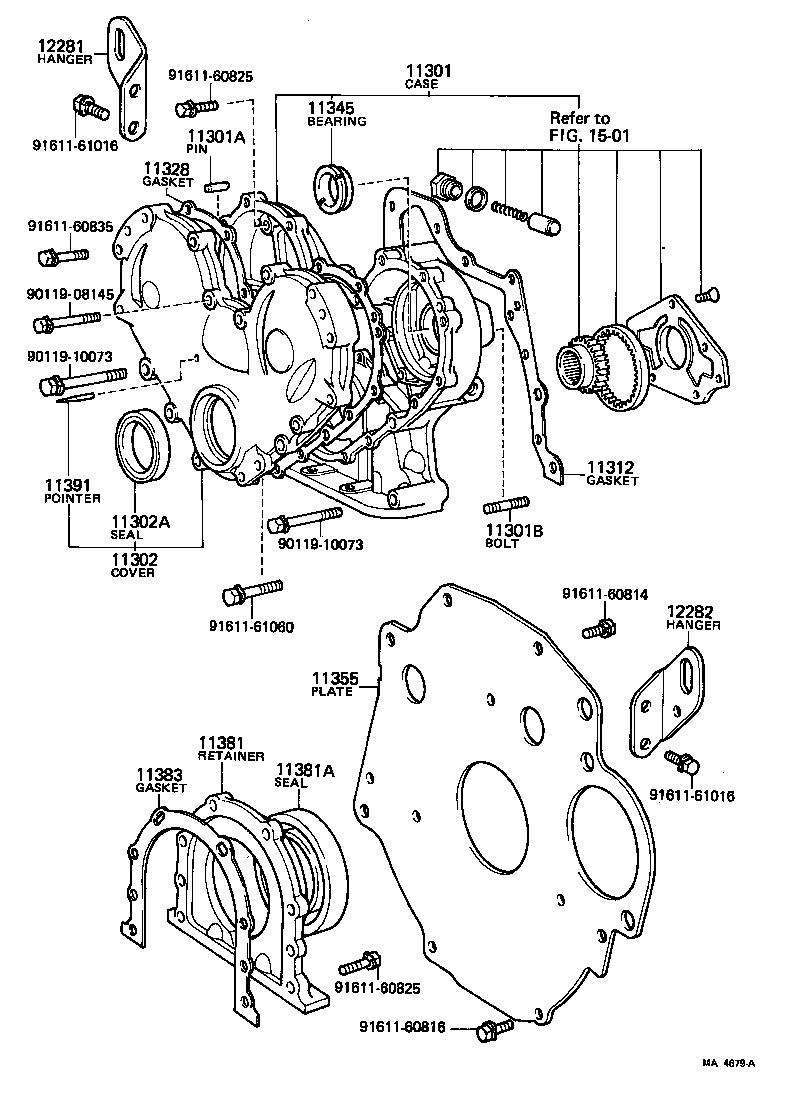

(8008- )2B
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11301 - CASE SUB-ASSY, TIMING GEAR | ||||
| 11301-56030 |
2B..BB10 |
1 | ||
| 11301-56020 |
2B..BB10 |
1 | ||
| 11301A - PIN, STRAIGHT(FOR TIMING GEAR CASE) | ||||
| 90250-08120 |
2B..BB10 L=18,OD=8,L=18,OD=8 |
2 | ||
| 11301B - BOLT,STUD(FOR TIMING GEAR CASE) | ||||
| 90116-10048 |
2B..BB10 L=40,S=19&12 |
3 | ||
| 11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT | ||||
| 11302-56030 |
2B..BB10 |
1 | ||
| 11302-56020 |
2B..BB10 |
1 | ||
| 11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER) | ||||
| 90311-50002 |
2B..BB10 TC3 50 72 12 |
1 | ||
| 11312 - GASKET, FRONT END PLATE | ||||
| 11312-56030 |
2B..BB10 |
1 | ||
| 11312-56020 |
2B..BB10 |
1 | ||
| 11328 - GASKET, TIMING GEAR OR CHAIN COVER | ||||
| 11328-56020 |
2B..BB10 |
1 | ||
| 11328-56030 |
2B..BB10 |
1 | ||
| 11345 - BEARING, INJECTION PUMP GEAR THRUST | ||||
| 11345-48010 |
2B..BB10 |
1 | ||
| 11355 - PLATE, REAR END | ||||
| 11355-56050 |
2B..BB10 |
1 | ||
| 11355-56030 |
2B..BB10 |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-56030 |
2B..BB10 |
1 | ||
| 11381-56020 |
2B..BB10 |
1 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| 90311-95001 |
2B..BB10 TC3 95 115 12 |
1 | ||
| 11383 - GASKET, ENGINE REAR OIL SEAL RETAINER | ||||
| 11383-56020 |
2B..BB10 |
1 | ||
| 11383-56030 |
2B..BB10 |
1 | ||
| 11391 - POINTER, TIMING | ||||
| 11391-56020 |
2B..BB10 |
1 | ||
| 12281 - HANGER, ENGINE, NO.1 | ||||
| 12281-56020 |
2B..BB10 |
1 | ||
| 12282 - HANGER, ENGINE, NO.2 | ||||
| 12282-56020 |
2B..BB10 |
1 | ||
| Common parts | ||||
| 90119-08145 | ||||
| 90119-10073 | ||||
| 91611-60814 | ||||
| 91611-60816 | ||||
| 91611-60825 | ||||
| 91611-60835 | ||||
| 91611-61016 | ||||
| 91611-61060 | ||||
| Linked diagrams | ||||
| 1501 | ||||
