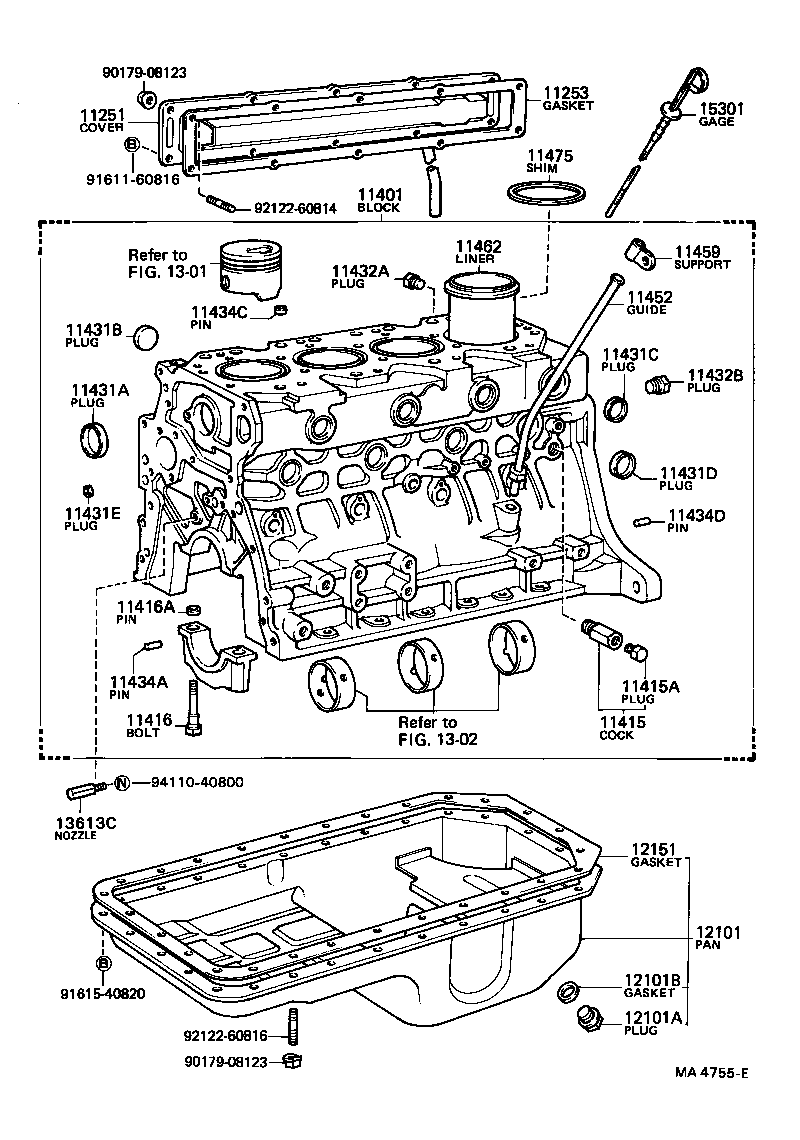

BB10R-MDZER (1979)
Toyota Coaster
(7708-8008)2B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11251 - COVER, VALVE PUSH ROD | ||||
| 11203-56030 |
2B..BB10 |
1 | ||
| 11203-56020 |
2B..BB10 |
1 | ||
| 11253 - GASKET, VALVE PUSH ROD COVER | ||||
| 11253-56010 |
2B..BB10 |
1 | ||
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-59055 |
2B..BB10 |
1 | ||
| 11401-59135 |
2B..BB10 |
1 | ||
| 11401-59095 |
2B..BB10 |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 96431-03833 |
2B..BB10 |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 96431-23814 |
2B..BB10 |
1 | ||
| 11415B - HOSE(FOR DRAIN COCK) | ||||
| 90446-12305 |
2B..BB10 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02045 |
2B..BB10 *12-1.25PX75-22 |
10 | ||
| 90101-13001 |
2B..BB10 *13-1.5PX78.5-20 |
10 | ||
| 11416A - PIN, RING(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90253-18002 |
2B..BB10 L=17.5,OD=10 |
10 | ||
| 90253-15005 |
2B..BB10 L=7,OD=14.5 |
10 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 90331-51032 |
2B..BB10 OD=51 |
2 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-12800 |
2B..BB10 OD=28 |
4 | ||
| 96411-12500 |
2B..BB10 OD=25 |
3 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 96411-13000 |
2B..BB10 OD=30 |
5 | ||
| 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) | ||||
| 96411-13500 |
2B..BB10 OD=35 |
4 | ||
| 11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK) | ||||
| 96411-11400 |
2B..BB10 OD=14 |
2 | ||
| 90330-17041 |
2B..BB10 OD=17 |
3 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90043-45010 |
2B..BB10 L=9,S=7.5 |
4 | ||
| 11432B - PLUG, W/HEAD TAPER SCREW, NO.2 | ||||
| 90345-53001 |
2B..BB10 |
1 | ||
| 90043-44010 |
2B..BB10 L=9,S=9 |
1 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90250-08120 |
2B..BB10 L=18,OD=8,L=18,OD=8 |
4 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90253-15005 |
2B..BB10 L=7,OD=14.5,L=7,OD=14.5 |
2 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-08120 |
2B..BB10 L=18,OD=8,L=18,OD=8 |
2 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-56020 |
2B..BB10 |
1 | ||
| 11452-56040 |
2B..BB10 |
1 | ||
| 11459 - SUPPORT, OIL LEVEL GAGE GUIDE | ||||
| 11459-56040 |
2B..BB10 |
1 | ||
| 11462 - LINER, CYLINDER | ||||
| 11461-57010 |
2B..BB10 |
4 | ||
| 11475 - SHIM, CYLINDER LINER | ||||
| 11476-56020 |
2B..BB10 T=0.10 |
1 | ||
| 11475-56020 |
2B..BB10 T=0.05 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-59075 |
2B..BB10 |
1 | ||
| 12101-59076 |
2B..BB10 |
1 | ||
| 12101-59155 |
2B..BB10 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-25054 |
2B..BB10 25-1.5P |
1 | ||
| 90341-18089 |
2B..BB10 18-1.5P |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-18244 |
2B..BB10 ID=18 |
1 | ||
| 90430-25013 |
2B..BB10 ID=25 |
1 | ||
| 12151 - GASKET, OIL PAN | ||||
| 12151-56020 |
2B..BB10 |
1 | ||
| 12151-56021 |
2B..BB10 |
1 | ||
| 12151-56030 |
2B..BB10 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-57010 |
2B..BB10 |
1 | ||
| Common parts | ||||
| 90041-16123 | ||||
| 90041-79052 | ||||
| 91611-60818 | ||||
| Linked diagrams | ||||
| 1302 | ||||
(8008- )2B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11251 - COVER, VALVE PUSH ROD | ||||
| 11203-56030 |
2B..BB10 |
1 | ||
| 11203-56020 |
2B..BB10 |
1 | ||
| 11253 - GASKET, VALVE PUSH ROD COVER | ||||
| 11253-56010 |
2B..BB10 |
1 | ||
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-59055 |
2B..BB10 |
1 | ||
| 11401-59135 |
2B..BB10 |
1 | ||
| 11401-59095 |
2B..BB10 |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 96431-03833 |
2B..BB10 |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 96431-23814 |
2B..BB10 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02045 |
2B..BB10 *12-1.25PX75-22 |
10 | ||
| 90101-13001 |
2B..BB10 *13-1.5PX78.5-20 |
10 | ||
| 11416A - PIN, RING(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90253-18002 |
2B..BB10 L=17.5,OD=10 |
10 | ||
| 90253-15005 |
2B..BB10 L=7,OD=14.5 |
10 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 90331-51032 |
2B..BB10 OD=51 |
2 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-12800 |
2B..BB10 OD=28 |
4 | ||
| 96411-12500 |
2B..BB10 OD=25 |
3 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 96411-13000 |
2B..BB10 OD=30 |
5 | ||
| 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) | ||||
| 96411-13500 |
2B..BB10 OD=35 |
4 | ||
| 11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK) | ||||
| 96411-11400 |
2B..BB10 OD=14 |
2 | ||
| 90330-17041 |
2B..BB10 OD=17 |
3 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90043-45010 |
2B..BB10 L=9,S=7.5 |
4 | ||
| 11432B - PLUG, W/HEAD TAPER SCREW, NO.2 | ||||
| 90345-53001 |
2B..BB10 |
1 | ||
| 90043-44010 |
2B..BB10 L=9,S=9 |
1 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90250-08120 |
2B..BB10 L=18,OD=8,L=18,OD=8 |
4 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90253-15005 |
2B..BB10 L=7,OD=14.5,L=7,OD=14.5 |
2 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-08120 |
2B..BB10 L=18,OD=8,L=18,OD=8 |
2 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-56020 |
2B..BB10 |
1 | ||
| 11452-56040 |
2B..BB10 |
1 | ||
| 11459 - SUPPORT, OIL LEVEL GAGE GUIDE | ||||
| 11459-56040 |
2B..BB10 |
1 | ||
| 11462 - LINER, CYLINDER | ||||
| 11461-57010 |
2B..BB10 |
4 | ||
| 11475 - SHIM, CYLINDER LINER | ||||
| 11476-56020 |
2B..BB10 T=0.10 |
1 | ||
| 11475-56020 |
2B..BB10 T=0.05 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-59075 |
2B..BB10 |
1 | ||
| 12101-59076 |
2B..BB10 |
1 | ||
| 12101-59155 |
2B..BB10 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-25054 |
2B..BB10 25-1.5P |
1 | ||
| 90341-18089 |
2B..BB10 18-1.5P |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-18244 |
2B..BB10 ID=18 |
1 | ||
| 90430-25013 |
2B..BB10 ID=25 |
1 | ||
| 12151 - GASKET, OIL PAN | ||||
| 12151-56020 |
2B..BB10 |
1 | ||
| 12151-56021 |
2B..BB10 |
1 | ||
| 12151-56030 |
2B..BB10 |
1 | ||
| 13613C - NOZZLE, OIL | ||||
| 90915-01015 |
2B..BB10 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-57010 |
2B..BB10 |
1 | ||
| Common parts | ||||
| 90179-08123 | ||||
| 91611-60816 | ||||
| 91615-40820 | ||||
| 92122-60814 | ||||
| 92122-60816 | ||||
| 94110-40800 | ||||
| Linked diagrams | ||||
| 1301 | ||||
| 1302 | ||||
