BB10R-MDZER (1979)
Toyota Coaster

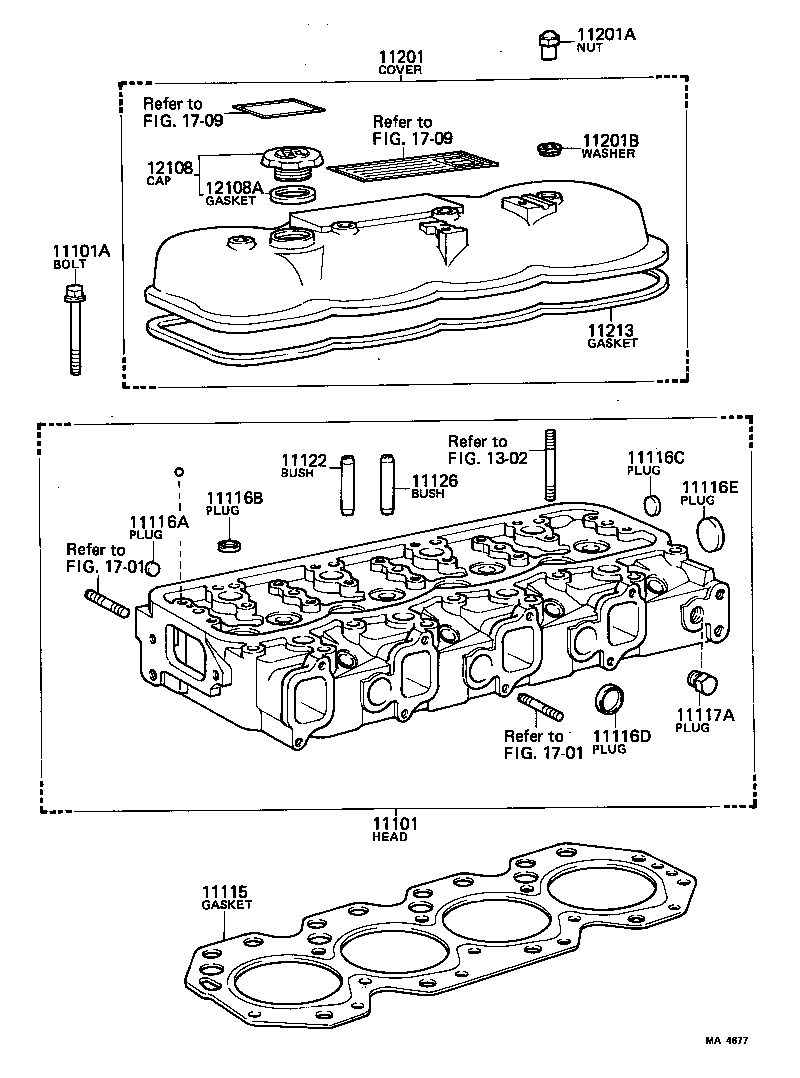

(7708-8008)2B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-59105 |
2B..BB10 |
1 | ||
| 11101-59106 |
2B..BB10 |
1 | ||
| 11101-59045 |
2B..BB10 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02046 |
2B..BB10 *12-1.25PX119-25 |
18 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-56010 |
2B..BB10 |
1 | ||
| 11115-56020 |
2B..BB10 |
1 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-11200 |
2B..BB10 OD=12 |
4 | ||
| 90331-11001 |
2B..BB10 OD=10.5 |
4 | ||
| 11116B - PLUG, TIGHT, NO.2 | ||||
| 96411-12500 |
2B..BB10 OD=25 |
4 | ||
| 11116C - PLUG, TIGHT, NO.3 | ||||
| 90331-21039 |
2B..BB10 OD=21 |
5 | ||
| 11116C - PLUG, TIGHT, NO.3 | ||||
| 90331-21039 |
2B..BB10 OD=21 |
5 | ||
| 11116D - PLUG, TIGHT, NO.4 | ||||
| 96411-12800 |
2B..BB10 OD=28 |
3 | ||
| 11116E - PLUG, TIGHT, NO.5 | ||||
| 90331-40024 |
2B..BB10 OD=40 |
1 | ||
| 11117A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-54021 |
2B..BB10 |
1 | ||
| 90345-54005 |
2B..BB10 |
1 | ||
| 11117B - PLUG, W/HEAD TAPER SCREW, NO.2 | ||||
| 90345-54021 |
2B..BB10 W/O HEATER |
1 | ||
| 11118A - PLUG, STRAIGHT, NO.1 | ||||
| 90334-07020 |
2B..BB10 L=3.5,OD=6.7 |
1 | ||
| 90043-34024 |
2B..BB10 L=3.5,OD=6.7 |
1 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-56020 |
2B..BB10 STD |
4 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11122-56020 |
2B..BB10 STD |
4 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11211-59025 |
2B..BB10 |
1 | ||
| 11211-59045 |
2B..BB10 |
1 | ||
| 11201A - NUT, CAP(FOR CYLINDER HEAD COVER) | ||||
| 11295-46010 |
2B..BB10 |
4 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-12001 |
2B..BB10 |
4 | ||
| 90210-12002 |
2B..BB10 |
4 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-56010 |
2B..BB10 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12181-31020 |
2B..BB10 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12181-31020 |
2B..BB10 |
1 | ||
| Common parts | ||||
| 94611-11300 | ||||
| Linked diagrams | ||||
| 1302 | ||||
| 1701 | ||||
| 1709 | ||||

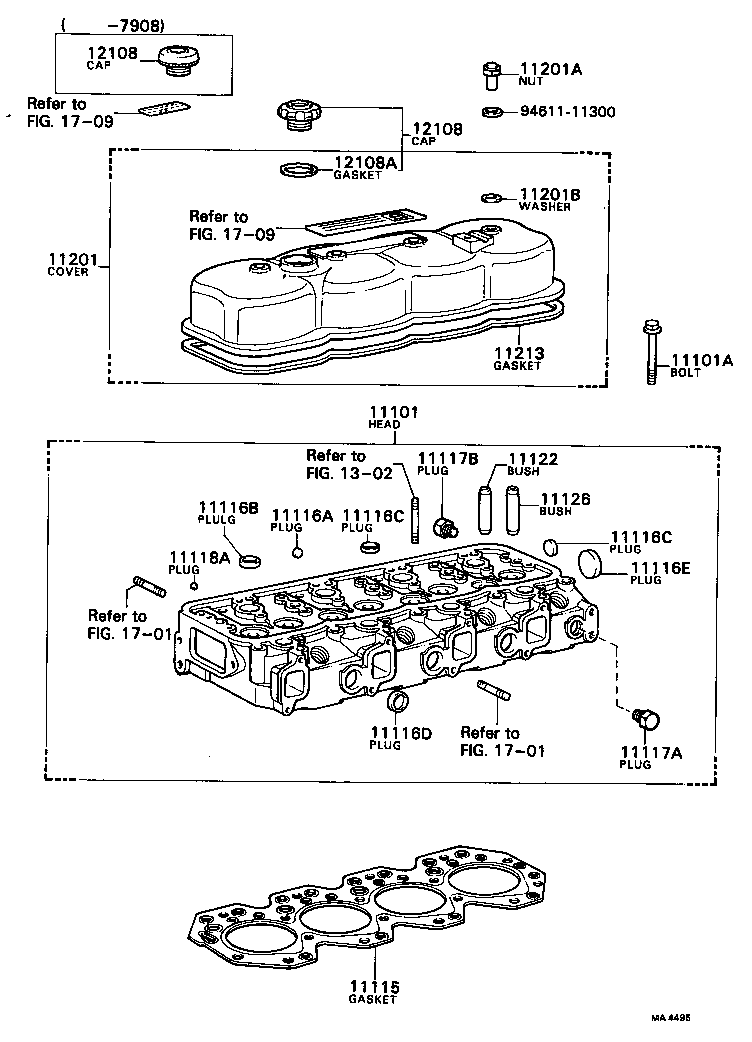

(8008- )2B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-59105 |
2B..BB10 |
1 | ||
| 11101-59106 |
2B..BB10 |
1 | ||
| 11101-59045 |
2B..BB10 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02046 |
2B..BB10 *12-1.25PX119-25 |
18 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-56010 |
2B..BB10 |
1 | ||
| 11115-56020 |
2B..BB10 |
1 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-11200 |
2B..BB10 OD=12 |
4 | ||
| 90331-11001 |
2B..BB10 OD=10.5 |
4 | ||
| 11116B - PLUG, TIGHT, NO.2 | ||||
| 96411-12500 |
2B..BB10 OD=25 |
4 | ||
| 11116C - PLUG, TIGHT, NO.3 | ||||
| 90331-21039 |
2B..BB10 OD=21 |
5 | ||
| 11116D - PLUG, TIGHT, NO.4 | ||||
| 96411-12800 |
2B..BB10 OD=28 |
3 | ||
| 11116E - PLUG, TIGHT, NO.5 | ||||
| 90331-40024 |
2B..BB10 OD=40 |
1 | ||
| 11117A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-54021 |
2B..BB10 |
1 | ||
| 90345-54005 |
2B..BB10 |
1 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-56020 |
2B..BB10 STD |
4 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11122-56020 |
2B..BB10 STD |
4 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11211-59025 |
2B..BB10 |
1 | ||
| 11211-59045 |
2B..BB10 |
1 | ||
| 11201A - NUT, CAP(FOR CYLINDER HEAD COVER) | ||||
| 11295-46010 |
2B..BB10 |
4 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-12001 |
2B..BB10 |
4 | ||
| 90210-12002 |
2B..BB10 |
4 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-56010 |
2B..BB10 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12181-31020 |
2B..BB10 |
1 | ||
| Linked diagrams | ||||
| 1302 | ||||
| 1701 | ||||
| 1709 | ||||
