BB10L-QRZ (1977)

Toyota Coaster

Production Aug 1977 - Nov 1979
Engine 2B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708-8008)2B..DLX,STD

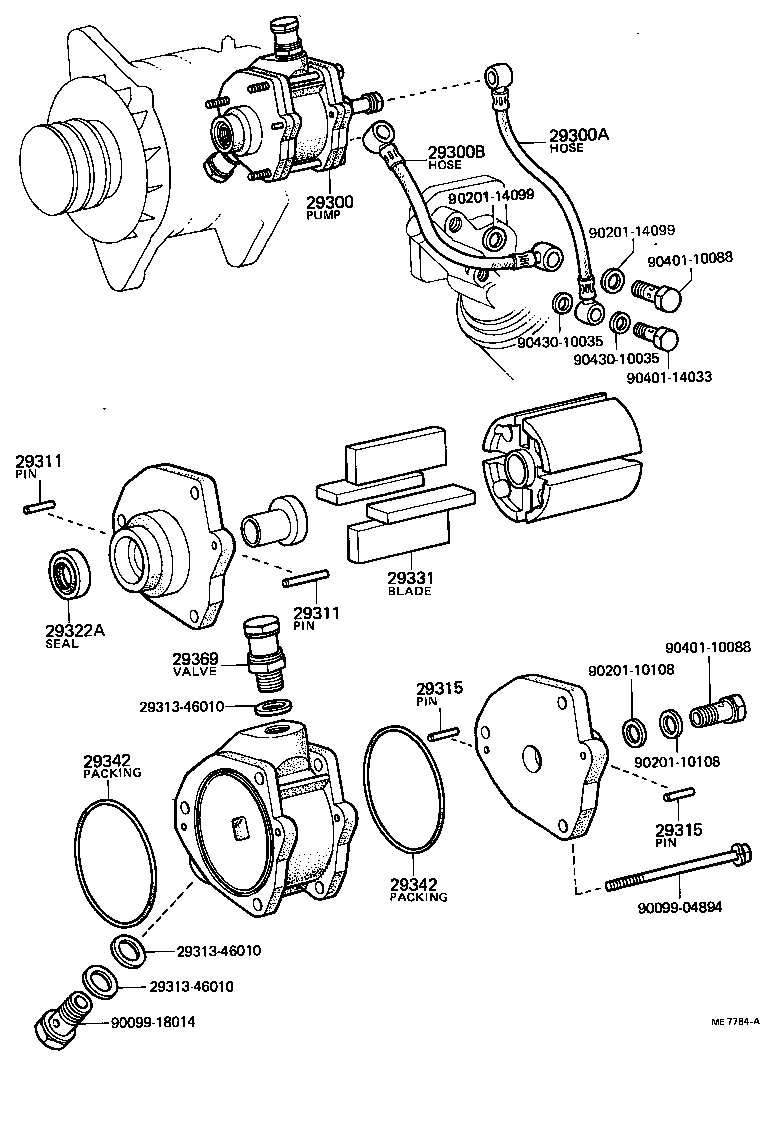

Click highlighted areas on diagram

diagram 29300 29300A 29300B 29311 29311 2931346010 2931346010 2931346010 29315 29315 29322A 29331 29342 29342 29369 9009904894 9009918014 9020110108 9020110108 9020114099 9020114099 9040110088 9040110088 9040114033 9043010035 9043010035
Part # Description Qty Price
29300 - PUMP ASSY, VACUUM
29300-56020

2B..BB10..DLX,STD

12V

 1
29300A - HOSE, VACUUM PUMP OIL INLET
90923-02033

2B..BB10..DLX,STD

 1
29300B - HOSE, VACUUM PUMP OIL OUTLET
90923-02054

2B..BB10..DLX,STD

12V

 1
29311 - PIN, VACUUM PUMP DOWEL, NO.1
90099-08082

2B..BB10

 2
29311 - PIN, VACUUM PUMP DOWEL, NO.1
90099-08082

2B..BB10

 2
29315 - PIN, VACUUM PUMP DOWEL, NO.2
90099-08082

2B..BB10

 2
29315 - PIN, VACUUM PUMP DOWEL, NO.2
90099-08082

2B..BB10

 2
29322A - SEAL, VACUUM PUMP OIL
90099-15017

2B..BB10

 1
29342 - PACKING, VACUUM PUMP
96740-02063

2B..BB10..DLX,STD

 2
29342 - PACKING, VACUUM PUMP
96740-02063

2B..BB10..DLX,STD

 2
29369 - VALVE SUB-ASSY, CHECK
29369-56020

2B..BB10..DLX,STD

12V

 1
Common parts
29313-46010
90099-04894
90099-18014
90201-10108
90201-14099
90401-10088
90401-14033
90430-10035
