ZZT231R-BLPGFQ (1999)
Toyota Celica
Production
Aug 1999
-
Sep 2005
Engine
2ZZGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9908- )

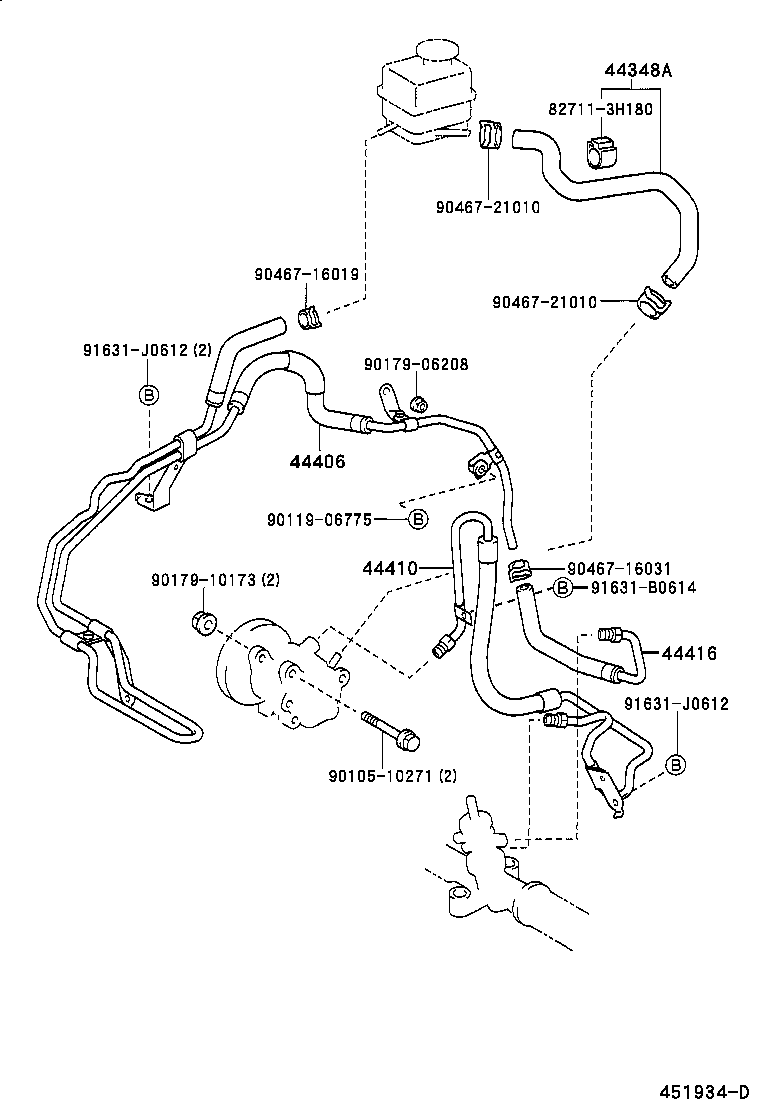

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-20610 |
ZZT231 |
1 | ||
| 44348-20610 |
ZZT231 |
1 | ||
| 44406 - TUBE SUB-ASSY, RETURN | ||||
| 44406-20810 |
ZZT231 |
1 | ||
| 44406-20810 |
ZZT231 |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-2B300 |
ZZT231 |
1 | ||
| 44410-2B300 |
ZZT231 |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-20210 |
ZZT231 |
1 | ||
| 44416-20210 |
ZZT231 |
1 | ||
| Common parts | ||||
| 82711-3H180 | ||||
| 90105-10271 | ||||
| 90119-06775 | ||||
| 90179-06208 | ||||
| 90179-10173 | ||||
| 90467-16019 | ||||
| 90467-16031 | ||||
| 90467-21010 | ||||
| 91631-B0614 | ||||
| 91631-J0612 | ||||
