ZZT231R-BLFGFQ (1999)

Toyota Celica

Production Aug 1999 - Sep 2005
Engine 2ZZGE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9908- )

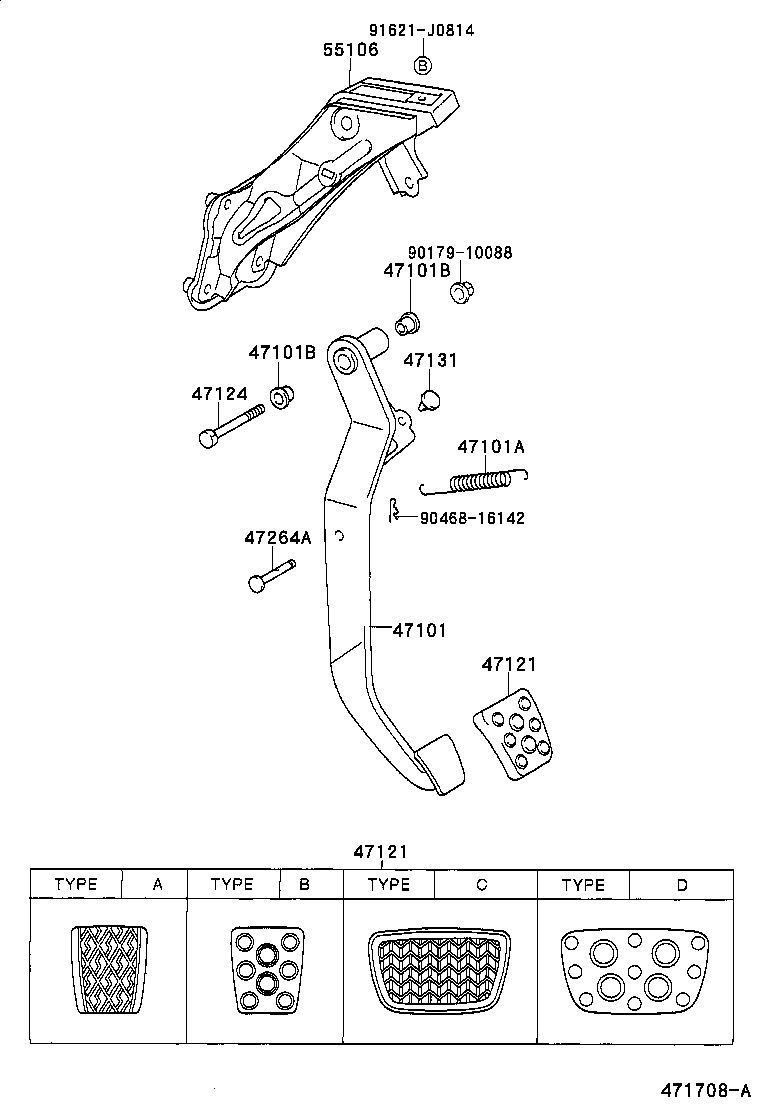

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47121 47121 47124 47131 47264A 55106 9017910088 9046816142 91621J0814
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-20580

ZZT231..6F

 1
47101-20580

ZZT231..6F

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90905-07025

ZZT231

 1
90905-07025

ZZT231

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

ZZT231

 2
90386-13015

ZZT231

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

ZZT231

 2
90386-13015

ZZT231

 2
47121 - PAD, BRAKE PEDAL
31321-53010

ZZT231..6F

TYPE B:REFER TO ILLUSTRATION

 1
31321-53010

ZZT231..6F

TYPE B:REFER TO ILLUSTRATION

 1
31321-12040

ZZT231..6F

TYPE A:REFER TO ILLUSTRATION

 1
31321-12040

ZZT231..6F

TYPE A:REFER TO ILLUSTRATION

 1
47121 - PAD, BRAKE PEDAL
31321-53010

ZZT231..6F

TYPE B:REFER TO ILLUSTRATION

 1
31321-53010

ZZT231..6F

TYPE B:REFER TO ILLUSTRATION

 1
31321-12040

ZZT231..6F

TYPE A:REFER TO ILLUSTRATION

 1
31321-12040

ZZT231..6F

TYPE A:REFER TO ILLUSTRATION

 1
47124 - SHAFT, BRAKE PEDAL
90109-10167

ZZT231

 1
90109-10167

ZZT231

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90541-06036

ZZT231

 1
90541-06036

ZZT231

 1
47264A - PIN(FOR PUSH ROD)
47148-12060

ZZT231

 1
47148-12060

ZZT231

 1
55106 - SUPPORT SUB-ASSY, BRAKE PEDAL
55106-20431

ZZT231

 1
55106-20431

ZZT231

 1
55106-20430

ZZT231

 1
Common parts
90179-10088
90468-16142
91621-J0814
