ZZT231R-BLFGFQ (1999)
Toyota Celica
Production
Aug 1999
-
Sep 2005
Engine
2ZZGE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9908-0509)

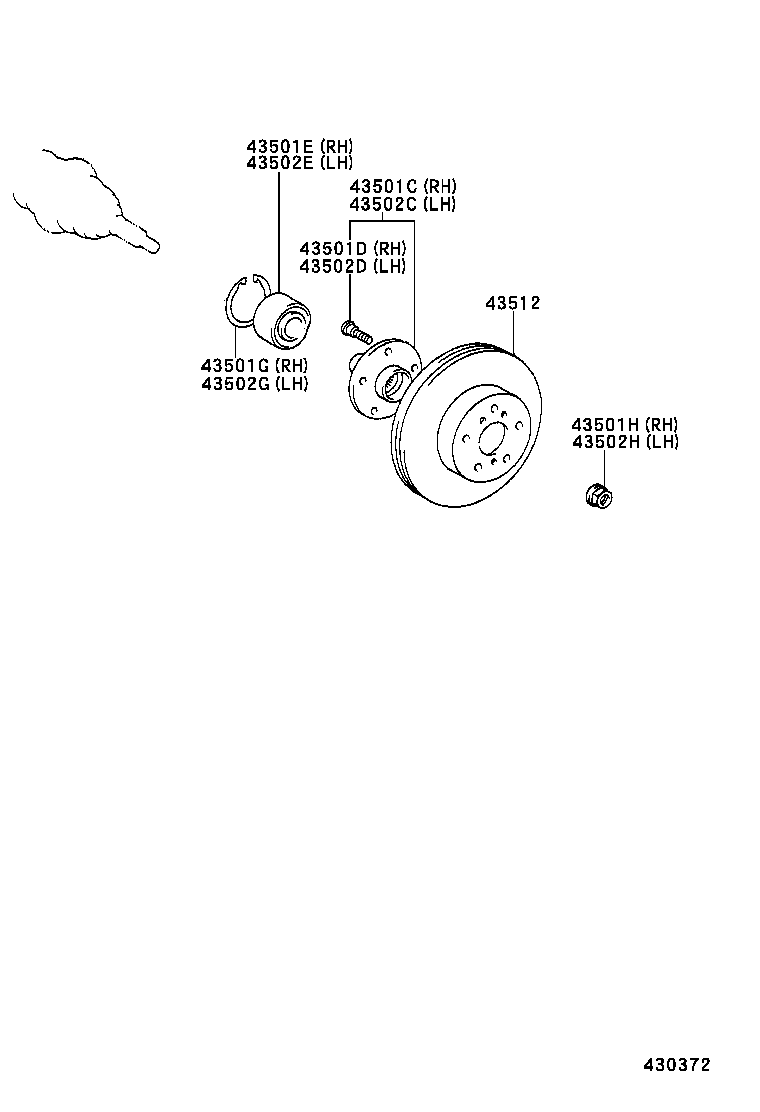

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43501C - HUB SUB-ASSY, FRONT AXLE, RH | ||||
| 43502-32080 |
ZZT231 |
1 | ||
| 43502-32080 |
ZZT231 |
1 | ||
| 43501D - BOLT, HUB (FOR FRONT AXLE RH) | ||||
| 90942-02049 |
ZZT231 |
5 | ||
| 90942-02049 |
ZZT231 |
5 | ||
| 43501E - BEARING (FOR FRONT AXLE HUB RH) | ||||
| 90363-40066 |
ZZT231 |
1 | ||
| 90363-40066 |
ZZT231 |
1 | ||
| 43501G - RING, HOLE SNAP (FOR FRONT AXLE HUB RH) | ||||
| 90521-79002 |
ZZT231 |
1 | ||
| 90521-79002 |
ZZT231 |
1 | ||
| 43501H - NUT (FOR FRONT AXLE SHAFT RH) | ||||
| 90177-22001 |
ZZT231 |
1 | ||
| 90177-22001 |
ZZT231 |
1 | ||
| 43502C - HUB SUB-ASSY, FRONT AXLE, LH | ||||
| 43502-32080 |
ZZT231 |
1 | ||
| 43502-32080 |
ZZT231 |
1 | ||
| 43502D - BOLT, HUB (FOR FRONT AXLE LH) | ||||
| 90942-02049 |
ZZT231 |
5 | ||
| 90942-02049 |
ZZT231 |
5 | ||
| 43502E - BEARING (FOR FRONT AXLE HUB LH) | ||||
| 90363-40066 |
ZZT231 |
1 | ||
| 90363-40066 |
ZZT231 |
1 | ||
| 43502G - RING, HOLE SNAP (FOR FRONT AXLE HUB LH) | ||||
| 90521-79002 |
ZZT231 |
1 | ||
| 90521-79002 |
ZZT231 |
1 | ||
| 43502H - NUT (FOR FRONT AXLE SHAFT LH) | ||||
| 90177-22001 |
ZZT231 |
1 | ||
| 90177-22001 |
ZZT231 |
1 | ||
| 43512 - DISC, FRONT | ||||
| 43512-63010 |
ZZT231 |
2 | ||
| 43512-20711 |
ZZT231 |
2 | ||
| 43512-20710 |
ZZT231 |
2 | ||
| 43512-20740 |
ZZT231 |
2 | ||
