ZZT231R-BLFGFQ (1999)
Toyota Celica
Production
Aug 1999
-
Sep 2005
Engine
2ZZGE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9908-0509)

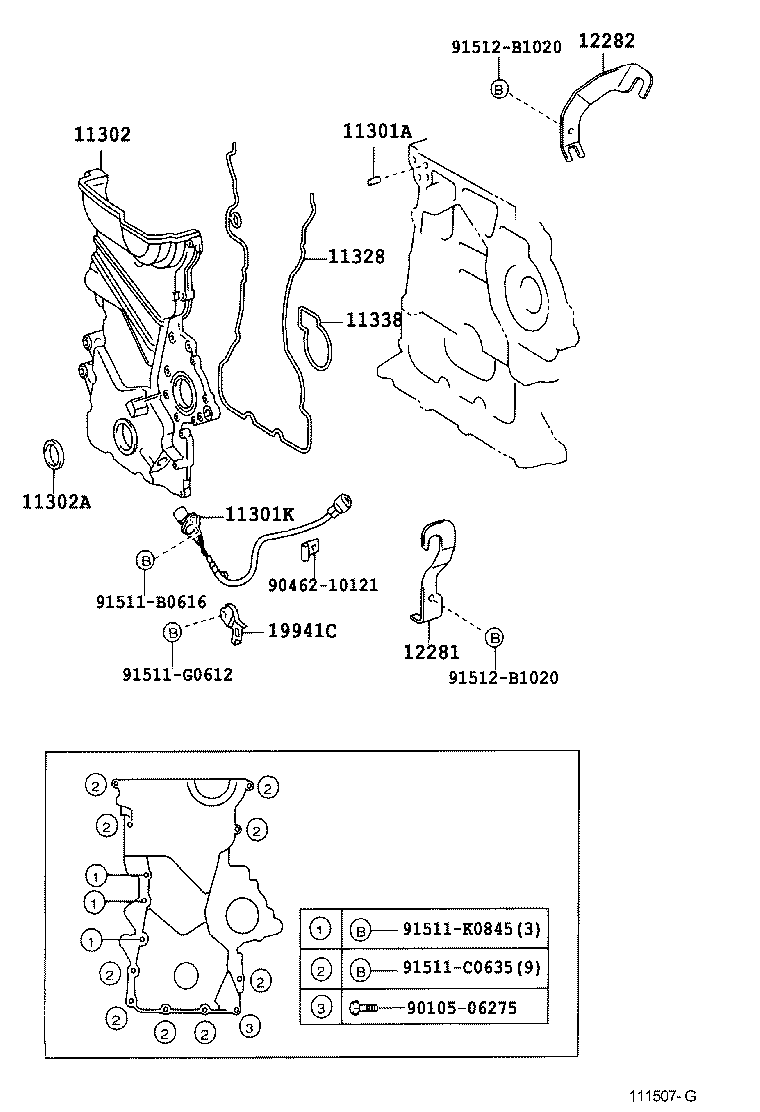

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11301A - PIN, STRAIGHT(FOR TIMING GEAR CASE) | ||||
| 90250-08074 |
2ZZGE..ZZT231 L=15,OD=8 |
1 | ||
| 90250-08074 |
2ZZGE..ZZT231 L=15,OD=8 |
1 | ||
| 11301K - SENSOR, CRANK POSITION | ||||
| 90919-05048 |
2ZZGE..ZZT231 |
1 | ||
| 90919-05048 |
2ZZGE..ZZT231 |
1 | ||
| 11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT | ||||
| 11321-88601 |
2ZZGE..ZZT231 |
1 | ||
| 11321-88600 |
2ZZGE..ZZT231 |
1 | ||
| 11321-88601 |
2ZZGE..ZZT231 |
1 | ||
| 11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER) | ||||
| 90311-38059 |
2ZZGE..ZZT231 |
1 | ||
| 90311-38059 |
2ZZGE..ZZT231 |
1 | ||
| 90311-38089 |
2ZZGE..ZZT231 |
1 | ||
| 11328 - GASKET, TIMING GEAR OR CHAIN COVER | ||||
| 11328-88600 |
2ZZGE..ZZT231 |
1 | ||
| 11328-88600 |
2ZZGE..ZZT231 |
1 | ||
| 11338 - GASKET, TIMING CHAIN COVER, NO.2 | ||||
| 11329-88600 |
2ZZGE..ZZT231 |
1 | ||
| 11329-88600 |
2ZZGE..ZZT231 |
1 | ||
| 12281 - HANGER, ENGINE, NO.1 | ||||
| 12281-88600 |
2ZZGE..ZZT231 |
1 | ||
| 12281-88600 |
2ZZGE..ZZT231 |
1 | ||
| 12282 - HANGER, ENGINE, NO.2 | ||||
| 12282-88600 |
2ZZGE..ZZT231 |
1 | ||
| 12282-88600 |
2ZZGE..ZZT231 |
1 | ||
| 19941C - CLAMP, CORD(FOR CRANK POSITION SENSOR) | ||||
| 19941-22010 |
2ZZGE..ZZT231 |
1 | ||
| 19941-22010 |
2ZZGE..ZZT231 |
1 | ||
| Common parts | ||||
| 90105-06275 | ||||
| 90462-10121 | ||||
| 91511-B0616 | ||||
| 91511-C0635 | ||||
| 91511-G0612 | ||||
| 91511-K0845 | ||||
| 91512-B1020 | ||||
