TA60L-BLMSS (1981)

Toyota Celica

Production Aug 1981 - Aug 1983
Engine 2T
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8308)SCB

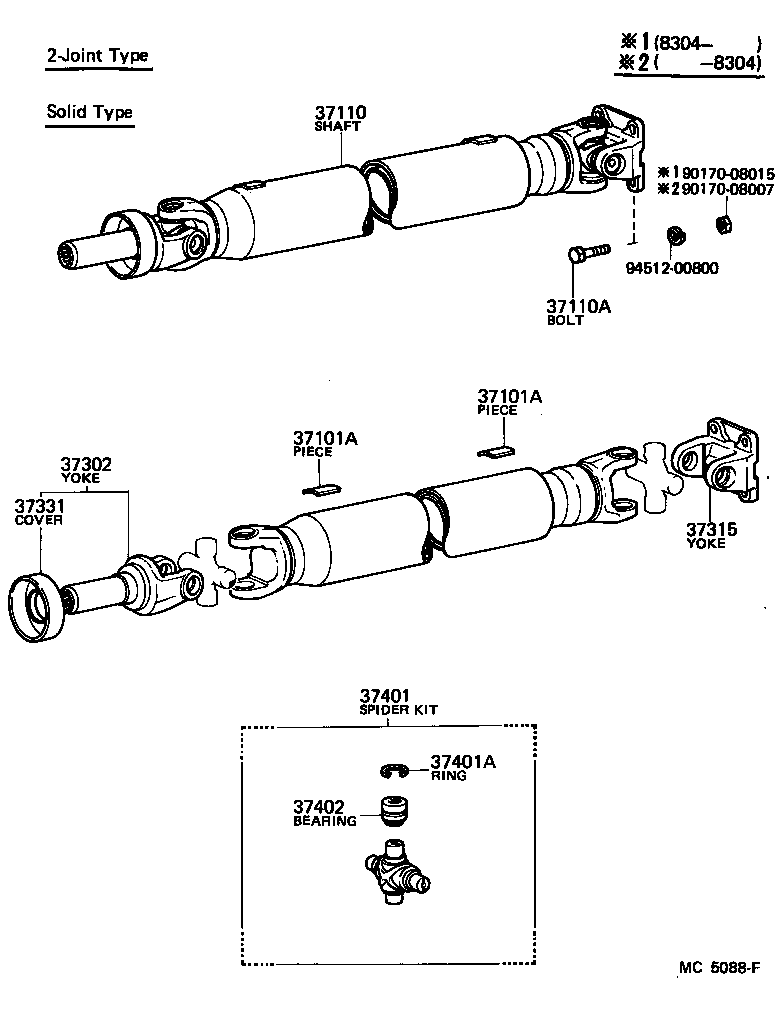

Click highlighted areas on diagram

diagram 37101A 37101A 37110 37110A 37302 37315 37331 37401 37401A 37402 9017008007 9017008015 9451200800
Part # Description Qty Price
37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
90937-01132

AA63,MA61,RA6#,SA63,TA60

10G,L=20.7,10G

 2
90937-01136

AA63,MA61,RA6#,SA63,TA60

20G,L=41.4,20G

 2
90937-01148

AA63,MA61,RA6#,SA63,TA60

4G,T=2.0,4G

 2
90937-01147

AA63,MA61,RA6#,SA63,TA60

2G,T=2.0,2G

 2
90937-01140

AA63,MA61,RA6#,SA63,TA60

30G,L=62.2,30G

 2
90937-01151

AA63,MA61,RA6#,SA63,TA60

12G,L=24.9,12G

 2
90937-01152

AA63,MA61,RA6#,SA63,TA60

14G,L=29.0,14G

 2
90937-01156

AA63,MA61,RA6#,SA63,TA60

24G,L=49.7,24G

 2
90937-01154

AA63,MA61,RA6#,SA63,TA60

18G,L=37.3,18G

 2
90937-01153

AA63,MA61,RA6#,SA63,TA60

16G,L=33.2,16G

 2
90937-01158

AA63,MA61,RA6#,SA63,TA60

28G,L=58.1,28G

 2
90937-01150

AA63,MA61,RA6#,SA63,TA60

8G,L=16.6,8G

 2
90937-01157

AA63,MA61,RA6#,SA63,TA60

26G,L=53.9,26G

 2
90937-01149

AA63,MA61,RA6#,SA63,TA60

6G,L=12.4,6G

 2
90937-01155

AA63,MA61,RA6#,SA63,TA60

22G,L=45.6,22G

 2
37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
90937-01132

AA63,MA61,RA6#,SA63,TA60

10G,L=20.7,10G

 2
90937-01136

AA63,MA61,RA6#,SA63,TA60

20G,L=41.4,20G

 2
90937-01148

AA63,MA61,RA6#,SA63,TA60

4G,T=2.0,4G

 2
90937-01147

AA63,MA61,RA6#,SA63,TA60

2G,T=2.0,2G

 2
90937-01140

AA63,MA61,RA6#,SA63,TA60

30G,L=62.2,30G

 2
90937-01151

AA63,MA61,RA6#,SA63,TA60

12G,L=24.9,12G

 2
90937-01152

AA63,MA61,RA6#,SA63,TA60

14G,L=29.0,14G

 2
90937-01156

AA63,MA61,RA6#,SA63,TA60

24G,L=49.7,24G

 2
90937-01154

AA63,MA61,RA6#,SA63,TA60

18G,L=37.3,18G

 2
90937-01153

AA63,MA61,RA6#,SA63,TA60

16G,L=33.2,16G

 2
90937-01158

AA63,MA61,RA6#,SA63,TA60

28G,L=58.1,28G

 2
90937-01150

AA63,MA61,RA6#,SA63,TA60

8G,L=16.6,8G

 2
90937-01157

AA63,MA61,RA6#,SA63,TA60

26G,L=53.9,26G

 2
90937-01149

AA63,MA61,RA6#,SA63,TA60

6G,L=12.4,6G

 2
90937-01155

AA63,MA61,RA6#,SA63,TA60

22G,L=45.6,22G

 2
37110 - SHAFT ASSY, PROPELLER
37110-15030

TA60..5F..SCB

 1
37110A - BOLT (FOR PROPELLER SHAFT)
90101-08062

MA61,RA6#,TA60

13G

 8
37302 - YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE
37302-14030

TA60..5F..SCB

 1
37315 - YOKE, UNIVERSAL JOINT FLANGE
37315-20020

TA60..SCB

 1
37331 - COVER, SLIDING SHAFT DUST
37331-12010

AA63,TA60..5F

 1
37401 - SPIDER KIT, UNIVERSAL JOINT
04371-22010

TA60..SCB

 2
37401A - RING, HOLE SNAP (FOR SPIDER BEARING)
90521-29072

TA60..SCB

T=2.475-2.525,T=2.50

 4
90521-29070

TA60..SCB

T=2.375-2.425,T=2.40

 4
90521-29073

TA60..SCB

T=2.525-2.575,T=2.55

 4
90521-29071

TA60..SCB

T=2.425-2.475,T=2.45

 4
37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER
37402-22020

TA60..SCB

 4
Common parts
90170-08007
90170-08015
94512-00800
