TA60L-BLMSBW (1981)

Toyota Celica

Production Aug 1981 - Jul 1985
Engine 2TB
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8507)SA63,TA60

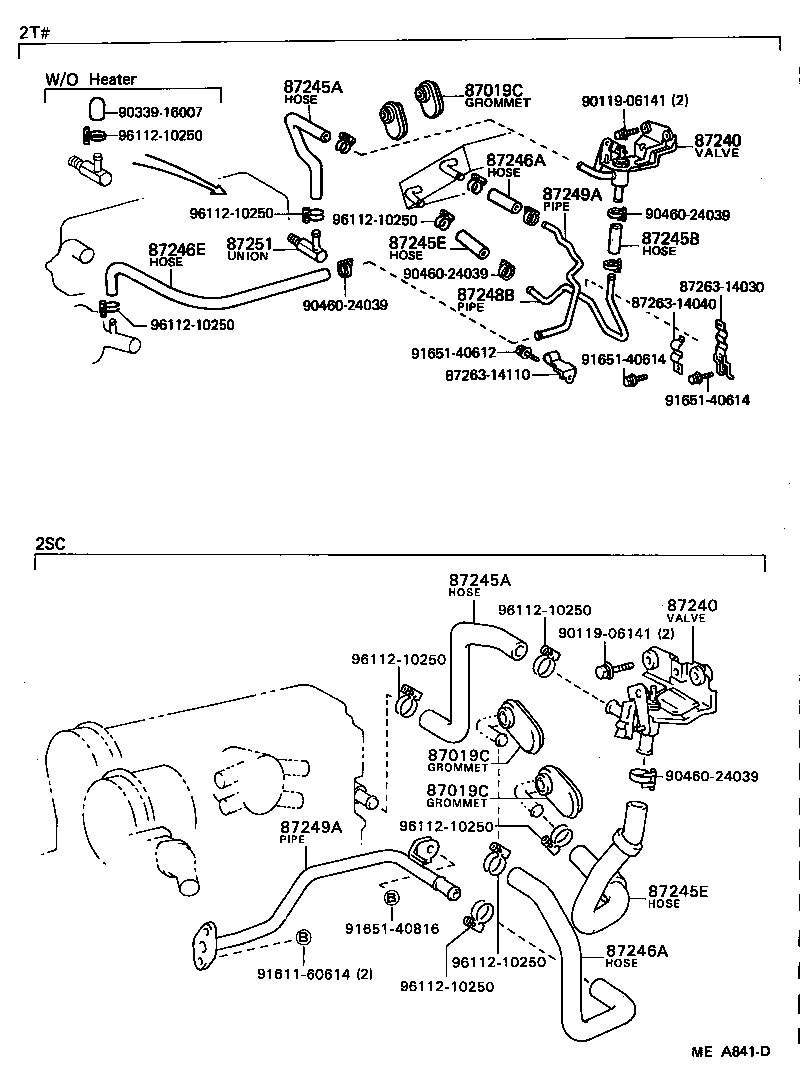

Click highlighted areas on diagram

diagram 87019C 87019C 87019C 87240 87240 87245A 87245A 87245B 87245E 87245E 87246A 87246A 87246E 87248B 87249A 87249A 87251 8726314030 8726314040 8726314110 9011906141 9011906141 9033916007 9046024039 9046024039 9046024039 9046024039 9161160614 9165140612 9165140614 9165140614 9165140816 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-01015

AA63,MA61,RA6#,SA63,TA60

 2
87019C - GROMMET, HEATER HOSE
90480-01015

AA63,MA61,RA6#,SA63,TA60

 2
87019C - GROMMET, HEATER HOSE
90480-01015

AA63,MA61,RA6#,SA63,TA60

 2
87240 - VALVE ASSY, HEATER WATER
87240-14120

AA63,RA60,61,63,TA60..LHD

 1
87240 - VALVE ASSY, HEATER WATER
87240-14120

AA63,RA60,61,63,TA60..LHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-14870

RA63,TA60..LHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-14870

RA63,TA60..LHD

 1
87245B - HOSE, HEATER WATER, INLET B
99552-30100

RA6#,TA60..LHD

*H,L=55

 1
99556-30055

AA63,RA60,61,63,TA60..LHD

*H,L=55

 1
87245E - HOSE, HEATER WATER, INLET E
87245-1B060

AA63,RA63,TA60..LHD

 1
87245E - HOSE, HEATER WATER, INLET E
87245-1B060

AA63,RA63,TA60..LHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
99556-30055

RA61,TA60..LHD

*H,L=55

 1
99552-30100

RA6#,TA60..LHD

*H,L=55

 1
99552-30100

TA60

*H,L=55

 1
87246A - HOSE, HEATER WATER, OUTLET A
99556-30055

RA61,TA60..LHD

*H,L=55

 1
99552-30100

RA6#,TA60..LHD

*H,L=55

 1
99552-30100

TA60

*H,L=55

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-1B050

TA60

 1
87248B - PIPE, HEATER WATER INLET, B
87248-14160

AA63,RA63,TA60..LHD

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-14190

RA63,TA60..LHD

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-14190

RA63,TA60..LHD

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-20100

TA60

 1
Common parts
87263-14030
87263-14040
87263-14110
90119-06141
90339-16007
90460-24039
91611-60614
91651-40612
91651-40614
91651-40816
96112-10250
