TA60L-BLMSBW (1981)

Toyota Celica

Production Aug 1981 - Jul 1985
Engine 2TB
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8308)

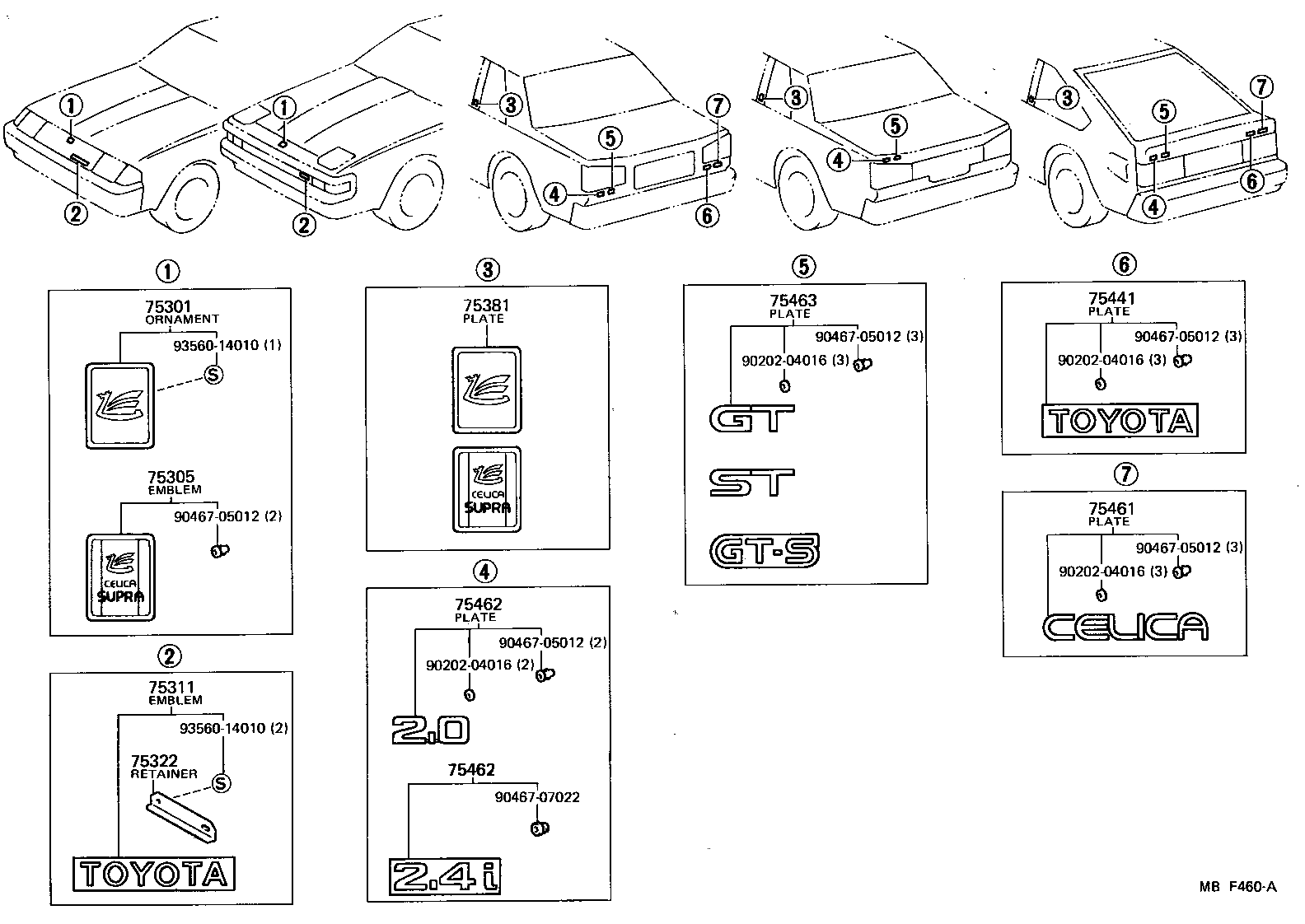

Click highlighted areas on diagram

diagram 75111 75305 75305 75311 75322 75345 75381 75441 75461 75462 75463 75465 9017906007 9020204016 9020204016 9020204016 9020204016 9046705012 9046705012 9046705012 9046705012 9046705012 9165540618 9356014010
Part # Description Qty Price
75111 - BRACKET, FRONT LICENSE PLATE
75111-22050

RA61,63,TA60..LHD..EUG

 1
75111-14070

RA61,63,TA60..LHD..EUG

 1
75305 - EMBLEM, HOOD
75303-14020

RA6#,TA60

 1
75305 - EMBLEM, HOOD
75303-14020

RA6#,TA60

 1
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75321-19675

RA6#,TA60

TOYOTA

 1
75321-19795

AA63,RA6#,SA63,TA60

TOYOTA

 1
75322 - RETAINER, RADIATOR GRILLE NAME PLATE
75324-14140

MA61,RA6#,TA60

 1
75345 - PAD, HOOD ORNAMENT, NO.1
75345-14030

RA6#,TA60

 1
75381 - PLATE, QUARTER PANEL OR SIDE PANEL NAME (MODEL MARK)
75381-14130

AA63,RA6#,SA63,TA60

TYPE A

 1
75381-14260

AA63,RA6#,SA63,TA60

TYPE B

 2
75441 - PLATE, REAR NAME, NO.1
75443-14201

RA61..LB..SAA;AA63,RA6#,SA63,TA60..ARL,EUR,GEN

TOYOTA

 1
75443-14201

RA6#,TA60

TOYOTA

 1
75443-14200

RA6#,TA60

TOYOTA

 1
75461 - PLATE, REAR NAME, NO.2 (MODEL MARK)
75441-14171

RA6#,TA60

CELICA

 1
75441-14170

RA6#,TA60

CELICA

 1
75441-14171

RA61..LB..SAA;AA63,RA6#,SA63,TA60..ARL,EUR,GEN

CELICA

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75444-14280

RA60,61,TA60..ST

ST

 1
75444-14281

RA60,61,65,SA63,TA60..ST

ST

 1
Common parts
90179-06007
90202-04016
90467-05012
91655-40618
93560-14010

(8308- )

Click highlighted areas on diagram

diagram 75301 75305 75311 75322 75381 75441 75461 75462 75462 75463 9020204016 9020204016 9020204016 9020204016 9046705012 9046705012 9046705012 9046705012 9046705012 9046707022 9356014010 9356014010
Part # Description Qty Price
75301 - ORNAMENT, RADIATOR GRILLE (OR FRONT PANEL)
75301-19255

AA63,RA6#,SA63,TA60

 1
75305 - EMBLEM, HOOD
75303-14020

RA6#,TA60

 1
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75321-19675

RA6#,TA60

TOYOTA

 1
75321-19795

AA63,RA6#,SA63,TA60

TOYOTA

 1
75322 - RETAINER, RADIATOR GRILLE NAME PLATE
75324-14140

MA61,RA6#,TA60

 1
75381 - PLATE, QUARTER PANEL OR SIDE PANEL NAME (MODEL MARK)
75381-14130

AA63,RA6#,SA63,TA60

TYPE A

 1
75381-14260

AA63,RA6#,SA63,TA60

TYPE B

 2
75441 - PLATE, REAR NAME, NO.1
75443-14201

RA61..LB..SAA;AA63,RA6#,SA63,TA60..ARL,EUR,GEN

TOYOTA

 1
75443-14201

RA6#,TA60

TOYOTA

 1
75443-14200

RA6#,TA60

TOYOTA

 1
75461 - PLATE, REAR NAME, NO.2 (MODEL MARK)
75441-14171

RA6#,TA60

CELICA

 1
75441-14170

RA6#,TA60

CELICA

 1
75441-14171

RA61..LB..SAA;AA63,RA6#,SA63,TA60..ARL,EUR,GEN

CELICA

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75444-14280

RA60,61,TA60..ST

ST

 1
75444-14281

RA60,61,65,SA63,TA60..ST

ST

 1
Common parts
90202-04016
90467-05012
90467-07022
93560-14010
