TA60L-BLMSBW (1981)
Toyota Celica
Production
Aug 1981
-
Jul 1985
Engine
2TB
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8108-8507)RA60,61,TA60
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51237 |
RA60,61;MA61,TA60..LHD |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51237 |
RA60,61;MA61,TA60..LHD |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51237 |
RA60,61;MA61,TA60..LHD |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-20090 |
TA60 |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-20090 |
TA60 |
1 | ||
| 44777 - CONNECTOR, VACUUM HOSE, NO.1 | ||||
| 44777-14050 |
RA63,TA60..LHD |
1 | ||
| 44777 - CONNECTOR, VACUUM HOSE, NO.1 | ||||
| 44777-14050 |
RA63,TA60..LHD |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-14040 |
TA60 |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-14040 |
TA60 |
1 | ||
| 44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE) | ||||
| 90467-16002 |
AA63,MA61,RA60,61,63,TA60..LHD |
2 | ||
| 44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE) | ||||
| 90467-16002 |
AA63,MA61,RA60,61,63,TA60..LHD |
2 | ||
| 44779 - HOSE, UNION TO CONNECTOR | ||||
| 44779-14060 |
TA60 |
1 | ||
| 44779 - HOSE, UNION TO CONNECTOR | ||||
| 44779-14060 |
TA60 |
1 | ||
| 44779A - CLIP(FOR UNION TO CONNECTOR HOSE) | ||||
| 90467-16002 |
AA63,MA61,RA60,61,63,TA60..LHD |
2 | ||
| 44779A - CLIP(FOR UNION TO CONNECTOR HOSE) | ||||
| 90467-16002 |
AA63,MA61,RA60,61,63,TA60..LHD |
2 | ||
| Common parts | ||||
| 91655-60616 | ||||
(8108-8507)TA60

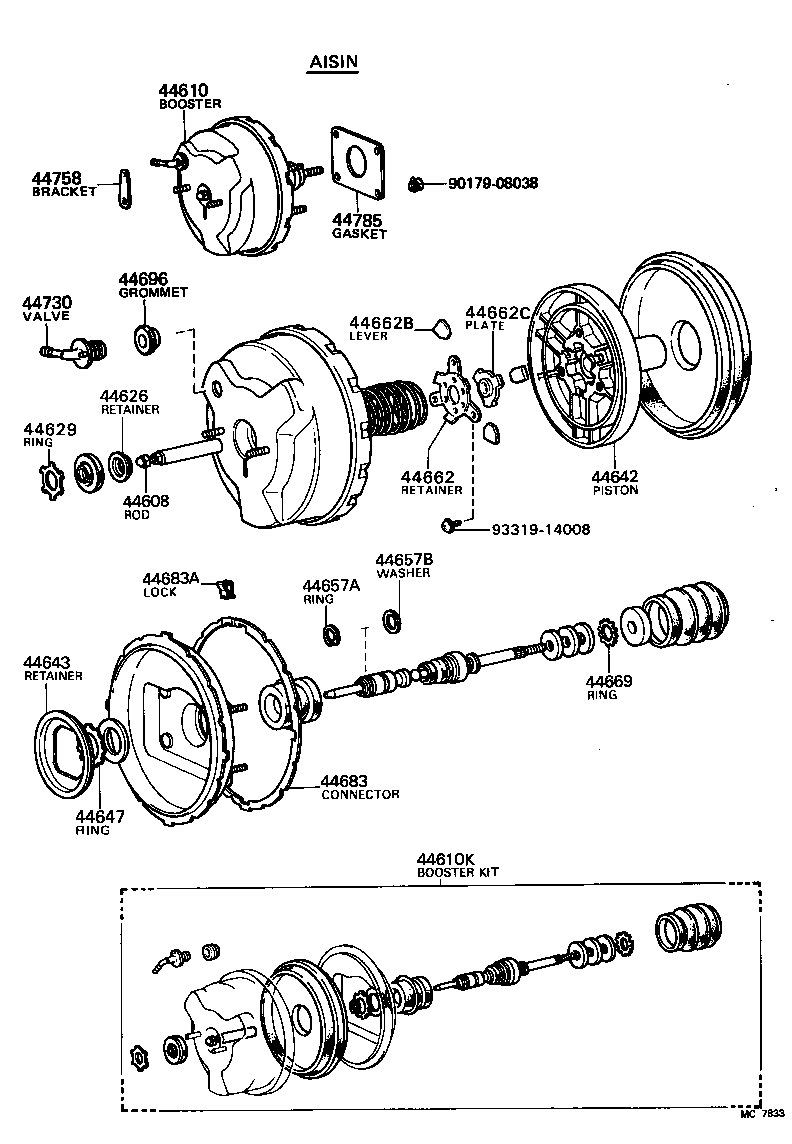

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-35100 |
RA6#,TA60..LHD |
1 | ||
| 44606-35100 |
TA60 |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-14630 |
TA60 |
1 | ||
| 44610K - BOOSTER KIT, BRAKE | ||||
| 04443-22190 |
TA60 |
1 | ||
| 44626 - RETAINER, BOOSTER ROD CUP | ||||
| 44626-60010 |
TA60 |
1 | ||
| 44626-60010 |
RA6#,TA60..LHD |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-60010 |
TA60 |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-14170 |
TA60 |
1 | ||
| 44643 - RETAINER, DIAPHRAGM | ||||
| 44643-60010 |
RA6#,TA60..LHD |
1 | ||
| 44643-60010 |
TA60 |
1 | ||
| 44647 - RING, CIRCULAR INTERNAL(FOR BOOSTER BODY SEAL STOPPER) | ||||
| 44629-30090 |
RA6#,TA60..LHD |
1 | ||
| 44629-30090 |
TA60 |
1 | ||
| 44657A - RING, SNAP(FOR BOOSTER AIR VALVE STOPPER) | ||||
| 96150-01600 |
TA60 |
1 | ||
| 96150-01600 |
RA6#,TA60..LHD |
1 | ||
| 44657B - WASHER, PLATE(FOR BOOSTER AIR VALVE STOPPER) | ||||
| 44645-20100 |
TA60 |
1 | ||
| 44662 - RETAINER, REACTION, NO.1 | ||||
| 44662-35100 |
TA60 |
1 | ||
| 44662B - LEVER, REACTION | ||||
| 44661-35100 |
TA60 |
1 | ||
| 44661-35100 |
RA6#,TA60..LHD |
1 | ||
| 44662C - PLATE, REACTION, NO.1 | ||||
| 44607-22330 |
TA60 |
1 | ||
| 44669 - RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER | ||||
| 44669-60010 |
RA60,61,63,TA60..LHD |
1 | ||
| 44683 - CONNECTOR, BOOSTER BODY | ||||
| 44682-20150 |
TA60 |
1 | ||
| 44683A - LOCK, CONNECTOR | ||||
| 44683-20100 |
TA60 |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
AA63,MA61,RA60,61,63,TA60..LHD AISIN |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-20060 |
AA63,MA61,RA60,61,63,TA60..LHD AISIN |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-20090 |
TA60 |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-20030 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 93319-14008 | ||||
