TA60L-BLMSBW (1981)

Toyota Celica

Production Aug 1981 - Jul 1985
Engine 2TB
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )

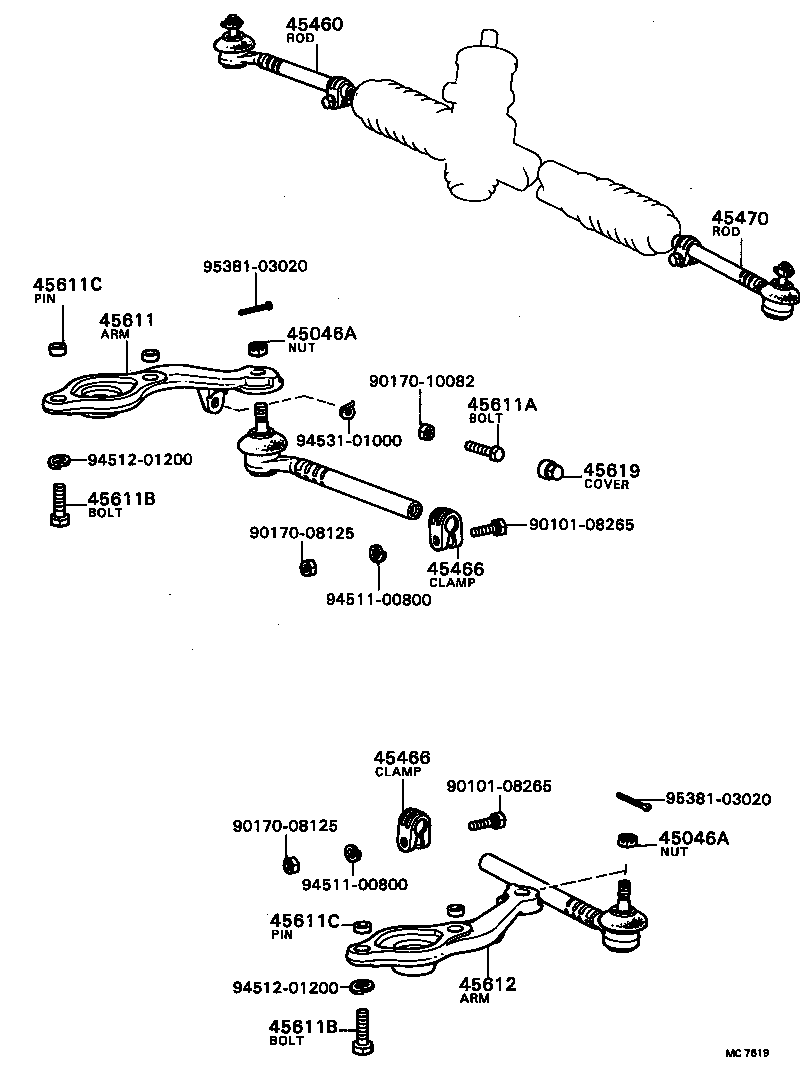

Click highlighted areas on diagram

diagram 45046A 45046A 45460 45466 45466 45470 45611 45611A 45611B 45611B 45611C 45611C 45612 45619 9010108265 9010108265 9017008125 9017008125 9017010082 9451100800 9451100800 9451201200 9451201200 9453101000 9538103020 9538103020
Part # Description Qty Price
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

AA63,MA61,RA6#,SA63,TA60

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

AA63,MA61,RA6#,SA63,TA60

 2
45460 - ROD ASSY, TIE, RH
45460-19165

AA63,TA60

 1
45466 - CLAMP, TIE ROD END
45466-22010

AA63,MA61,RA6#,SA63,TA60

 2
45466 - CLAMP, TIE ROD END
45466-22010

AA63,MA61,RA6#,SA63,TA60

 2
45470 - ROD ASSY, TIE, LH
45460-19165

AA63,TA60

 1
45611 - ARM, STEERING KNUCKLE, RH
45611-14040

TA60

 1
45611A - BOLT, KNUCKLE STOPPER
90106-10002

AA63,RA6#,SA63,TA60

L=31

 2
90106-10032

AA63,MA61,RA6#,SA63,TA60

L=34

 2
45611B - BOLT, HEXAGON(FOR STEERING KNUCKLE TO SHOCK ABSORBER)
90101-12295

AA63,RA6#,SA63,TA60

L=35

 4
90101-12491

AA63,MA61,RA6#,SA63,TA60

L=42

 4
90101-12379

AA63,RA6#,SA63,TA60

L=39

 4
45611B - BOLT, HEXAGON(FOR STEERING KNUCKLE TO SHOCK ABSORBER)
90101-12295

AA63,RA6#,SA63,TA60

L=35

 4
90101-12491

AA63,MA61,RA6#,SA63,TA60

L=42

 4
90101-12379

AA63,RA6#,SA63,TA60

L=39

 4
45611C - PIN, STRAIGHT(FOR STEERING KNUCKLE TO SHOCK ABSORBER)
90253-15016

AA63,MA61,RA6#,SA63,TA60

 4
45611C - PIN, STRAIGHT(FOR STEERING KNUCKLE TO SHOCK ABSORBER)
90253-15016

AA63,MA61,RA6#,SA63,TA60

 4
45612 - ARM, STEERING KNUCKLE, LH
45612-14040

TA60

 1
45619 - COVER, KNUCKLE STOPPER
45619-14020

AA63,MA61,RA6#,SA63,TA60

 2
Common parts
90101-08265
90170-08125
90170-10082
94511-00800
94512-01200
94531-01000
95381-03020
