TA60L-BLMSBW (1981)

Toyota Celica

Production Aug 1981 - Jul 1985
Engine 2TB
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8507)2T#

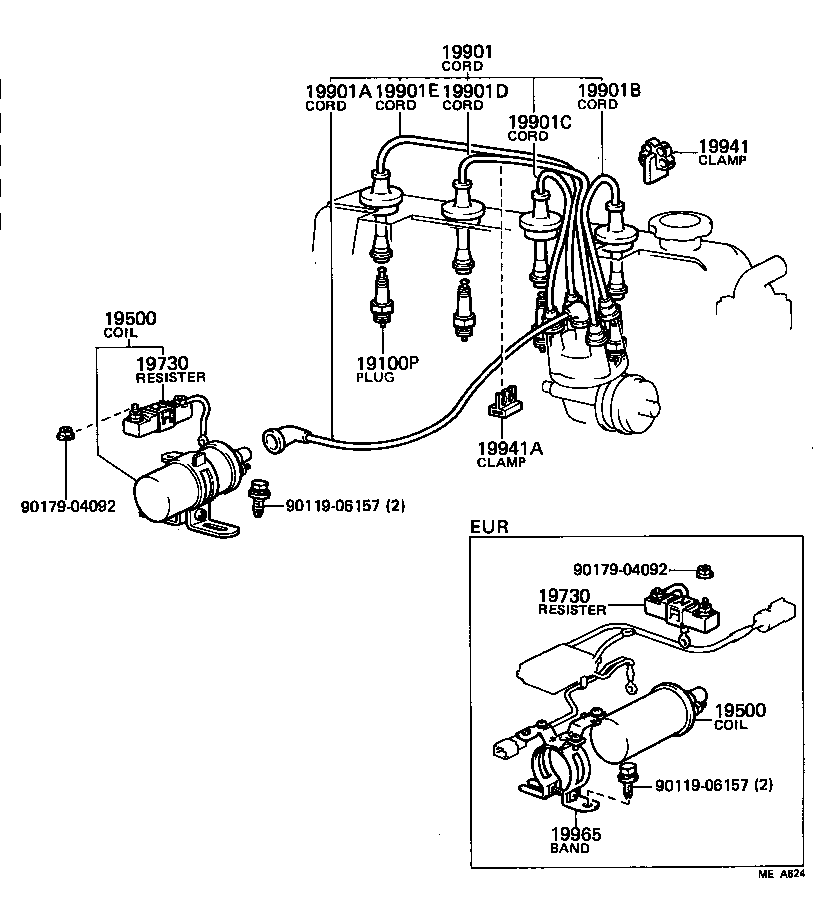

Click highlighted areas on diagram

diagram 19100P 19500 19500 19730 19730 19901 19901A 19901B 19901C 19901D 19901E 19941 19941A 19965 9011906157 9011906157 9017904092 9017904092
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01064

2T#..TA60

W16EXR-U,W16EXR-U

 4
19500 - COIL ASSY, IGNITION
90919-02083

2TB..TA60..EUG

 1
19500 - COIL ASSY, IGNITION
90919-02083

2TB..TA60..EUG

 1
19730 - RESISTOR, IGNITION COIL
90919-04030

2TB..TA60..EUG

 1
19730 - RESISTOR, IGNITION COIL
90919-04030

2TB..TA60..EUG

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21287

2T#..TA60

 1
19901A - CORD, COIL RESISTIVE
90919-13105

2T#..TA60

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12265

2T#..TA60

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12409

2T#..TA60

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12267

2T#..TA60

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12410

2T#..TA60

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
90464-00053

2T..TA60

 1
90464-00002

2TB..TA60

 1
19941A - CLAMP(FOR RESISTIVE CORD)
90464-00001

2T#..TA60

 1
19965 - BAND, IGNITION COIL, NO.1
90919-03077

2TB..TA60..EUG

 1
Common parts
90119-06157
90179-04092
