TA60L-BLHSS (1981)
Toyota Celica
Production
Aug 1981
-
Aug 1982
Engine
2T
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

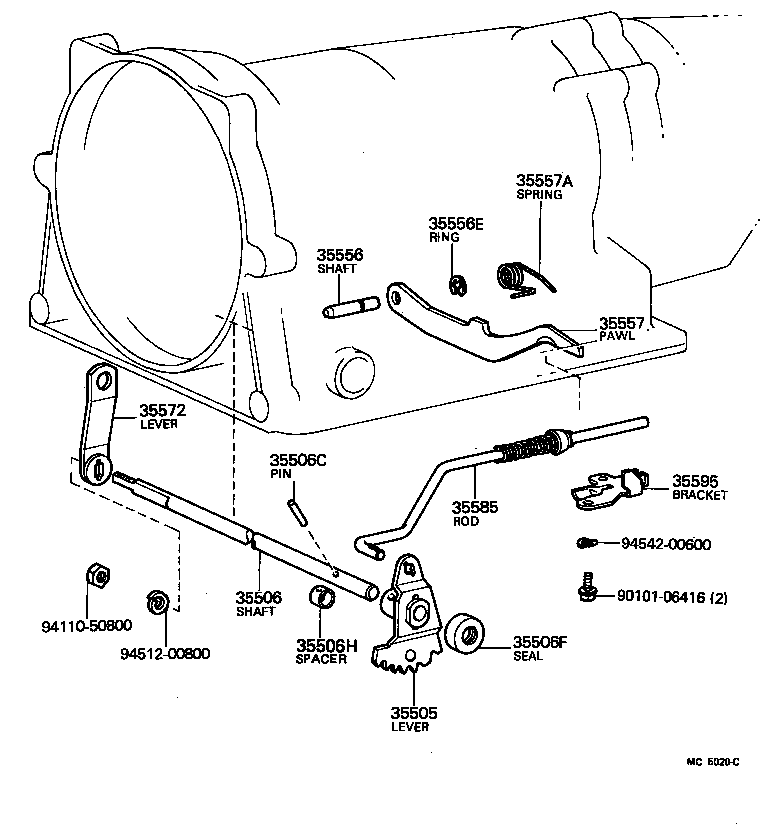

(8108- )ATM
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35505 - LEVER SUB-ASSY, MANUAL VALVE | ||||
| 35505-22010 |
RA60,61,TA60..ATM |
1 | ||
| 35506 - SHAFT SUB-ASSY, MANUAL VALVE LEVER | ||||
| 35561-20021 |
RA60,61,TA60..ATM |
1 | ||
| 35506C - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90254-03004 |
RA60,61,TA60..ATM |
1 | ||
| 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90311-11128 |
RA60,61,TA60..ATM |
2 | ||
| 35506H - SPACER (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90560-20003 |
MA61,RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35556 - SHAFT, PARKING LOCK PAWL | ||||
| 35556-22010 |
MA61,RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35556E - RING, E (FOR PARKING LOCK PAWL SHAFT) | ||||
| 90523-08021 |
MA61,RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35557 - PAWL, PARKING LOCK | ||||
| 35557-22010 |
RA60,61,SA63,TA60..ATM |
1 | ||
| 35557A - SPRING, TORSION (FOR PARKING LOCK PAWL) | ||||
| 90508-25001 |
MA61,RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35572 - LEVER, TRANSMISSION CONTROL SHAFT, RH | ||||
| 35572-22040 |
MA61,RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35585 - ROD, PARKING LOCK | ||||
| 35501-22020 |
MA61,RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35595 - BRACKET, PARKING LOCK PAWL | ||||
| 35595-16010 |
MA61,RA60,61,SA63,TA60..ATM |
1 | ||
| Common parts | ||||
| 90101-06416 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||
| 94542-00600 | ||||

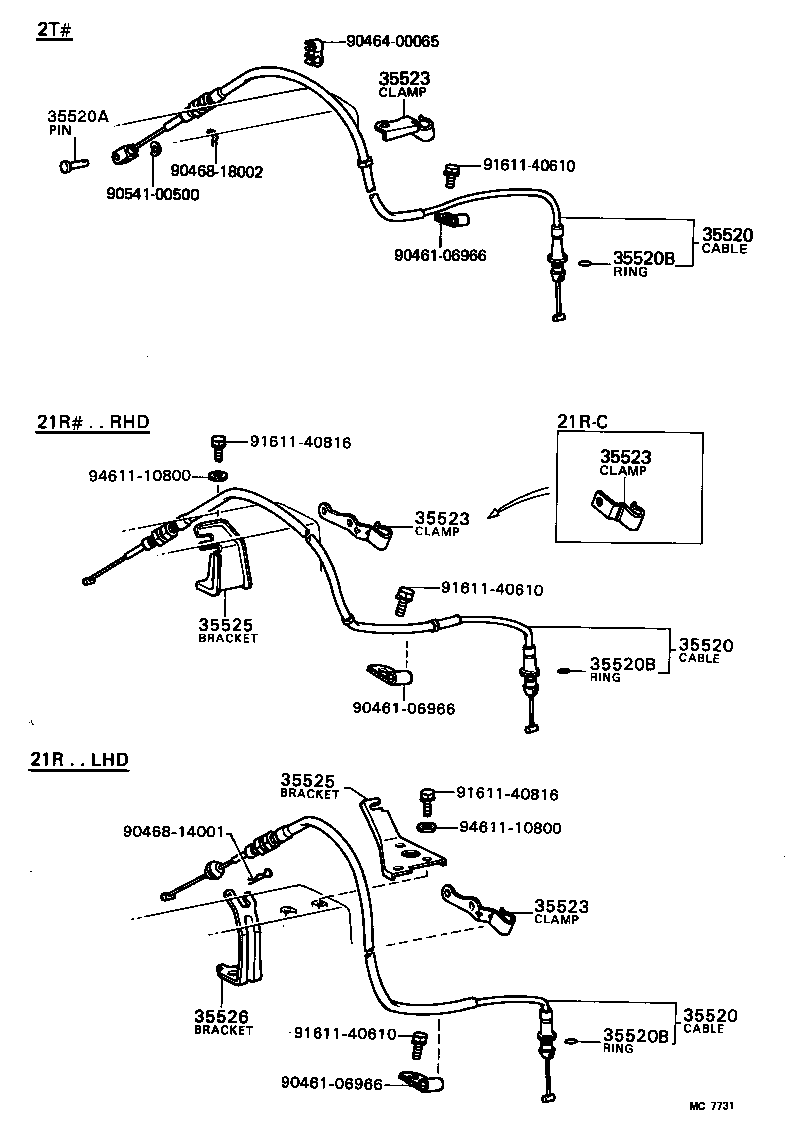

(8108-8507)ATM
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35520 - CABLE ASSY, THROTTLE | ||||
| 35520-12050 |
TA60..3FC |
1 | ||
| 35520 - CABLE ASSY, THROTTLE | ||||
| 35520-12050 |
TA60..3FC |
1 | ||
| 35520 - CABLE ASSY, THROTTLE | ||||
| 35520-12050 |
TA60..3FC |
1 | ||
| 35520A - PIN, THROTTLE CABLE | ||||
| 90240-05139 |
TA60..3FC |
1 | ||
| 35520B - RING, O(FOR THROTTLE CABLE) | ||||
| 90301-09063 |
RA60,61,TA60..ATM |
1 | ||
| 35520B - RING, O(FOR THROTTLE CABLE) | ||||
| 90301-09063 |
RA60,61,TA60..ATM |
1 | ||
| 35520B - RING, O(FOR THROTTLE CABLE) | ||||
| 90301-09063 |
RA60,61,TA60..ATM |
1 | ||
| 35523 - CLAMP, THROTTLE CABLE | ||||
| 35523-14030 |
TA60..3FC |
1 | ||
| 35523 - CLAMP, THROTTLE CABLE | ||||
| 35523-14030 |
TA60..3FC |
1 | ||
| 35523 - CLAMP, THROTTLE CABLE | ||||
| 35523-14030 |
TA60..3FC |
1 | ||
| 35523 - CLAMP, THROTTLE CABLE | ||||
| 35523-14030 |
TA60..3FC |
1 | ||
| Common parts | ||||
| 90461-06966 | ||||
| 90464-00065 | ||||
| 90468-14001 | ||||
| 90468-18002 | ||||
| 90541-00500 | ||||
| 91611-40610 | ||||
| 91611-40816 | ||||
| 94611-10800 | ||||
