TA60L-BLHSS (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 2T
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8507)2T#

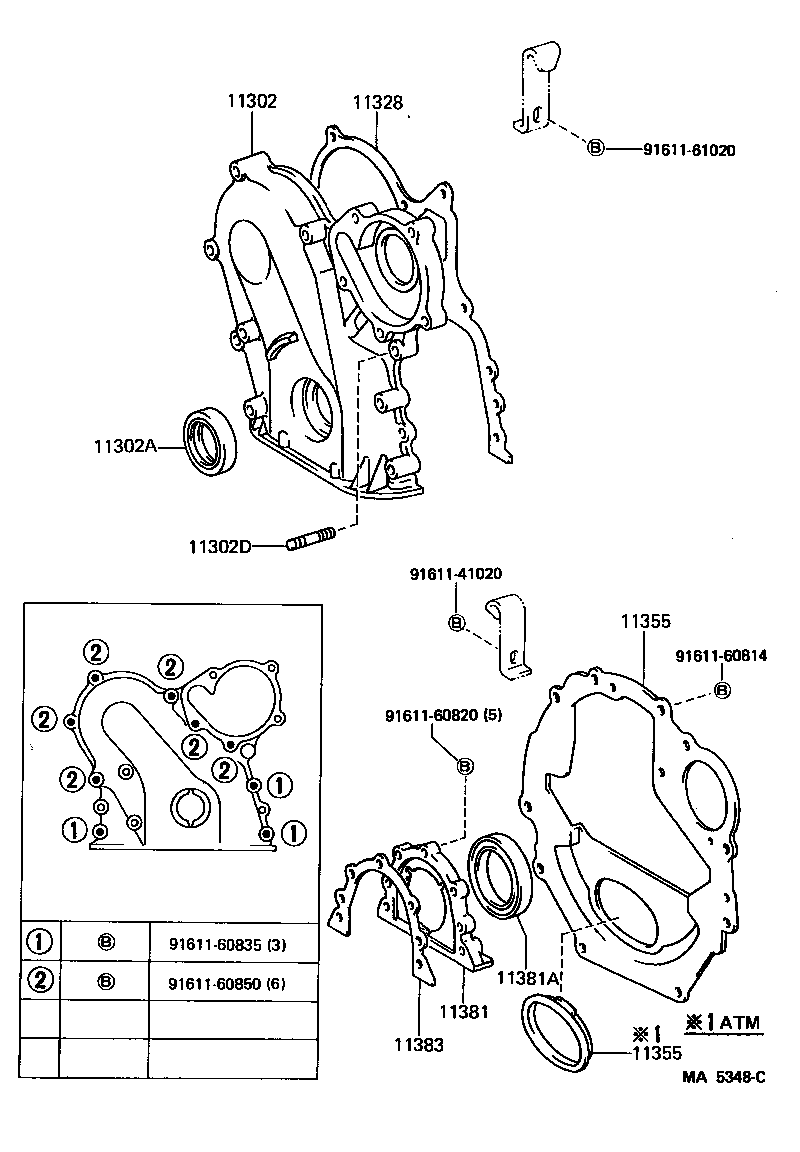

Click highlighted areas on diagram

diagram 11302 11302A 11302D 11328 11355 11355 11381 11381A 11383 9161141020 9161160814 9161160820 9161160835 9161160850 9161161020
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-28010

2T#..TA60

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-38013

2T#..TA60

 1
11302D - BOLT, STUD(FOR TIMING GEAR COVER)
90116-08057

2T#..TA60

L=28,S=13&13

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-25011

2T#..TA60

 1
11355 - PLATE, REAR END
11355-25023

2T..TA60..3FC

 1
11355 - PLATE, REAR END
11355-25023

2T..TA60..3FC

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-25010

2T#..TA60

 1
11381A - SEAL, ENGINE REAR OIL
90311-75113

2T#..TA60

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-25010

2T#..TA60

 1
Common parts
91611-41020
91611-60814
91611-60820
91611-60835
91611-60850
91611-61020
