TA60L-BCMSBW (1981)
Toyota Celica
Production
Aug 1981
-
Jul 1985
Engine
2TB
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8108-8308)2T
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23100A - HOSE, FUEL | ||||
| 95332-06030 |
2T#..TA60 *H,L=280 |
1 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
2T#..TA60 |
6 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
2T#..TA60 |
6 | ||
| 23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1 | ||||
| 95332-06030 |
2TB..TA60 *H,L=260 |
1 | ||
| 95332-06030 |
2T..TA60 *H,L=300 |
1 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 96132-30600 |
2T#..TA60 |
2 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 96132-30600 |
2T#..TA60 |
2 | ||

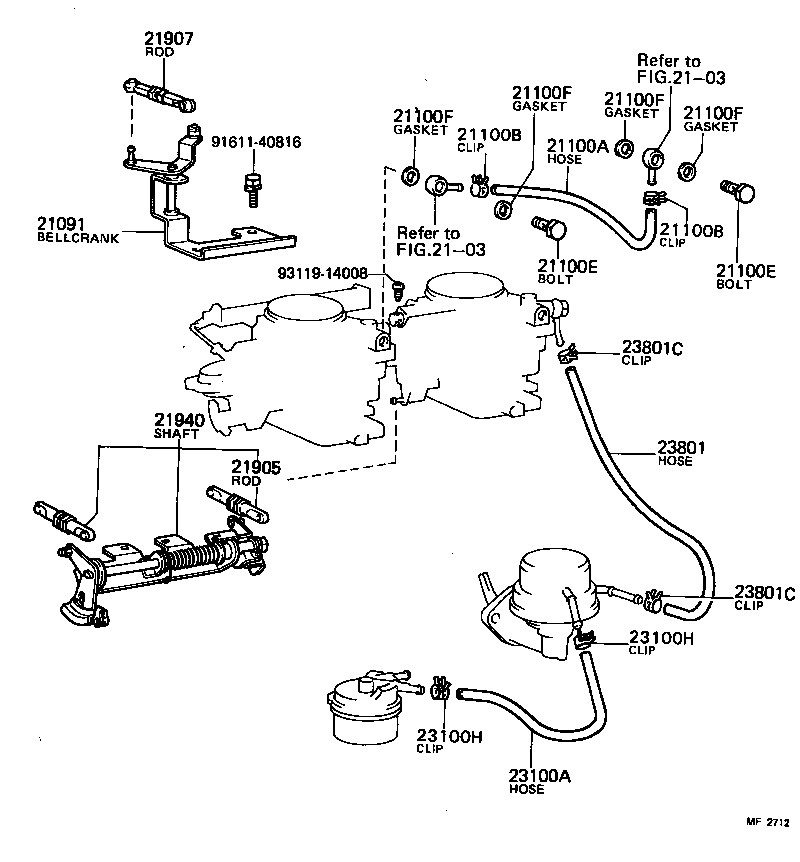

(8108-8507)2TB
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21091 - BELLCRANK SUB-ASSY, ACCELERATOR | ||||
| 21091-26030 |
2TB..TA60 |
1 | ||
| 21100A - HOSE(FOR CARBURETOR) | ||||
| 95332-06030 |
2TB..TA60 *H,L=260 |
1 | ||
| 21100B - CLIP(FOR CARBURETOR) | ||||
| 96132-30600 |
2TB..TA60 |
2 | ||
| 21100B - CLIP(FOR CARBURETOR) | ||||
| 96132-30600 |
2TB..TA60 |
2 | ||
| 21100E - BOLT, CARBURETOR TO CARBURETOR HOSE UNION | ||||
| 21811-30010 |
2TB..TA60 |
2 | ||
| 21100E - BOLT, CARBURETOR TO CARBURETOR HOSE UNION | ||||
| 21811-30010 |
2TB..TA60 |
2 | ||
| 21100F - GASKET, CARBURETOR TO CARBURETOR HOSE UNION BOLT | ||||
| 21621-30010 |
2TB..TA60 |
4 | ||
| 21100F - GASKET, CARBURETOR TO CARBURETOR HOSE UNION BOLT | ||||
| 21621-30010 |
2TB..TA60 |
4 | ||
| 21100F - GASKET, CARBURETOR TO CARBURETOR HOSE UNION BOLT | ||||
| 21621-30010 |
2TB..TA60 |
4 | ||
| 21100F - GASKET, CARBURETOR TO CARBURETOR HOSE UNION BOLT | ||||
| 21621-30010 |
2TB..TA60 |
4 | ||
| 21905 - ROD SUB-ASSY, ACCELERATOR CONNECTING | ||||
| 21483-26010 |
2TB..TA60 |
1 | ||
| 21907 - ROD SUB-ASSY, CHOKE CONNECTING | ||||
| 21907-26010 |
2TB..TA60 |
1 | ||
| 21940 - SHAFT ASSY, ACCELERATOR LINK | ||||
| 21940-26050 |
2TB..TA60 |
1 | ||
| 23100A - HOSE, FUEL | ||||
| 95332-06030 |
2T#..TA60 *H,L=280 |
1 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
2T#..TA60 |
6 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
2T#..TA60 |
6 | ||
| 23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1 | ||||
| 95332-06030 |
2TB..TA60 *H,L=260 |
1 | ||
| 95332-06030 |
2T..TA60 *H,L=300 |
1 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 96132-30600 |
2T#..TA60 |
2 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 96132-30600 |
2T#..TA60 |
2 | ||
| Common parts | ||||
| 91611-40816 | ||||
| 93119-14008 | ||||
| Linked diagrams | ||||
| 2103 | ||||
