TA60L-BCMDS (1981)
Toyota Celica
Production
Aug 1981
-
Aug 1983
Engine
2T
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

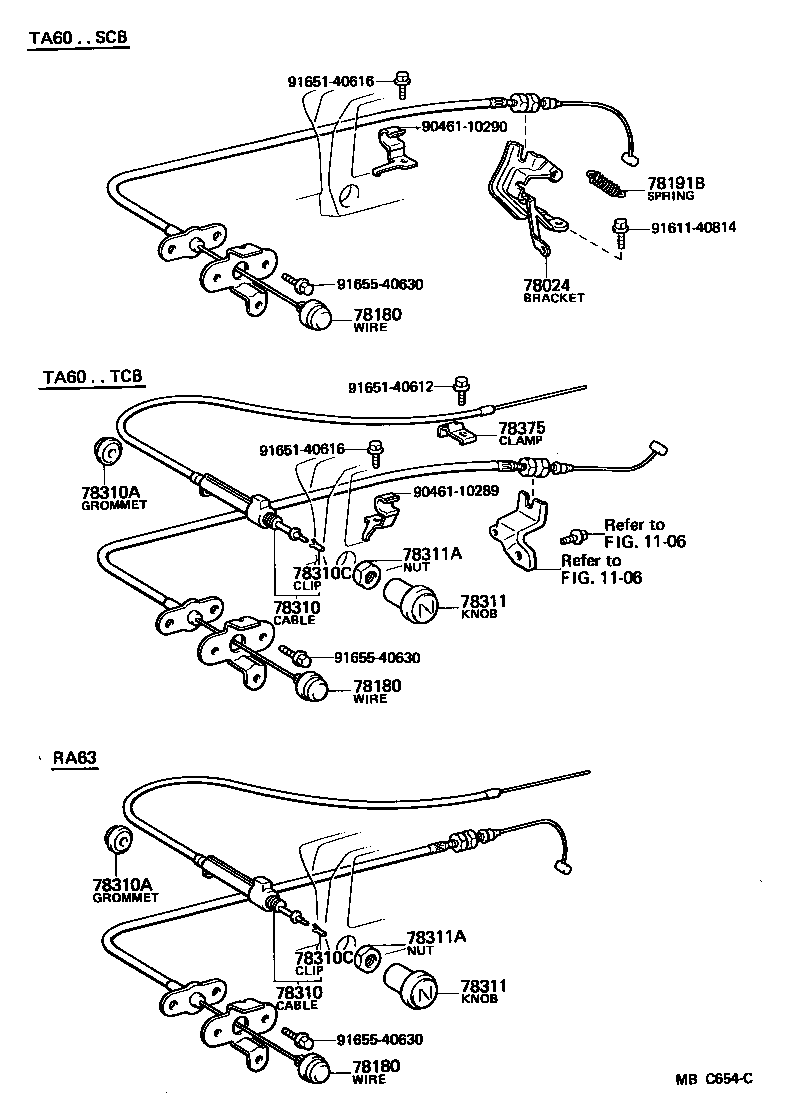

(8108-8507)RA63,TA60..LHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-12010 |
TA60..SCB |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-14350 |
TA60..SCB |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-14350 |
TA60..SCB |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-14350 |
TA60..SCB |
1 | ||
| 78191B - SPRING, TENSION (FOR ACCELERATOR WIRE SUPPORT BRACKET) | ||||
| 90507-08002 |
TA60..SCB |
2 | ||
| Common parts | ||||
| 90461-10289 | ||||
| 90461-10290 | ||||
| 91611-40814 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| 91655-40630 | ||||
| Linked diagrams | ||||
| 1106 | ||||
(8108- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-14270 |
AA63,RA63,TA60..LHD..5F |
1 | ||
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-14270 |
AA63,RA63,TA60..LHD..5F |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-26036 |
RA63,TA60..5F |
1 | ||
| 90508-26036 |
RA63,TA60..LHD..5F |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-26036 |
RA63,TA60..5F |
1 | ||
| 90508-26036 |
RA63,TA60..LHD..5F |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-12100 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-12100 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-23003 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-23003 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-05001 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-05001 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| Common parts | ||||
| 91651-40620 | ||||
| 91655-40616 | ||||
| 93381-16012 | ||||
| 94611-10800 | ||||
| 95381-02015 | ||||
| 96160-00400 | ||||
| 96160-00600 | ||||
