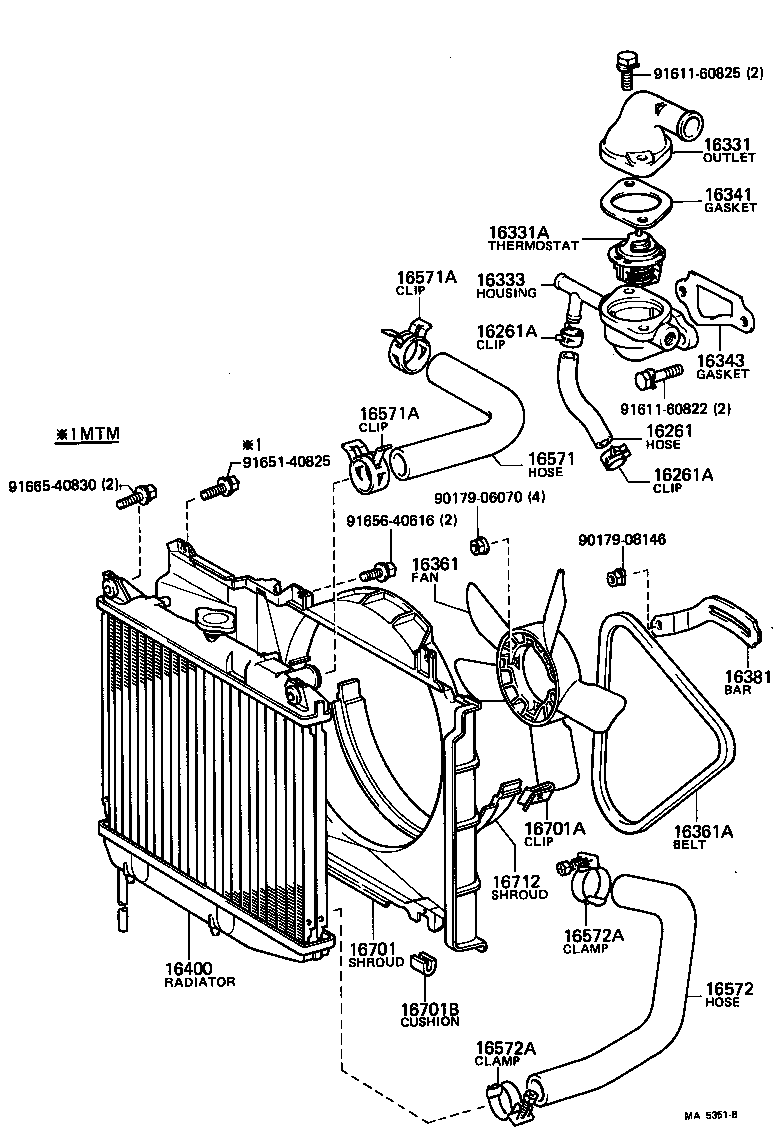

TA60L-BCMDS (1981)
Toyota Celica
(8108-8507)2T#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-25020 |
2T#..TA60 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-20005 |
2T#..TA60 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-20005 |
2T#..TA60 |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-26060 |
2T#..TA60 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03040 |
2T#..TA60 *WAX 88-100,KUZEH |
1 | ||
| 90916-03036 |
2T#..TA60 *WAX 88-100,FUJI-THOMSON |
1 | ||
| 90916-03036 |
2T#..TA60 *WAX 88-100,FUJI-THOMSON |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16303-25010 |
2T..TA60 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-38010 |
2T#..TA60 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-22010 |
2T#..TA60 |
1 | ||
| 16361 - FAN | ||||
| 16361-26040 |
2T#..TA60..5F |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99321-00885 |
2T#..TA60 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-25010 |
2T#..TA60 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-26330 |
2T#..TA60..5F W/CAP |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 90916-01143 |
2T#..TA60 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
2T#..TA60 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
2T#..TA60 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16571-26090 |
2T#..TA60 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10490 |
2T#..TA60 WATER PUMP SIDE |
1 | ||
| 96111-10460 |
2T#..TA60 RADIATOR SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10490 |
2T#..TA60 WATER PUMP SIDE |
1 | ||
| 96111-10460 |
2T#..TA60 RADIATOR SIDE |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-26090 |
2T#..TA60..5F |
1 | ||
| 16701A - CLIP(FOR FAN SHROUD) | ||||
| 90468-06013 |
2T#..TA60 W/COOLER |
2 | ||
| 16701B - CUSHION, FAN SHROUD | ||||
| 90541-11002 |
2T#..TA60 |
2 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-44040 |
2T#..TA60 W/COOLER |
1 | ||
| Common parts | ||||
| 90179-06070 | ||||
| 90179-08146 | ||||
| 91611-60822 | ||||
| 91611-60825 | ||||
| 91651-40825 | ||||
| 91656-40616 | ||||
| 91665-40830 | ||||
(8108-8507)2T#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-26330 |
2T#..TA60..5F W/CAP |
1 | ||
| 16400-26330 |
2T#..TA60..5F W/CAP |
1 | ||
| 16400-26330 |
2T#..TA60..5F W/CAP |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-26330 |
2T#..TA60..5F W/CAP |
1 | ||
| 16400-26330 |
2T#..TA60..5F W/CAP |
1 | ||
| 16400-26330 |
2T#..TA60..5F W/CAP |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
2T#..TA60 |
1 | ||
| 23322-54010 |
2T#..TA60 |
1 | ||
| 23322-54010 |
2T#..TA60 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
2T#..TA60 |
1 | ||
| 96711-19007 |
2T#..TA60 |
1 | ||
| 96711-19007 |
2T#..TA60 |
1 | ||
| 16400R - BUSHING(FOR RADIATOR) | ||||
| 16444-35070 |
2T#..TA60 |
2 | ||
| 16444-35070 |
2T#..TA60 |
2 | ||
| 16444-35070 |
2T#..TA60 |
2 | ||
| 16400S - COLLAR(FOR RADIATOR) | ||||
| 16445-35070 |
2T#..TA60 |
2 | ||
| 16445-35070 |
2T#..TA60 |
2 | ||
| 16445-35070 |
2T#..TA60 |
2 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
2T#..TA60 |
1 | ||
| 16401-63010 |
2T#..TA60 |
1 | ||
| 16401-63010 |
2T#..TA60 |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-26330 |
2T#..TA60..5F |
1 | ||
| 16403-26330 |
2T#..TA60..5F |
1 | ||
| 16403-26330 |
2T#..TA60..5F |
1 | ||
| 16441 - TANK, RADIATOR, UPPER | ||||
| 16441-26330 |
2T#..TA60..5F |
1 | ||
| 16441-26330 |
2T#..TA60..5F |
1 | ||
| 16441-26330 |
2T#..TA60..5F |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-26330 |
2T#..TA60..5F |
1 | ||
| 16442-26330 |
2T#..TA60..5F |
1 | ||
| 16442-26330 |
2T#..TA60..5F |
1 | ||
| 16443 - PLATE, RADIATOR TANK, LOCK, UPPER | ||||
| 16443-26330 |
2T#..TA60..5F |
2 | ||
| 16443-26330 |
2T#..TA60..5F |
2 | ||
| 16443-26330 |
2T#..TA60..5F |
2 | ||
| 16451 - PLATE, RADIATOR CORE, UPPER | ||||
| 16451-26330 |
2T#..TA60..5F |
1 | ||
| 16451-26330 |
2T#..TA60..5F |
1 | ||
| 16451-26330 |
2T#..TA60..5F |
1 | ||
| 16452 - PLATE, RADIATOR CORE, LOWER | ||||
| 16452-26330 |
2T#..TA60..5F |
1 | ||
| 16452-26330 |
2T#..TA60..5F |
1 | ||
| 16452-26330 |
2T#..TA60..5F |
1 | ||
| 16461 - TANK, RADIATOR, LOWER | ||||
| 16461-26330 |
2T#..TA60..5F |
1 | ||
| 16461-26330 |
2T#..TA60..5F |
1 | ||
| 16461-26330 |
2T#..TA60..5F |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-26330 |
2T#..TA60..5F |
1 | ||
| 16462-26330 |
2T#..TA60..5F |
1 | ||
| 16462-26330 |
2T#..TA60..5F |
1 | ||
| 16463 - PLATE, RADIATOR TANK, LOCK, LOWER | ||||
| 16463-26330 |
2T#..TA60..5F |
2 | ||
| 16463-26330 |
2T#..TA60..5F |
2 | ||
| 16463-26330 |
2T#..TA60..5F |
2 | ||
