TA60L-BCMDS (1981)

Toyota Celica

Production Aug 1981 - Aug 1983
Engine 2T
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8507)2T#

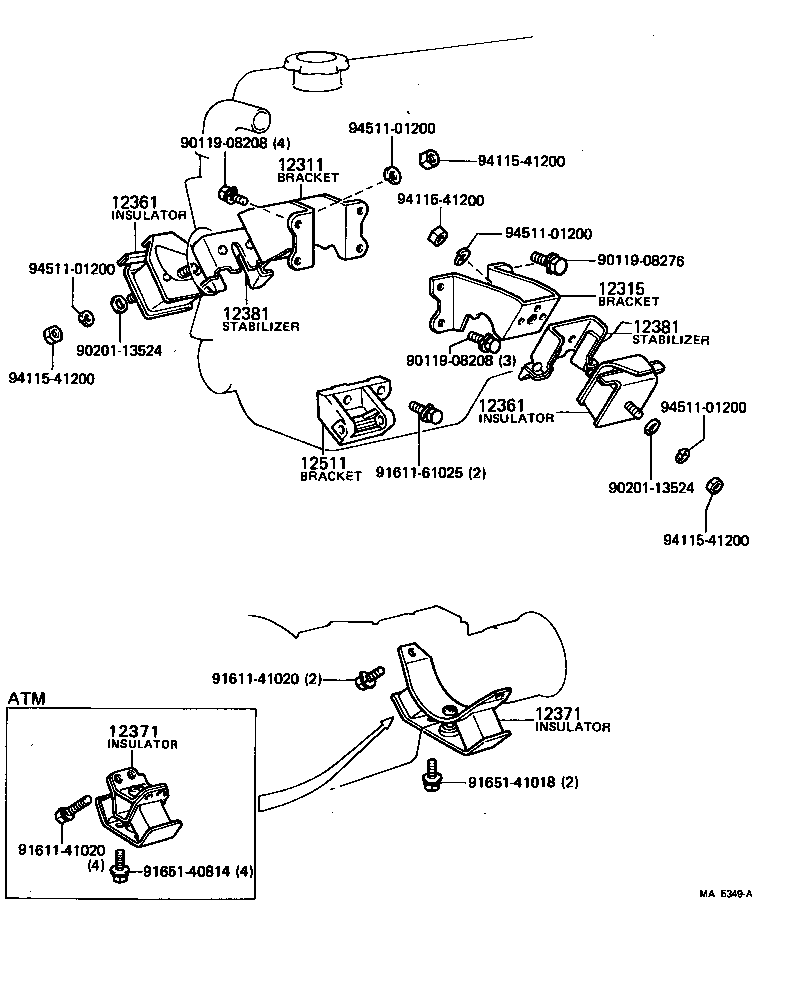

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12371 12381 12381 12511 9011908208 9011908208 9011908276 9020113524 9020113524 9161141020 9161141020 9161161025 9165140814 9165141018 9411541200 9411541200 9411541200 9411541200 9451101200 9451101200 9451101200 9451101200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-25051

2T..TA60

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12312-25041

2T#..TA60

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-18020

2T#..TA60

TOYO GOMU

 2
12361-18030

2T#..TA60

TOYOTA GOSEI

 2
12361-18010

2T#..TA60

MARUYASU,TOHKAIGOMU

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-18020

2T#..TA60

TOYO GOMU

 2
12361-18030

2T#..TA60

TOYOTA GOSEI

 2
12361-18010

2T#..TA60

MARUYASU,TOHKAIGOMU

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-33010

2T#..TA60..5F

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-33010

2T#..TA60..5F

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-18010

2T#..TA60

MARUYASU,TOHKAIGOMU

 2
12381-18020

2T#..TA60

TOYO GOMU

 2
12381-18050

2T#..TA60

TOYOTA GOSEI

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-18010

2T#..TA60

MARUYASU,TOHKAIGOMU

 2
12381-18020

2T#..TA60

TOYO GOMU

 2
12381-18050

2T#..TA60

TOYOTA GOSEI

 2
12511 - BRACKET, ALTERNATOR, NO.1
12511-25010

2T#..TA60

 1
Common parts
90119-08208
90119-08276
90201-13524
91611-41020
91611-61025
91651-40814
91651-41018
94115-41200
94511-01200
