TA60L-BCMDBW (1981)

Toyota Celica

Production Aug 1981 - Aug 1983
Engine 2TB
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8507)CP

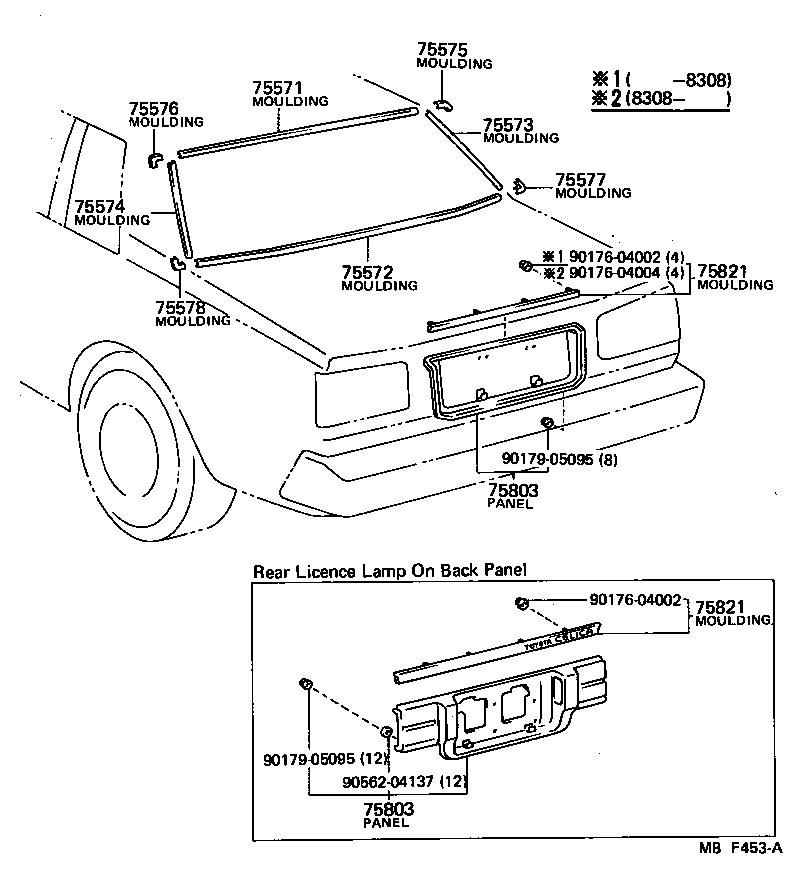

Click highlighted areas on diagram

diagram 75571 75572 75573 75574 75575 75576 75577 75578 75803 75803 75821 75821 9017604002 9017604002 9017604004 9017905095 9017905095 9056204137
Part # Description Qty Price
75803 - PANEL SUB-ASSY, BODY LOWER BACK FINISH CENTER
75082-19205

AA63,RA6#,SA63,TA60..CP..(ARL,EUR,GEN)

 1
75803 - PANEL SUB-ASSY, BODY LOWER BACK FINISH CENTER
75082-19205

AA63,RA6#,SA63,TA60..CP..(ARL,EUR,GEN)

 1
75821 - MOULDING, LUGGAGE COMPARTMENT DOOR BACK
75801-19095

RA6#,TA60..CP

 1
75821 - MOULDING, LUGGAGE COMPARTMENT DOOR BACK
75801-19095

RA6#,TA60..CP

 1
Common parts
90176-04002
90176-04004
90179-05095
90562-04137
