ST205R-BLMVZQ (1994)
Toyota Celica
Production
Feb 1994
-
Aug 1999
Engine
3SGTE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9402-9908)ST205
Click highlighted areas on diagram

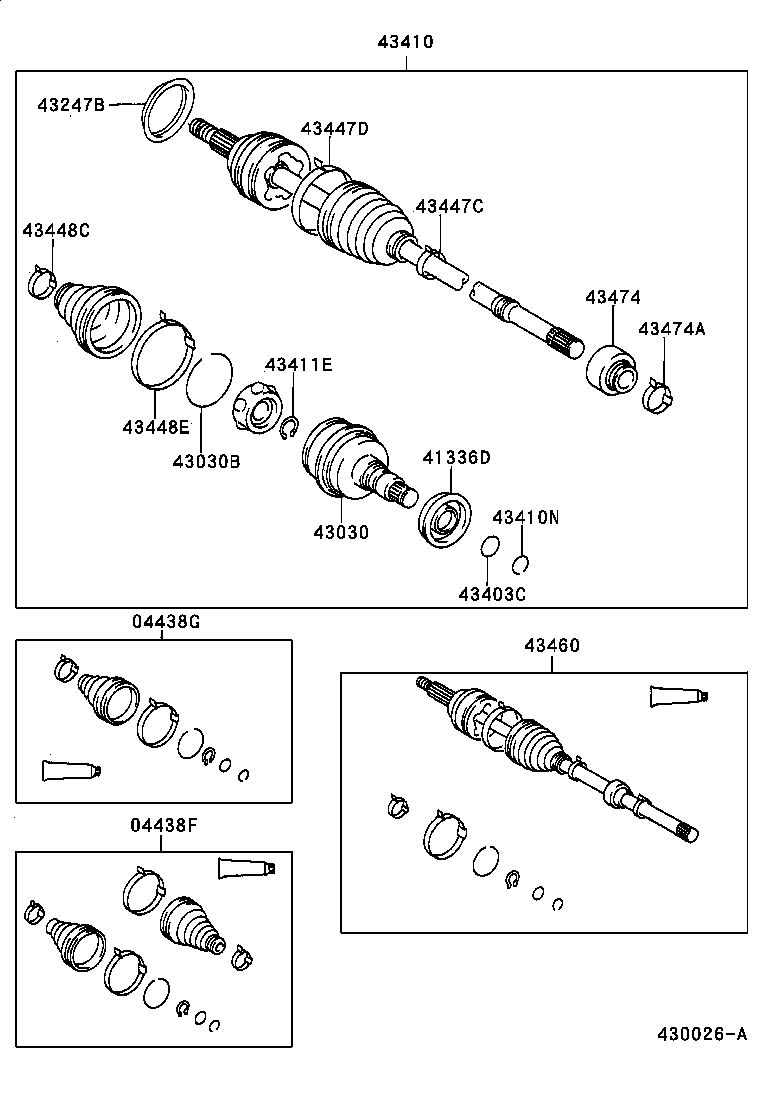

RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH | ||||
| 04438-20280 |
ST205 |
1 | ||
| 04438-20270 |
ST205 |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04438-20260 |
ST205 |
1 | ||
| 41336D - COVER, FRONT DRIVE SHAFT DUST, RH | ||||
| 41336-20040 |
ST205 |
1 | ||
| 43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH | ||||
| 43030-20070 |
ST205 |
1 | ||
| 43030B - RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT RH) | ||||
| 90521-79001 |
ST205 |
1 | ||
| 43247B - DEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2 | ||||
| 43247-12010 |
ST20# W(ABS) |
1 | ||
| 43403C - RING, O (FOR FRONT DRIVE INBOARD JOINT) | ||||
| 90301-26006 |
ST205 |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-20520 |
ST205 |
1 | ||
| 43410-20660 |
ST205 |
1 | ||
| 43410-20521 |
ST205 |
1 | ||
| 43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) | ||||
| 90521-26004 |
ST205 |
1 | ||
| 43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 90520-25034 |
ST205 |
1 | ||
| 43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 90949-01938 |
ST205 |
1 | ||
| 43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 90949-01937 |
ST205 |
1 | ||
| 43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 90949-01108 |
ST205 |
1 | ||
| 43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42346-22010 |
ST205 |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43470-29465 |
ST205 |
1 | ||
| 43470-29455 |
ST205 |
1 | ||
| 43470-29466 |
ST205 |
1 | ||
| 43474 - DAMPER, DRIVE SHAFT | ||||
| 43474-20080 |
ST205 |
1 | ||
| 43474-20090 |
ST202,205;ST204..MTM |
1 | ||
| 43474A - CLAMP (FOR DRIVE SHAFT DAMPER SETTING) | ||||
| 42345-16010 |
ST205 |
1 | ||
| 90949-01696 |
ST202,205;ST204..MTM |
1 | ||
(9402-9908)ST205
Click highlighted areas on diagram

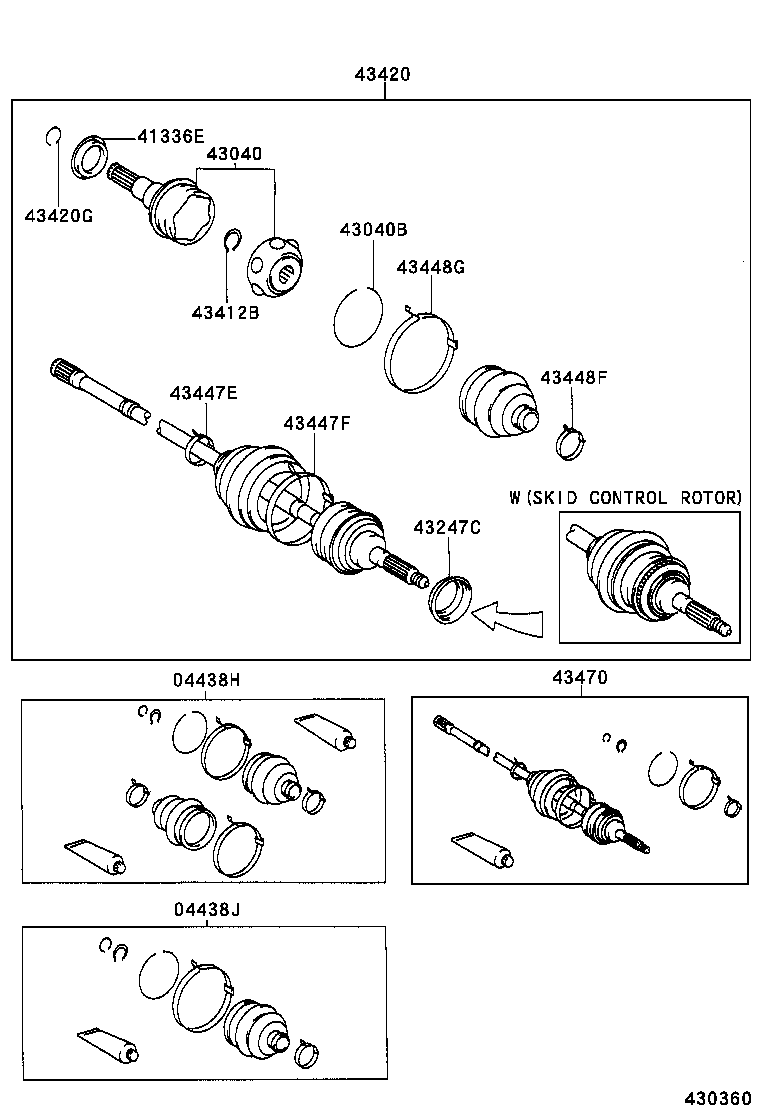

LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH | ||||
| 04438-20270 |
ST205 |
1 | ||
| 04438-20280 |
ST205 |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04438-20260 |
ST205 |
1 | ||
| 41336E - COVER, FRONT DRIVE SHAFT DUST, LH | ||||
| 41336-17020 |
ST205 |
1 | ||
| 43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH | ||||
| 43040-20040 |
ST205 |
1 | ||
| 43040B - RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT LH) | ||||
| 90521-79001 |
ST205 |
1 | ||
| 43247C - DEFLECTOR, FRONT WHEEL BEARING DUST, LH NO.2 | ||||
| 43247-12010 |
ST20# W(ABS) |
1 | ||
| 43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) | ||||
| 90520-25034 |
ST205 |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-20410 |
ST205 |
1 | ||
| 43420-20520 |
ST205 |
1 | ||
| 43420-20521 |
ST205 |
1 | ||
| 43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) | ||||
| 90521-26004 |
ST205 |
1 | ||
| 43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 90949-01938 |
ST205 |
1 | ||
| 43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 90949-01937 |
ST205 |
1 | ||
| 43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 90949-01108 |
ST205 |
1 | ||
| 43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42346-22010 |
ST205 |
1 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-29465 |
ST205 |
1 | ||
| 43470-29455 |
ST205 |
1 | ||
| 43470-29466 |
ST205 |
1 | ||
