ST205R-BLMVZQ (1994)
Toyota Celica
Production
Feb 1994
-
Aug 1999
Engine
3SGTE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9402- )ST205

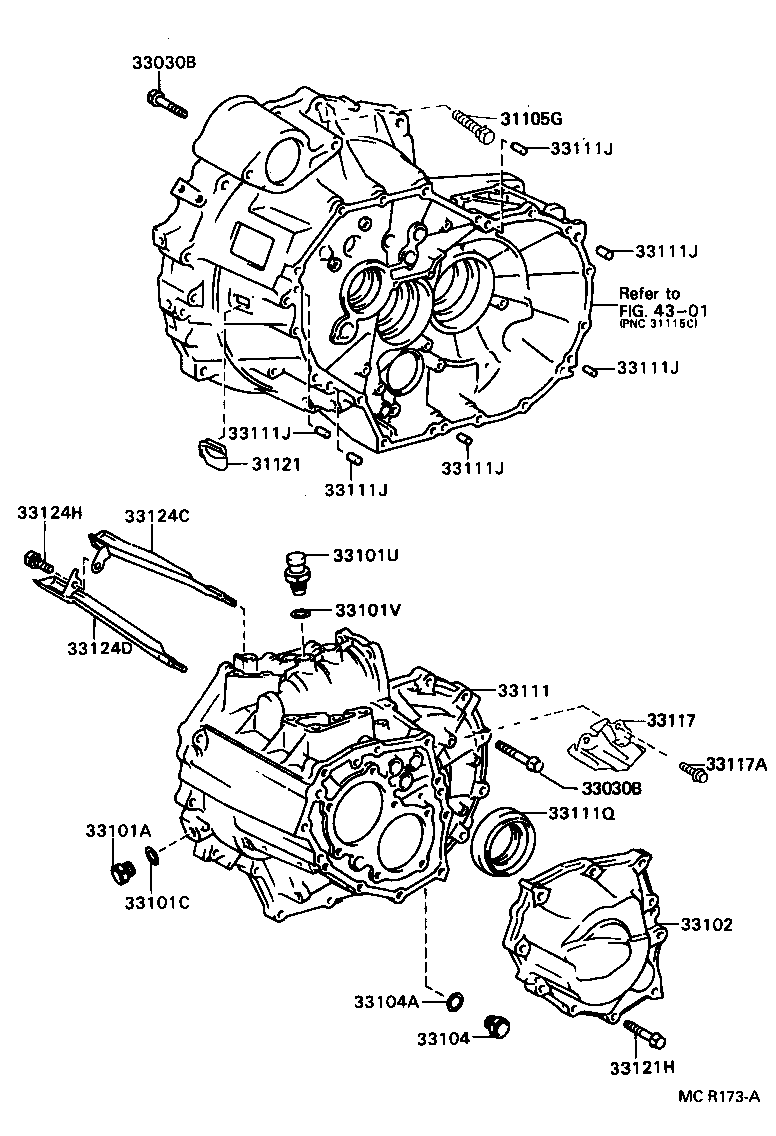

Click highlighted areas on diagram
E154F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 90105-10077 |
ST20#..MTM *10-1.25PX43-26 |
1 | ||
| 91651-41022 |
ST20#..MTM *10-1.25PX22-22 |
1 | ||
| 90119-12168 |
ST20#..MTM *12-1.25PX55-30 |
3 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-20010 |
ST205 |
1 | ||
| 33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) | ||||
| 90105-08126 |
ST205 *8-1.25PX45-27.5 |
17 | ||
| 33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) | ||||
| 90105-08126 |
ST205 *8-1.25PX45-27.5 |
17 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18033 |
ST205 |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-18008 |
ST20#..MTM |
1 | ||
| 33101U - PLUG, BREATHER(FOR MANUAL TRANSMISSION) | ||||
| 90930-03148 |
ST205 |
1 | ||
| 90930-03111 |
ST205 |
1 | ||
| 33101V - GASKET(FOR MANUAL TRANSMISSION BREATHER PLUG) | ||||
| 90430-18008 |
ST205 |
1 | ||
| 33102 - COVER SUB-ASSY, MANUAL TRANSMISSION CASE | ||||
| 33102-33010 |
ST205 |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18006 |
ST20#..MTM |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
ST20#..MTM |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-20050 |
ST205 |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
ST20#..MTM L=23,OD=8 |
6 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
ST20#..MTM L=23,OD=8 |
6 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
ST20#..MTM L=23,OD=8 |
6 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
ST20#..MTM L=23,OD=8 |
6 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
ST20#..MTM L=23,OD=8 |
6 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
ST20#..MTM L=23,OD=8 |
6 | ||
| 33111Q - SEAL, OIL(FOR TRANSMISSION CASE) | ||||
| 90311-50010 |
ST205 |
1 | ||
| 33117 - PROTECTOR, MANUAL TRANSMISSION CASE | ||||
| 33117-20020 |
ST205 |
1 | ||
| 33117A - BOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR) | ||||
| 90105-08040 |
ST20#..MTM |
2 | ||
| 33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER) | ||||
| 90105-08273 |
ST205 |
10 | ||
| 33124C - PIPE, OIL RECEIVER, NO.1(MTM) | ||||
| 33124-20020 |
ST205 |
1 | ||
| 33124D - PIPE, OIL RECEIVER, NO.2(MTM) | ||||
| 33124-20030 |
ST205 |
1 | ||
| 33124H - BOLT(FOR OIL RECEIVER PIPE) | ||||
| 90119-08648 |
ST205 |
1 | ||
| Linked diagrams | ||||
| 4301 | ||||
