ST205R-BLMVZQ (1994)
Toyota Celica

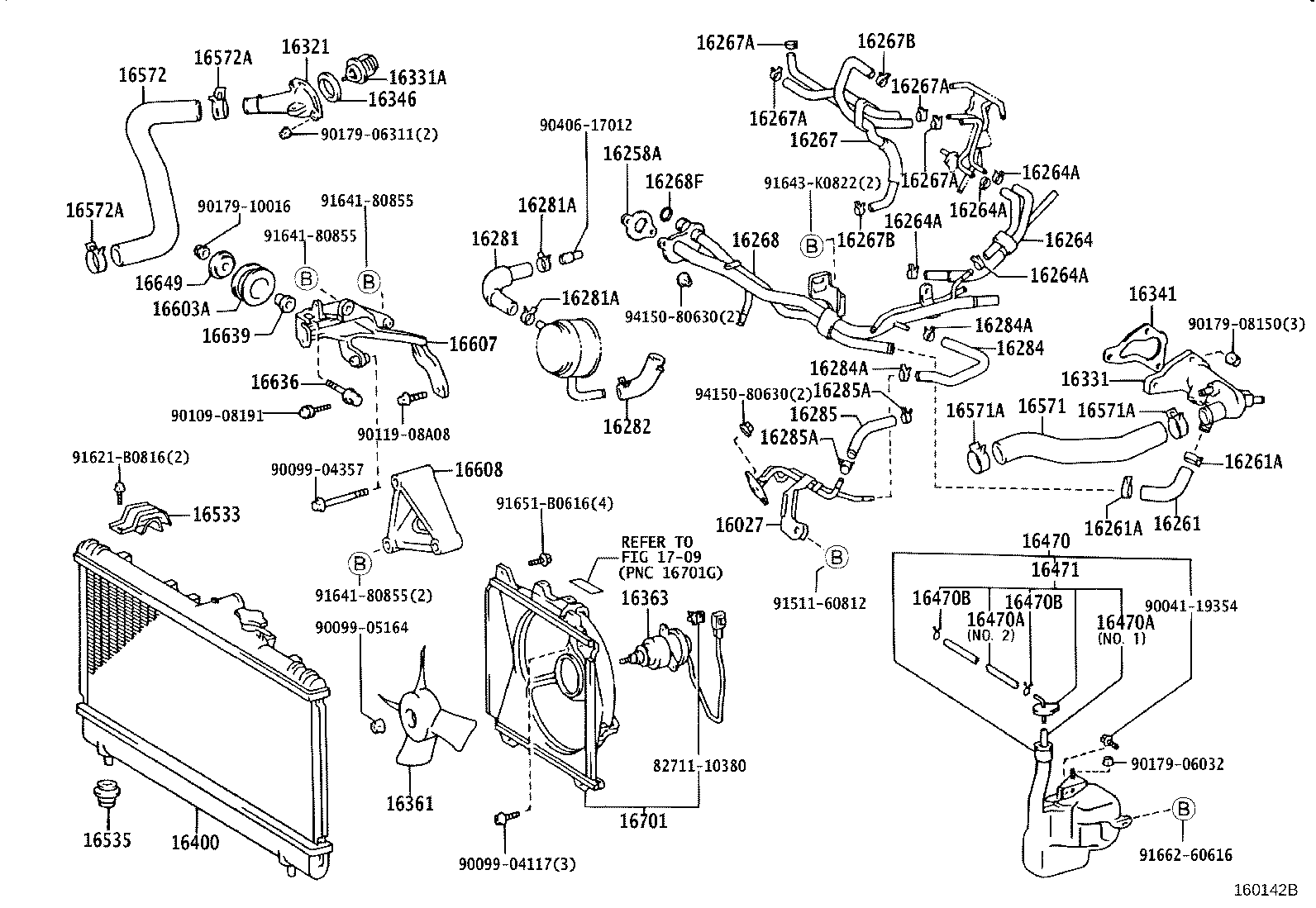

ILLUST NO. 1 OF 2(9402- )3SGTE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16027-88481 |
3SGTE..ST205 |
1 | ||
| 16258A - GASKET(FOR HEATER RETURN) | ||||
| 16258-88460 |
3SGTE..ST205 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-74091 |
3SGTE..ST205 GROUP A SPEC |
1 | ||
| 16261-88460 |
3SGTE..ST205 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-23013 |
3SGTE..ST205 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-23013 |
3SGTE..ST205 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-88481 |
3SGTE..ST205 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13128 |
3SGTE..ST205 |
4 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13128 |
3SGTE..ST205 |
4 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13128 |
3SGTE..ST205 |
4 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13128 |
3SGTE..ST205 |
4 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-88480 |
3SGTE..ST205 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13128 |
3SGTE..ST205 |
4 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13128 |
3SGTE..ST205 |
4 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13128 |
3SGTE..ST205 |
4 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13128 |
3SGTE..ST205 |
4 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90467-15004 |
3SGTE..ST205 |
2 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90467-15004 |
3SGTE..ST205 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-88480 |
3SGTE..ST205 |
1 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 96761-24019 |
3SGTE..ST205 |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-88461 |
3SGTE..ST205 |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-22003 |
3SGTE..ST205 |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-22003 |
3SGTE..ST205 |
2 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-88480 |
3SGTE..ST205 |
1 | ||
| 16284 - HOSE, TURBO WATER, NO.1 | ||||
| 16284-88481 |
3SGTE..ST205 |
1 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-15004 |
3SGTE..ST205 |
2 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-15004 |
3SGTE..ST205 |
2 | ||
| 16285 - HOSE, TURBO WATER, NO.2 | ||||
| 16285-88480 |
3SGTE..ST205 |
1 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-15004 |
3SGTE..ST205 |
2 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-15004 |
3SGTE..ST205 |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-88460 |
3SGTE..ST205 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16304-88481 |
3SGTE..ST205 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03100 |
3SGTE..ST205 *WAX 82-95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-88460 |
3SGTE..ST205 |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-17010 |
3SGTE..ST205 |
1 | ||
| 16346-32010 |
3SGTE..ST205 |
1 | ||
| 16361 - FAN | ||||
| 16361-64020 |
3SGTE..ST205 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-74030 |
3SGTE..ST205 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-7A080 |
3S#,5SFE..ST20#..MTM..(ARL,GCC) |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-74270 |
3SGTE..ST205 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
3S#,5SFE..ST20# *H,L=210,NO.1 |
1 | ||
| 90445-12078 |
3SGTE..ST205 *H,L=345,NO.2 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
3S#,5SFE..ST20# *H,L=210,NO.1 |
1 | ||
| 90445-12078 |
3SGTE..ST205 *H,L=345,NO.2 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3S#,5SFE..ST20# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3S#,5SFE..ST20# |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-74260 |
3SGTE..ST205 |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-74260 |
3S#,5SFE..ST20# |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90916-04002 |
3S#,5SFE..ST20# |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-74290 |
3SGTE..ST205 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34003 |
3S#,5SFE..ST20# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34003 |
3S#,5SFE..ST20# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-74240 |
3SGTE..ST205 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34003 |
3S#,5SFE..ST20# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34003 |
3S#,5SFE..ST20# |
2 | ||
| 16603A - PULLEY SUB-ASSY, IDLER, NO.1 | ||||
| 16603-88360 |
3SGTE..ST205 |
1 | ||
| 16607 - BRACKET SUB-ASSY, IDLER PULLEY, NO.1 | ||||
| 16631-88480 |
3SGTE..ST205 |
1 | ||
| 16608 - BRACKET SUB-ASSY, IDLER PULLEY, NO.2 | ||||
| 16632-74030 |
3SGTE..ST205 |
1 | ||
| 16636 - SHAFT, IDLER PULLY, NO.1 | ||||
| 16636-74020 |
3SGTE..ST205 |
1 | ||
| 16639 - SPACER, IDLER PULLEY | ||||
| 16639-88361 |
3SGTE..ST205 |
1 | ||
| 16649 - PLATE, IDLER PULLEY COVER | ||||
| 16649-88360 |
3SGTE..ST205 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-74520 |
3SGTE..ST205 |
1 | ||
| Common parts | ||||
| 82711-10380 | ||||
| 90041-19354 | ||||
| 90099-04117 | ||||
| 90099-04357 | ||||
| 90099-05164 | ||||
| 90109-08191 | ||||
| 90119-08A08 | ||||
| 90179-06032 | ||||
| 90179-06311 | ||||
| 90179-08150 | ||||
| 90179-10016 | ||||
| 90406-17012 | ||||
| 91511-60812 | ||||
| 91621-B0816 | ||||
| 91641-80855 | ||||
| 91643-K0822 | ||||
| 91651-B0616 | ||||
| 91662-60616 | ||||
| 94150-80630 | ||||
| Linked diagrams | ||||
| 1709 | ||||
