ST204R-BLMSKQ (1993)
Toyota Celica

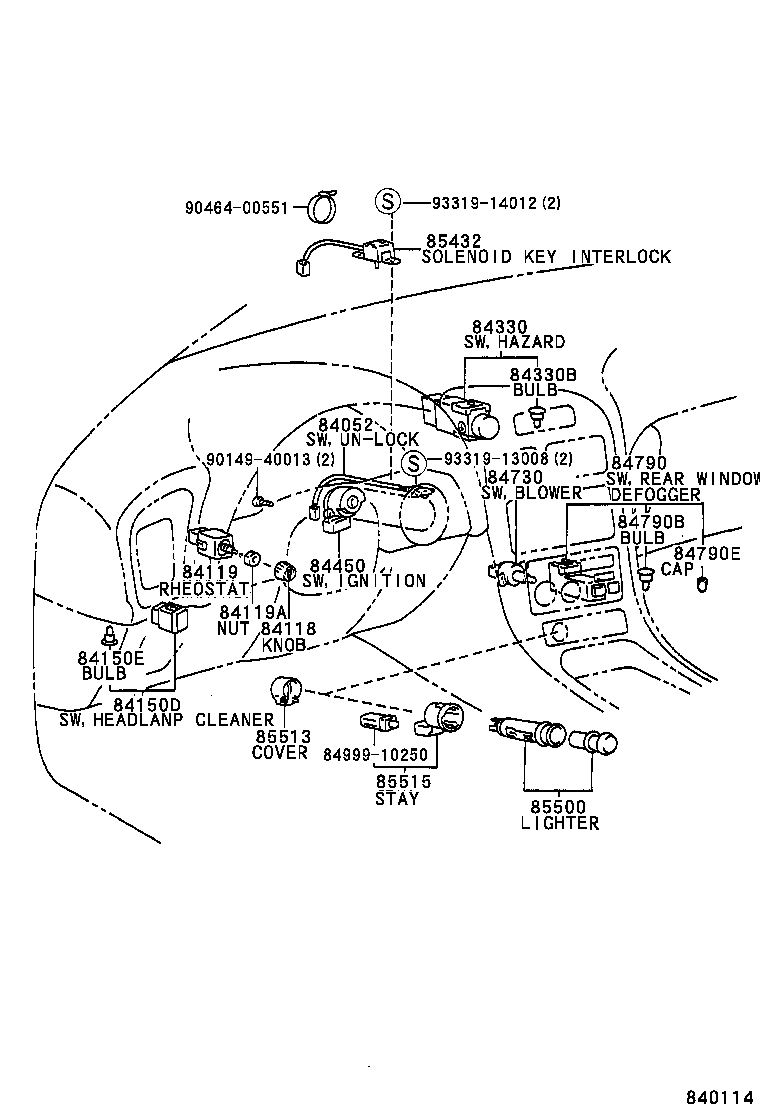

ILLUST NO. 3 OF 6(9311- )
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-20050 |
ST20# |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-20030 |
ST20# |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-14200 |
ST20# |
1 | ||
| 84119A - BOLT OR NUT, RHEOSTAT CONTROL SET | ||||
| 90170-09002 |
ST20# |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-20340 |
ST20# |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10320 |
ST20# 14V 0.84W |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-20260 |
ST20# |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-20350 |
ST20# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28050 |
ST20# |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
ST20# |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-14010 |
ST20# |
1 | ||
| Common parts | ||||
| 84999-10250 | ||||
| 90149-40013 | ||||
| 90464-00551 | ||||
| 93319-13008 | ||||
| 93319-14012 | ||||

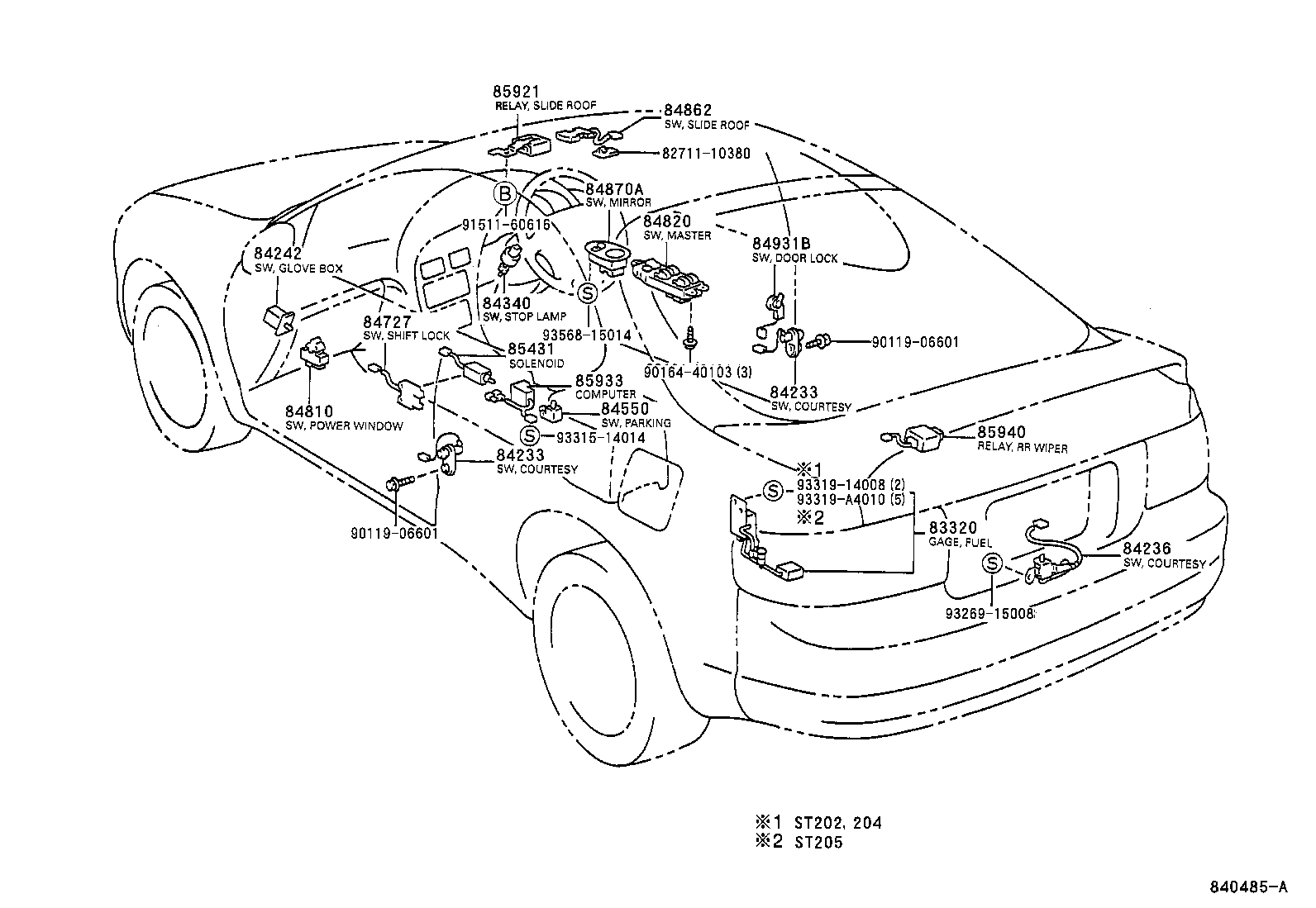

ILLUST NO. 6 OF 6(9311- )
ROOF,DOOR SEAT,FLOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80285 |
ST204 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-32050 |
ST20# |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-32050 |
ST20# |
2 | ||
| 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM | ||||
| 84231-20370 |
ST20# |
1 | ||
| 84242 - SWITCH, GLOVE BOX LAMP | ||||
| 84242-20030 |
ST20# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32090 |
ST20# |
1 | ||
| 84340-32110 |
ST204 W(CRUISE CONTOROL) |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
ST20#..RHD |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-14110 |
ST20# |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-20420 |
ST20#..RHD |
1 | ||
| 84862 - SWITCH, SLIDE ROOF MOTOR | ||||
| 84862-20050B2 |
ST20# LT.GRAY,TRIM2# |
1 | ||
| 84862-20050B0 |
ST20# LI.GRAY,TRIM2# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-20110 |
ST20# W(POWER WINDOW) |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-20180 |
ST20# LH |
1 | ||
| 84931-20130 |
ST20# RH |
1 | ||
| 85921 - RELAY, SLIDING ROOF CONTROL | ||||
| 85921-20100 |
ST20# |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-14100 |
ST20# |
1 | ||
| Common parts | ||||
| 82711-10380 | ||||
| 90119-06601 | ||||
| 90164-40103 | ||||
| 91511-60616 | ||||
| 93269-15008 | ||||
| 93315-14014 | ||||
| 93319-14008 | ||||
| 93319-A4010 | ||||
| 93568-15014 | ||||

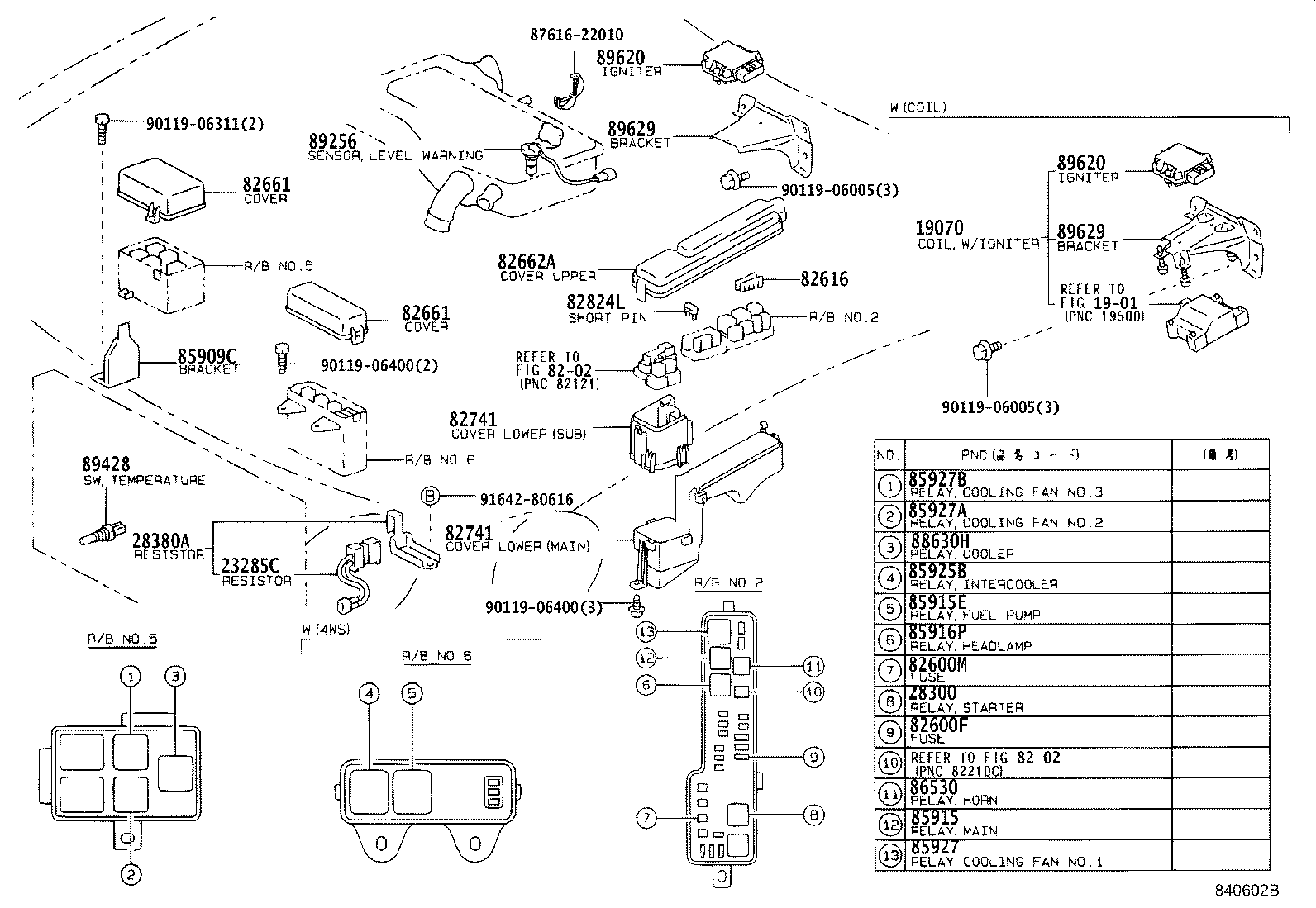

ILLUST NO. 2 OF 6(9311- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-10020 |
3S#,5SFE..ST20# |
1 | ||
| 28341-11010 |
3S#,5SFE..ST20#..MTM |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
ST20# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09011 |
ST20# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09008 |
ST20# 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09009 |
ST20# 10A,MINI FUSE,RED |
1 | ||
| 90982-09013 |
ST20# 30A,MINI FUSE,GRN |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10002 |
ST20# 40A,GREEN |
1 | ||
| 90982-10001 |
ST20# 30A,PINK |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-20010 |
ST20# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82662-20120 |
ST20# RELAY BLOCK NO.5 |
1 | ||
| 82662-20120 |
ST202,204..RHD |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82662-20120 |
ST20# RELAY BLOCK NO.5 |
1 | ||
| 82662-20120 |
ST202,204..RHD |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-20150 |
ST20# |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-20020 |
ST20# SUB |
1 | ||
| 82741-20010 |
ST20# MAIN |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-20020 |
ST20# SUB |
1 | ||
| 82741-20010 |
ST20# MAIN |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-20140 |
ST20# |
1 | ||
| 85909C - BRACKET SUB-ASSY, RELAY, NO.1 | ||||
| 85909-20020 |
ST20# |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-04002 |
ST20# |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
ST20# |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03003 |
ST20# |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-02009 |
ST20# |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90987-04003 |
ST20# |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 86530-20070 |
ST20# |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-02009 |
ST20# |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-33010 |
ST20# |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89621-26010 |
ST20# |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89621-26010 |
ST20# |
1 | ||
| 89629 - BRACKET, IGNITER ASSY | ||||
| 89629-20170 |
ST202,204 |
1 | ||
| 89629 - BRACKET, IGNITER ASSY | ||||
| 89629-20170 |
ST202,204 |
1 | ||
| Common parts | ||||
| 87616-22010 | ||||
| 90119-06005 | ||||
| 90119-06311 | ||||
| 90119-06400 | ||||
| 91642-80616 | ||||
| Linked diagrams | ||||
| 1901 | ||||
| 8202 | ||||

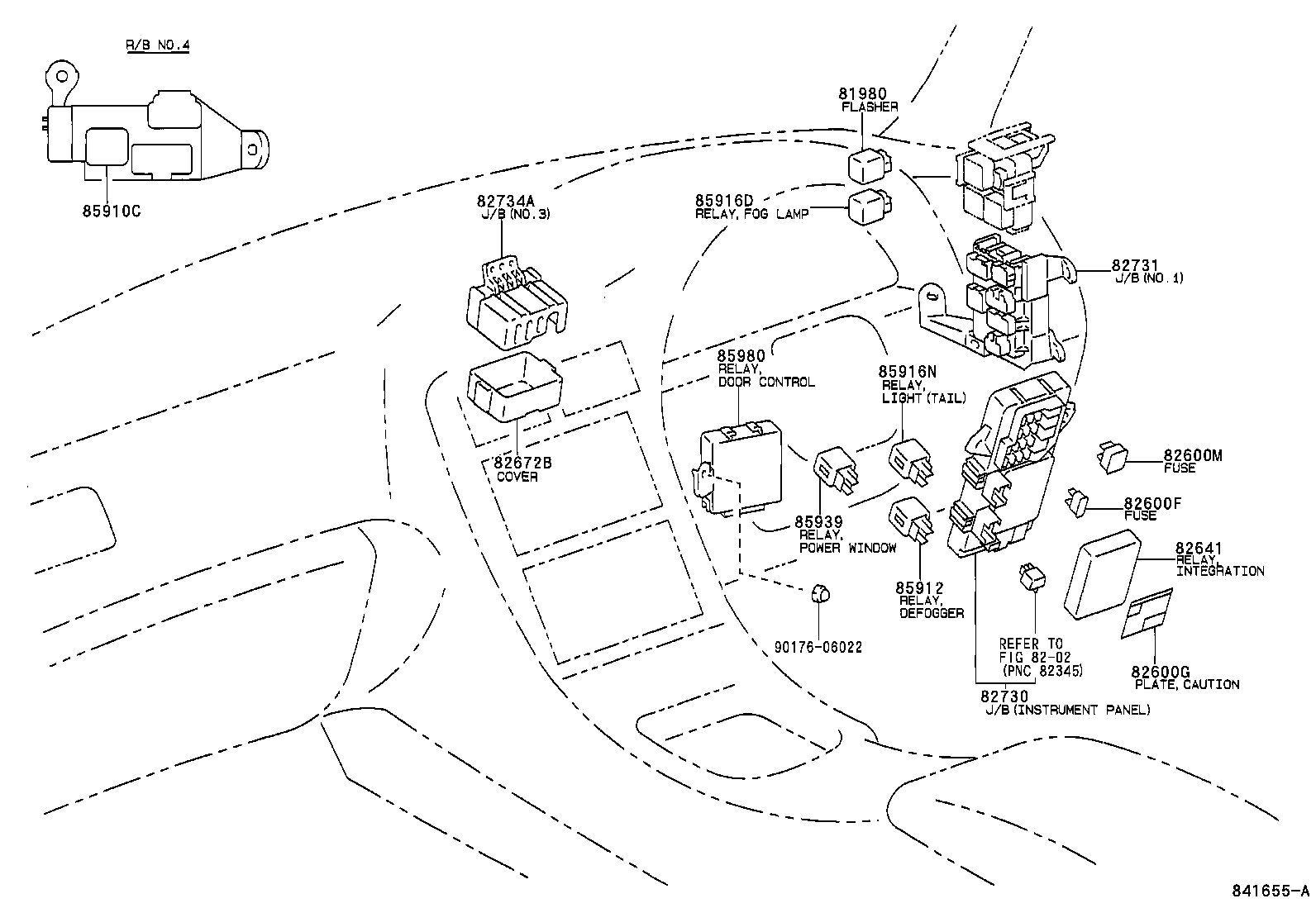

ILLUST NO. 4 OF 6(9311- )
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12110 |
ST20# |
1 | ||
| 81980-12070 |
ST20# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
ST20# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09011 |
ST20# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09008 |
ST20# 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09009 |
ST20# 10A,MINI FUSE,RED |
1 | ||
| 90982-09013 |
ST20# 30A,MINI FUSE,GRN |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-20121 |
ST20# |
1 | ||
| 82683-20120 |
ST20# |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10002 |
ST20# 40A,GREEN |
1 | ||
| 90982-10001 |
ST20# 30A,PINK |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-33010 |
ST204,205 |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-2B110 |
ST20# |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-20010 |
ST20#..RHD |
1 | ||
| 82731 - BLOCK, DRIVER SIDE JUNCTION | ||||
| 82731-20030 |
ST20#..RHD |
1 | ||
| 82731-20010 |
ST20#..RHD |
1 | ||
| 82734A - BLOCK, CENTER JUNCTION | ||||
| 82734-20020 |
ST20# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
ST20# |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02009 |
ST20# |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02009 |
ST20#..ARL,GEN |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02009 |
ST20# |
1 | ||
| 85939 - RELAY, POWER WINDOW | ||||
| 90987-02009 |
ST20# |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-20360 |
ST20#..RHD |
1 | ||
| Common parts | ||||
| 90176-06022 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 1 OF 6(9311- )ST204
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20040 |
ST202,204 |
1 | ||
| 83420-AA010 |
ST202,204 (L) |
1 | ||
| 83420-20040 |
ST202,204 (J) |
1 | ||
| 83420-16040 |
ST20# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60020 |
ST20# YAZAKI |
1 | ||
| 83530-28020 |
ST20# NIPPONDENSO |
1 | ||
| 83530-30090 |
ST20# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
ST20#..MTM |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-29775 |
ST204 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-29775 |
ST204 |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-20020 |
ST204 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20030 |
ST202,204 TOYOTA |
1 | ||
| 89615-33020 |
ST202,204 NIPPON DENSO |
1 | ||
| Common parts | ||||
| 90179-08059 | ||||
| 90430-18008 | ||||
| 91651-40620 | ||||

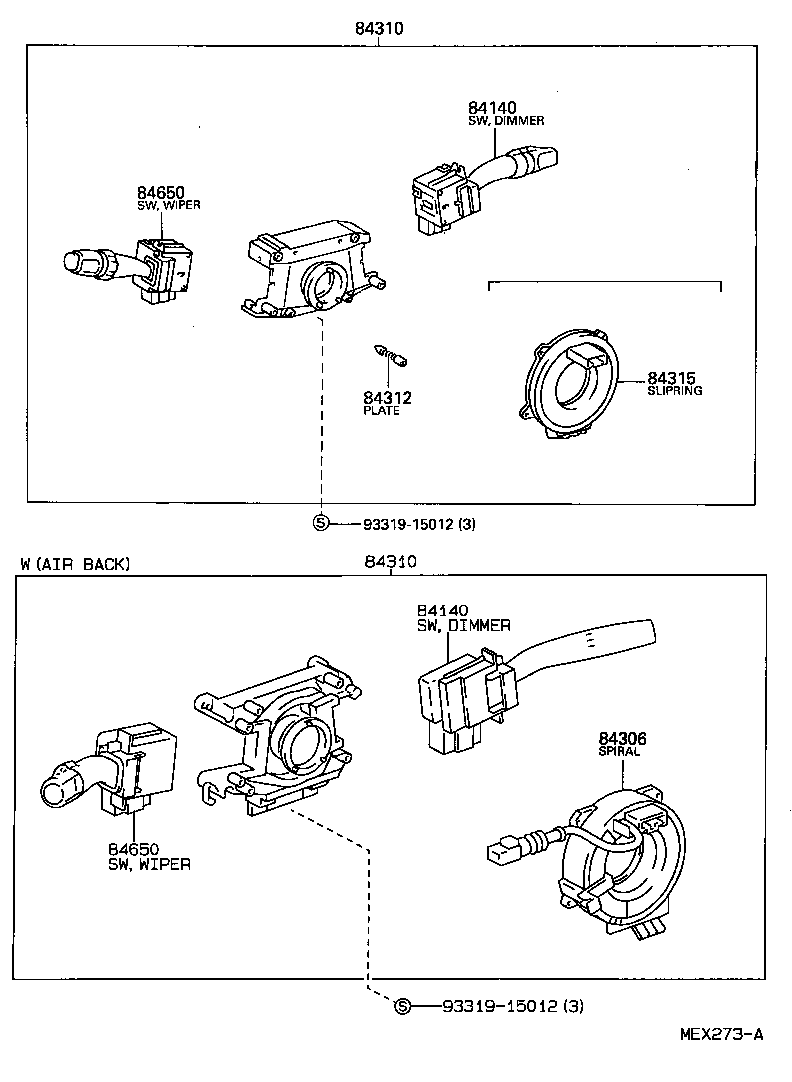

ILLUST NO. 5 OF 6(9311- )
COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-20440 |
ST20#..RHD W(*80 & CRUISE CONTROL) |
1 | ||
| 84140-20500 |
ST20#..RHD |
1 | ||
| 84140-20540 |
ST20#..RHD W(FOG LAMP) |
1 | ||
| 84140-20510 |
ST20#..RHD W(FOG LAMP) |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-20440 |
ST20#..RHD W(*80 & CRUISE CONTROL) |
1 | ||
| 84140-20500 |
ST20#..RHD |
1 | ||
| 84140-20540 |
ST20#..RHD W(FOG LAMP) |
1 | ||
| 84140-20510 |
ST20#..RHD W(FOG LAMP) |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-30110 |
ST204 |
1 | ||
| 84306-50120 |
ST204 |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-2H870 |
ST204 W(CRUISE CONTOROL) |
1 | ||
| 84310-2L280 |
ST204 W(*80 & CRUISE CONTROL & FOG LAMP) |
1 | ||
| 84310-2H880 |
ST204 W(CRUISE CONTROL & FOG LAMP) |
1 | ||
| 84310-2H860 |
ST20#..RHD W(FOG LAMP) |
1 | ||
| 84310-2L270 |
ST204 W(*80 & CRUISE CONTROL) |
1 | ||
| 84310-2H210 |
ST202,204..RHD |
1 | ||
| 84310-2L210 |
ST202,204..RHD W(FOG LAMP) |
1 | ||
| 84310-2H850 |
ST20#..RHD |
1 | ||
| 84310-1B210 |
ST204 W(*80 & CRUISE CONTROL & FOG LAMP) |
1 | ||
| 84310-2L640 |
ST204 W(*80 & CRUISE CONTROL) |
1 | ||
| 84310-2L230 |
ST204 W(CRUISE CONTROL & FOG LAMP) |
1 | ||
| 84310-2L220 |
ST204 W(CRUISE CONTOROL) |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-2H870 |
ST204 W(CRUISE CONTOROL) |
1 | ||
| 84310-2L280 |
ST204 W(*80 & CRUISE CONTROL & FOG LAMP) |
1 | ||
| 84310-2H880 |
ST204 W(CRUISE CONTROL & FOG LAMP) |
1 | ||
| 84310-2H860 |
ST20#..RHD W(FOG LAMP) |
1 | ||
| 84310-2L270 |
ST204 W(*80 & CRUISE CONTROL) |
1 | ||
| 84310-2H210 |
ST202,204..RHD |
1 | ||
| 84310-2L210 |
ST202,204..RHD W(FOG LAMP) |
1 | ||
| 84310-2H850 |
ST20#..RHD |
1 | ||
| 84310-1B210 |
ST204 W(*80 & CRUISE CONTROL & FOG LAMP) |
1 | ||
| 84310-2L640 |
ST204 W(*80 & CRUISE CONTROL) |
1 | ||
| 84310-2L230 |
ST204 W(CRUISE CONTROL & FOG LAMP) |
1 | ||
| 84310-2L220 |
ST204 W(CRUISE CONTOROL) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12050 |
ST20#..RHD |
1 | ||
| 84312-12050 |
ST202,204..RHD |
1 | ||
| 84315 - SLIPRING, HORN CONTACT | ||||
| 84315-20190 |
ST204 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-2D860 |
ST20#..RHD |
1 | ||
| 84652-2G280 |
ST20#..RHD |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-2D860 |
ST20#..RHD |
1 | ||
| 84652-2G280 |
ST20#..RHD |
1 | ||
| Common parts | ||||
| 93319-15012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
