ST204R-BLMSKQ (1993)
Toyota Celica
Production
Nov 1993
-
Aug 1999
Engine
5SFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9311- )ST204,205

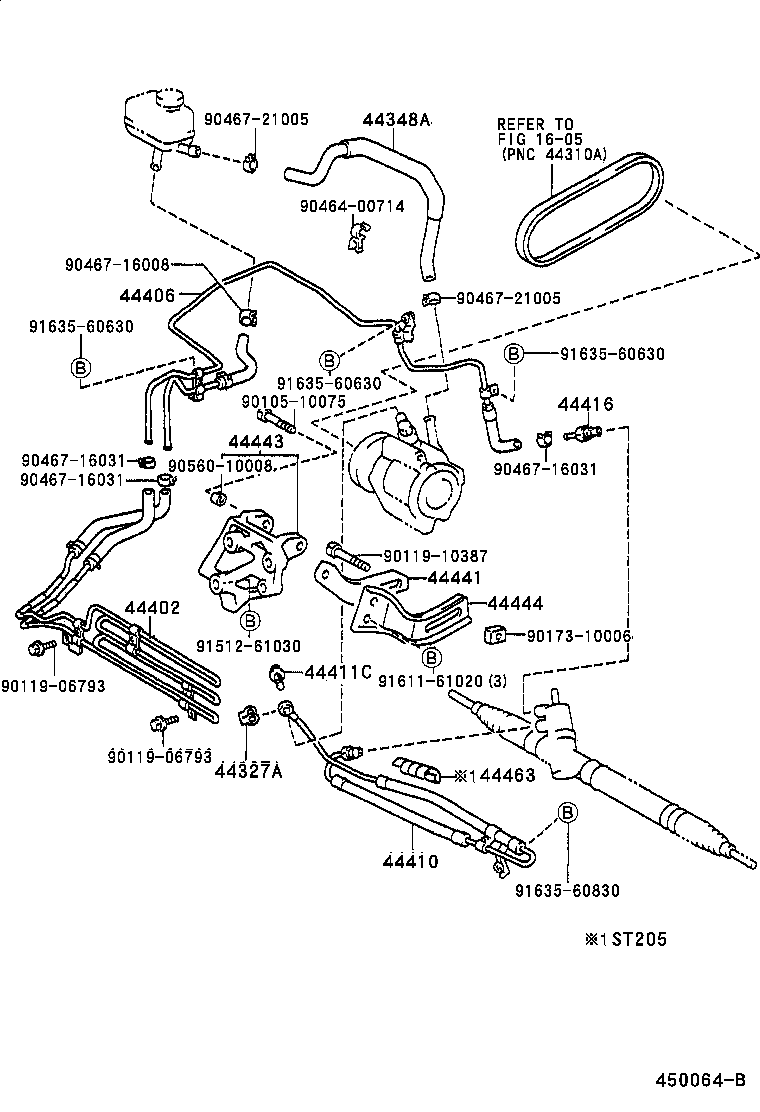

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-30030 |
ST20# |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-20500 |
ST202,204 |
1 | ||
| 44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1 | ||||
| 44402-20450 |
ST202,204..ARL,GCC |
1 | ||
| 44406 - TUBE SUB-ASSY, RETURN | ||||
| 44406-20600 |
ST204,205 |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-2B010 |
ST20#..RHD |
1 | ||
| 44410-2B240 |
ST20#..RHD |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 96341-41603 |
ST20# |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-20220 |
ST20#..RHD |
1 | ||
| 44441 - BRACKET, PUMP, FRONT | ||||
| 44441-32010 |
ST20# |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-20050 |
ST20# |
1 | ||
| 44444 - STAY, PUMP, REAR | ||||
| 44444-20030 |
ST20# |
1 | ||
| Common parts | ||||
| 90105-10075 | ||||
| 90119-06793 | ||||
| 90119-10387 | ||||
| 90173-10006 | ||||
| 90464-00714 | ||||
| 90467-16008 | ||||
| 90467-16031 | ||||
| 90467-21005 | ||||
| 90560-10008 | ||||
| 91512-61030 | ||||
| 91611-61020 | ||||
| 91635-60630 | ||||
| 91635-60830 | ||||
| Linked diagrams | ||||
| 1605 | ||||
