ST204R-BLMSKQ (1993)

Toyota Celica

Production Nov 1993 - Aug 1999
Engine 5SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9311-9508)3SFE,5SFE

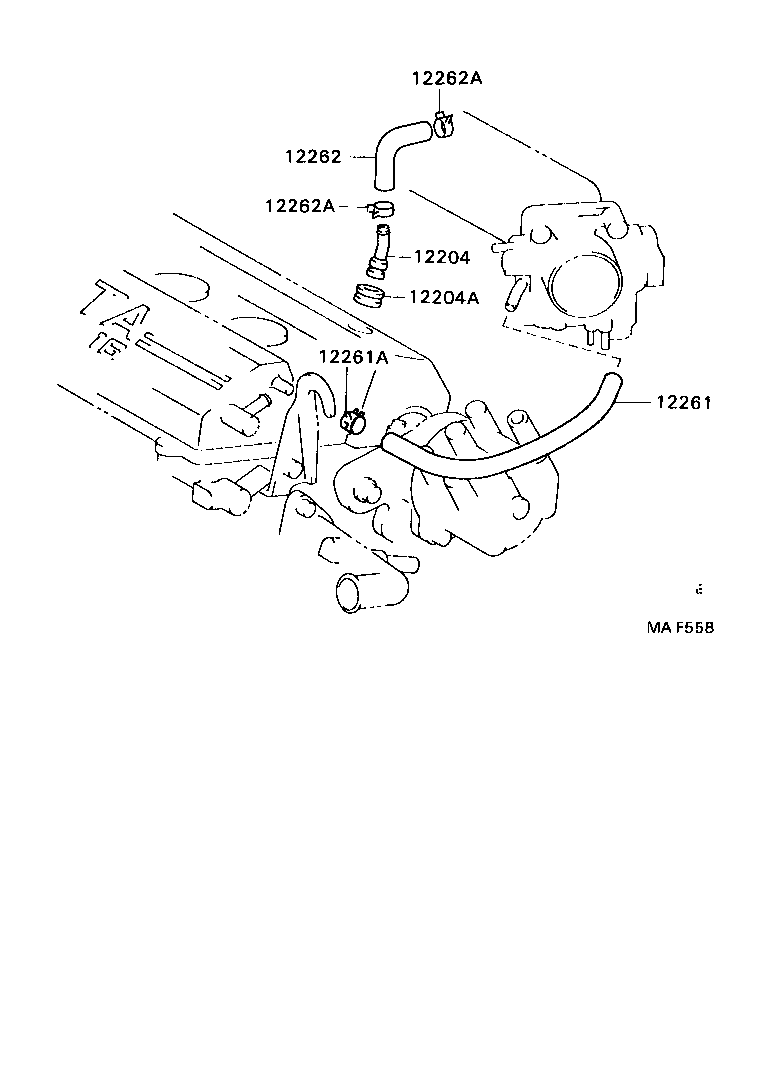

Click highlighted areas on diagram

diagram 12204 12204A 12261 12261A 12262 12262A 12262A
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-74020

3SFE,5SFE..ST202,204

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18001

3SFE,5SFE..ST202,204

 1
12261 - HOSE, VENTILATION
12261-74020

3SFE,5SFE..ST202,204

 1
12261-74260

3SFE,5SFE..ST202,204

 1
12261-74150

3SFE,5SFE..ST202,204

 1
12260-74080

3SFE,5SFE..ST202,204

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14043

3SFE,5SFE..ST202,204

 1
90467-15016

3SFE,5SFE..ST202,204

 1
90467-15022

3SFE,5SFE..ST202,204

 1
12262 - HOSE, VENTILATION, NO.2
12262-74050

3SFE,5SFE..ST202,204

 1
12262-74080

3SFE,5SFE..ST202,204

 1
12262-74081

3SFE,5SFE..ST202,204

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-15022

3SFE,5SFE..ST202,204

 2
90467-13103

3SFE,5SFE..ST202,204

SURGE TANK SIDE

 1
90467-15016

3SFE,5SFE..ST202,204

VALVE SIDE

 1
90467-14043

3SFE,5SFE..ST202,204

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-15022

3SFE,5SFE..ST202,204

 2
90467-13103

3SFE,5SFE..ST202,204

SURGE TANK SIDE

 1
90467-15016

3SFE,5SFE..ST202,204

VALVE SIDE

 1
90467-14043

3SFE,5SFE..ST202,204

 2

(9508- )3SFE,5SFE

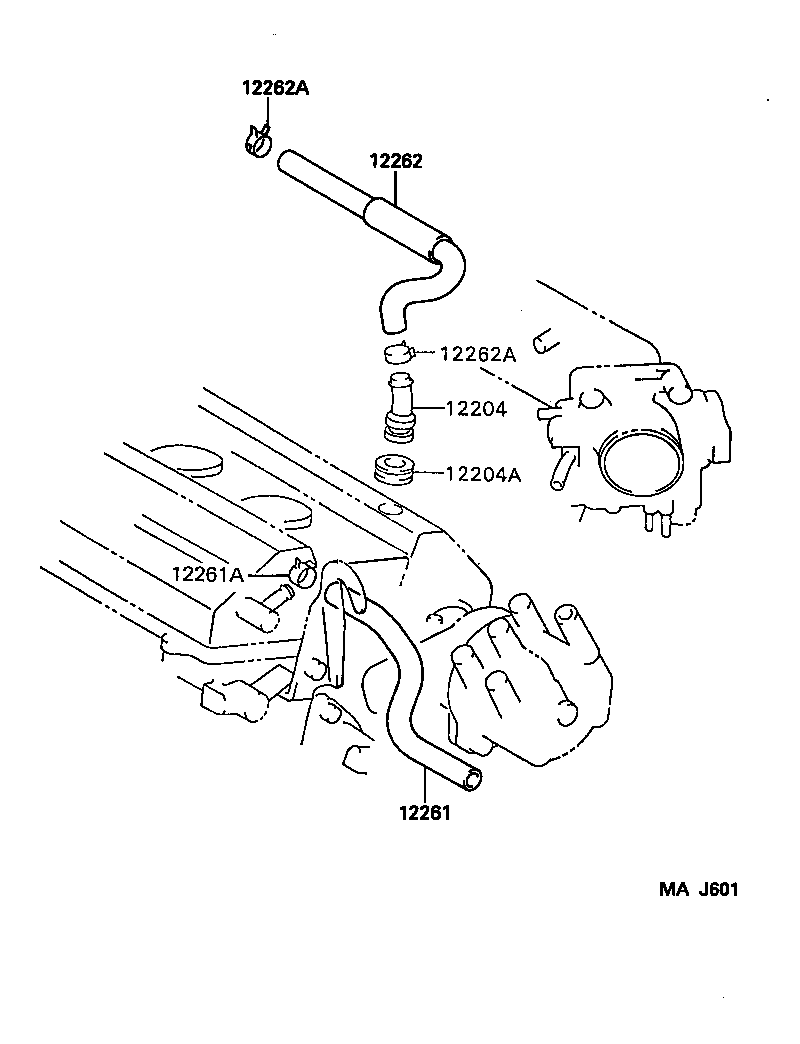

Click highlighted areas on diagram

diagram 12204 12204A 12261 12261A 12262 12262A 12262A
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-74020

3SFE,5SFE..ST202,204

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18001

3SFE,5SFE..ST202,204

 1
12261 - HOSE, VENTILATION
12261-74020

3SFE,5SFE..ST202,204

 1
12261-74260

3SFE,5SFE..ST202,204

 1
12261-74150

3SFE,5SFE..ST202,204

 1
12260-74080

3SFE,5SFE..ST202,204

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14043

3SFE,5SFE..ST202,204

 1
90467-15016

3SFE,5SFE..ST202,204

 1
90467-15022

3SFE,5SFE..ST202,204

 1
12262 - HOSE, VENTILATION, NO.2
12262-74050

3SFE,5SFE..ST202,204

 1
12262-74080

3SFE,5SFE..ST202,204

 1
12262-74081

3SFE,5SFE..ST202,204

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-15022

3SFE,5SFE..ST202,204

 2
90467-13103

3SFE,5SFE..ST202,204

SURGE TANK SIDE

 1
90467-15016

3SFE,5SFE..ST202,204

VALVE SIDE

 1
90467-14043

3SFE,5SFE..ST202,204

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-15022

3SFE,5SFE..ST202,204

 2
90467-13103

3SFE,5SFE..ST202,204

SURGE TANK SIDE

 1
90467-15016

3SFE,5SFE..ST202,204

VALVE SIDE

 1
90467-14043

3SFE,5SFE..ST202,204

 2
