ST202R-BLMSK (1993)
Toyota Celica
ILLUST NO. 2 OF 3(9311- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-33050 |
ST202,204 |
1 | ||
| 88412-2B030 |
ST202,204 |
1 | ||
| 88412-2B070 |
ST202 |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-2B090 |
ST20# |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-2B220 |
ST202..GEN |
1 | ||
| 88320-2B330 |
ST202..GEN |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
ST20# |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-30290 |
ST20# |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-33030 |
ST202,204 |
1 | ||
| 88410-2B220 |
ST202 |
1 | ||
| Common parts | ||||
| 88569-2B040 | ||||
| 90099-04349 | ||||
| 90099-07114 | ||||
| 90099-07125 | ||||
| 93319-15008 | ||||
ILLUST NO. 3 OF 3(9311-9508)ST204..MTM ; (9508- )ST202,204..ARL,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-32040 |
ST202,204 REAR |
1 | ||
| 88321-2B010 |
ST202 FRONT |
1 | ||
| 88322-2B010 |
ST202..GEN REAR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-32040 |
ST202,204 REAR |
1 | ||
| 88321-2B010 |
ST202 FRONT |
1 | ||
| 88322-2B010 |
ST202..GEN REAR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88342-22010 |
ST202,204 |
1 | ||
| 88342-20030 |
ST204..ATM;ST202,205..ARL,GEN |
1 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 88335-2B020 |
ST202..GEN;ST204..ATM |
1 | ||
| 88335-2B030 |
ST202,204 |
1 | ||
| 88341 - PLATE, FRONT VALVE | ||||
| 88341-22010 |
ST20# |
1 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-14020 |
ST202,205;ST204..ATM |
1 | ||
| 88343-14020 |
ST202..GEN |
2 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-14020 |
ST202,205;ST204..ATM |
1 | ||
| 88343-14020 |
ST202..GEN |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-22010 |
ST202,204 |
2 | ||
| 88344-22010 |
ST204..ATM;ST202,205..ARL,GEN |
1 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-22010 |
ST202,204 |
2 | ||
| 88344-22010 |
ST204..ATM;ST202,205..ARL,GEN |
1 | ||
| 88346 - SENSOR,COMPRESSOR | ||||
| 88336-2B110 |
ST202,204..ARL,GEN |
1 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90022 |
ST20# |
1 | ||
| 88360C - SEAL ASSY, SHAFT | ||||
| 88360-2B020 |
ST20#..ARL,GEN |
1 | ||
| 88371A - VALVE, SUCTION | ||||
| 88371-2B120 |
ST20#..ARL,GEN |
1 | ||
| Common parts | ||||
| 90099-04924 | ||||
| 90099-04958 | ||||
| 90099-08058 | ||||
ILLUST NO. 3 OF 3(9311-9508)ST204..ATM ; (9311-9508)ST202,205..ARL,GEN ; (9508- )ST205
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88309B - PLUNGER SUB-ASSY | ||||
| 88309-2B020 |
ST204..ATM;ST202,205..ARL,GEN |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-32040 |
ST202,204 REAR |
1 | ||
| 88321-2B010 |
ST202 FRONT |
1 | ||
| 88322-2B010 |
ST202..GEN REAR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-32040 |
ST202,204 REAR |
1 | ||
| 88321-2B010 |
ST202 FRONT |
1 | ||
| 88322-2B010 |
ST202..GEN REAR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88342-22010 |
ST202,204 |
1 | ||
| 88342-20030 |
ST204..ATM;ST202,205..ARL,GEN |
1 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-32010 |
ST204..ATM;ST202,205..ARL,GEN |
1 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 88335-2B020 |
ST202..GEN;ST204..ATM |
1 | ||
| 88335-2B030 |
ST202,204 |
1 | ||
| 88341 - PLATE, FRONT VALVE | ||||
| 88341-22010 |
ST20# |
1 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-14020 |
ST202,205;ST204..ATM |
1 | ||
| 88343-14020 |
ST202..GEN |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-22010 |
ST202,204 |
2 | ||
| 88344-22010 |
ST204..ATM;ST202,205..ARL,GEN |
1 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90022 |
ST20# |
1 | ||
| 88360C - SEAL ASSY, SHAFT | ||||
| 88360-2B020 |
ST20#..ARL,GEN |
1 | ||
| 88371A - VALVE, SUCTION | ||||
| 88371-2B120 |
ST20#..ARL,GEN |
1 | ||
| 88376A - CAP, COMPRESSOR | ||||
| 88376-32010 |
ST204..ATM;ST202,205..ARL,GEN |
1 | ||
| 88391A - VALVE, FLOAT | ||||
| 88391-32010 |
ST204..ATM;ST202,205..ARL,GEN |
1 | ||
| 88393A - PLATE, STOPPER | ||||
| 88393-32010 |
ST204..ATM;ST202,205..ARL,GEN |
1 | ||
| 88394 - SPRING, COMPRESSOR | ||||
| 88394-32010 |
ST204..ATM;ST202,205..ARL,GEN |
1 | ||
| 88691Y - VALVE, MAGNET | ||||
| 88691-2B010 |
ST204..ATM;ST202,205..ARL,GEN |
1 | ||
| 88890A - PICK UP, ASSY | ||||
| 88336-2B090 |
ST204..ATM;ST202,205..ARL,GEN |
1 | ||
| Common parts | ||||
| 88569-20090 | ||||
| 90099-04111 | ||||
| 90099-04437 | ||||
| 90099-04589 | ||||
| 90099-04924 | ||||
| 90099-08058 | ||||
| 93319-15008 | ||||

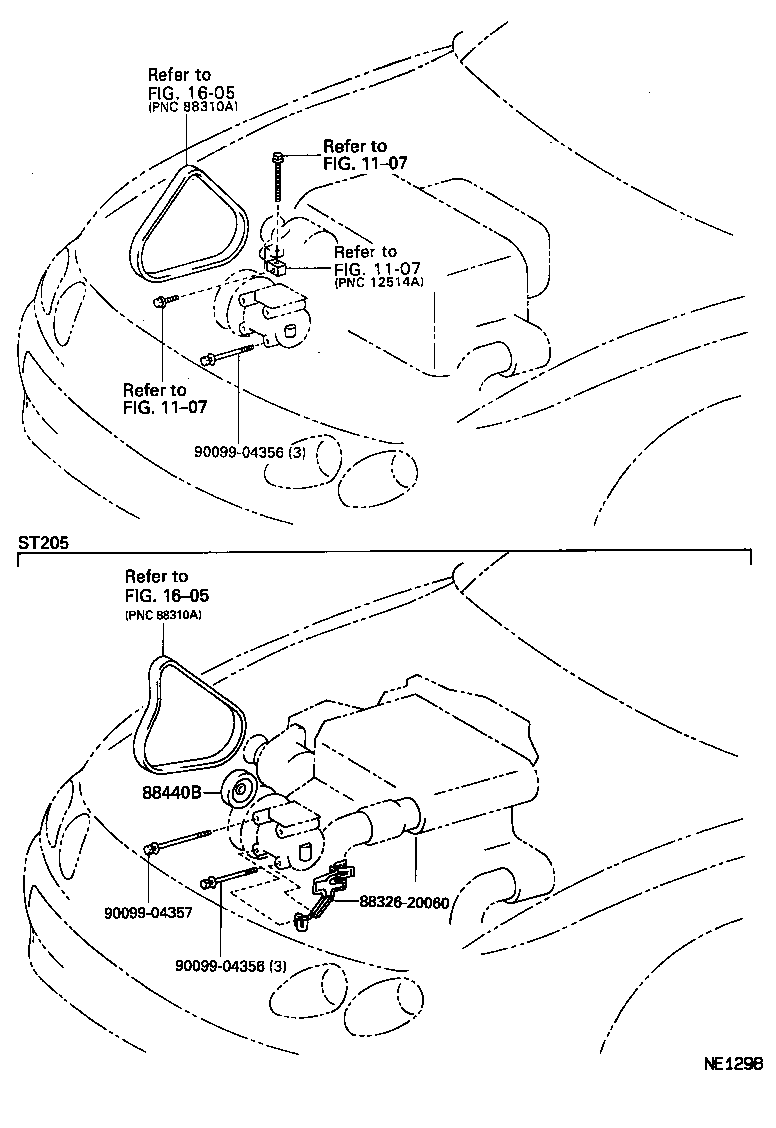

ILLUST NO. 1 OF 3(9311- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88326-20060 | ||||
| 90099-04356 | ||||
| 90099-04357 | ||||
| Linked diagrams | ||||
| 1107 | ||||
| 1605 | ||||
