ST202R-BLMSK (1993)
Toyota Celica
Production
Nov 1993
-
Aug 1999
Engine
3SFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

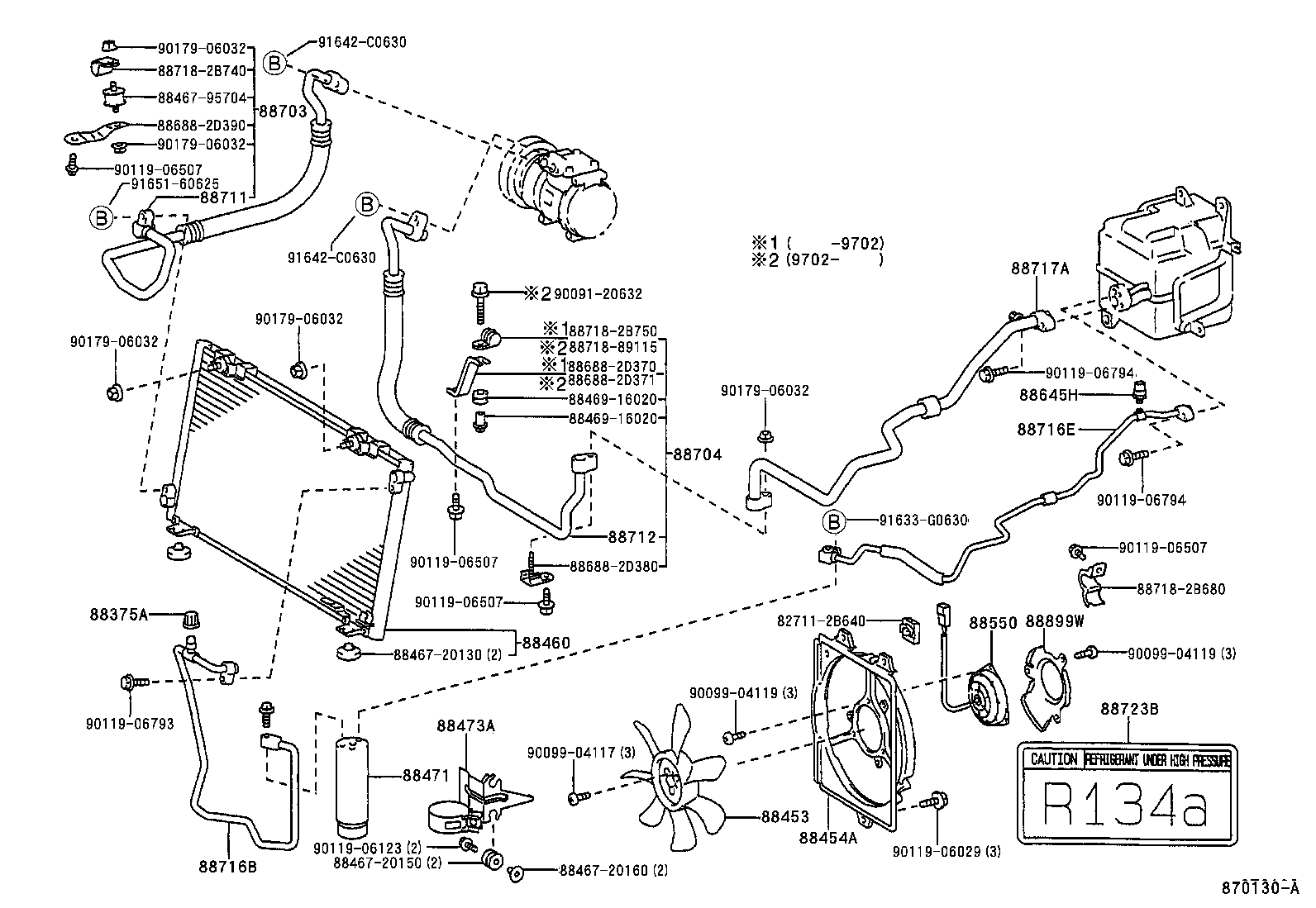

ILLUST NO. 1 OF 2(9311- )RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
ST20# |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-20070 |
ST20# |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-20140 |
ST20# |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-20440 |
ST202,205;ST204..MTM |
1 | ||
| 88460-20470 |
ST202 |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-20050 |
ST20# |
1 | ||
| 88473A - HOLDER, RECEIVER | ||||
| 88472-20170 |
ST20# |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-12130 |
ST20# |
1 | ||
| 16363-46030 |
ST20# |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-20050 |
ST20# |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-20120 |
ST202,204 |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-20150 |
ST202,204..RHD |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-2B130 |
ST202,204 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-2B510 |
ST202,204..RHD |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88706-20130 |
ST20# |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-2D290 |
ST20#..RHD |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-2B460 |
ST20#..RHD |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-20040 |
ST20# |
1 | ||
| 88899W - SUPPORT SUB-ASSY, B | ||||
| 88899-20270 |
ST202,204 |
1 | ||
| Common parts | ||||
| 82711-2B640 | ||||
| 88467-20130 | ||||
| 88467-20150 | ||||
| 88467-20160 | ||||
| 88467-95704 | ||||
| 88469-16020 | ||||
| 88688-2D370 | ||||
| 88688-2D371 | ||||
| 88688-2D380 | ||||
| 88688-2D390 | ||||
| 88718-2B680 | ||||
| 88718-2B740 | ||||
| 88718-2B750 | ||||
| 88718-89115 | ||||
| 90091-20632 | ||||
| 90099-04117 | ||||
| 90099-04119 | ||||
| 90119-06029 | ||||
| 90119-06123 | ||||
| 90119-06507 | ||||
| 90119-06793 | ||||
| 90119-06794 | ||||
| 90179-06032 | ||||
| 91633-G0630 | ||||
| 91642-C0630 | ||||
| 91651-60625 | ||||
ILLUST NO. 2 OF 2(9311- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14044 | ||||
| 90099-14045 | ||||
| 90099-14046 | ||||
| 90099-14056 | ||||
| 90099-14067 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90099-14125 | ||||
