ST202R-BLMSK (1993)

Toyota Celica

Production Nov 1993 - Aug 1999
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9311- )RHD

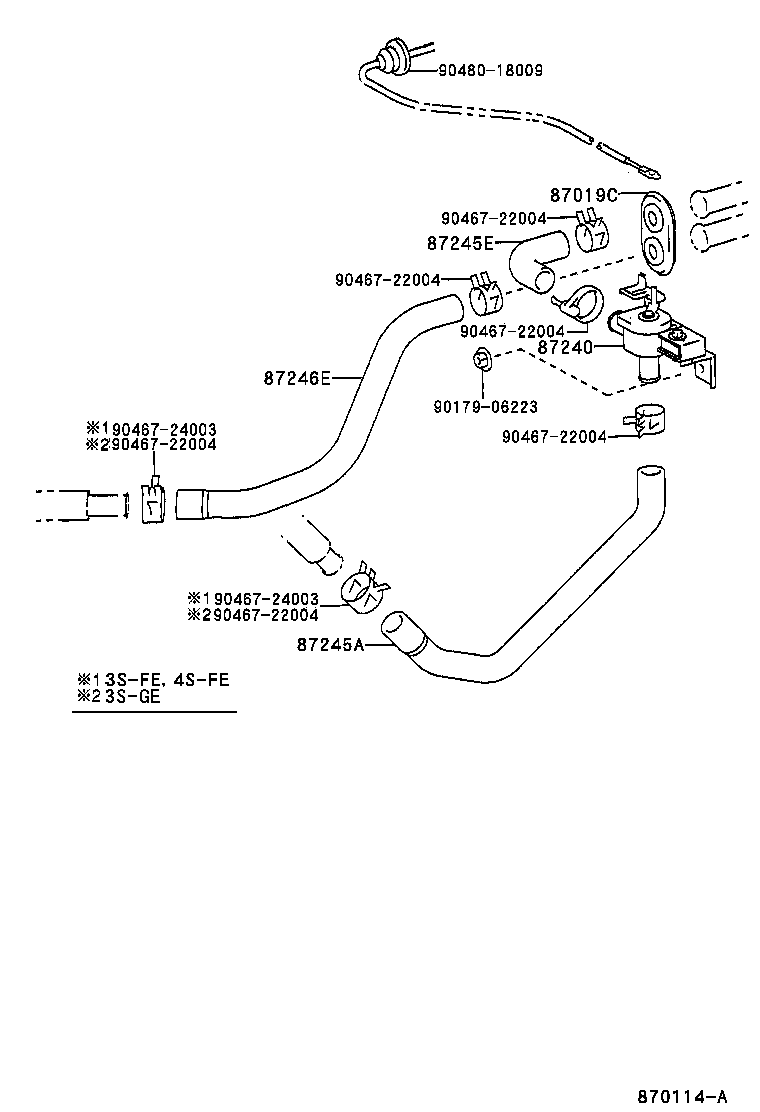

Click highlighted areas on diagram

diagram 87019C 87240 87245A 87245E 87246E 9017906223 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9046724003 9046724003 9048018009
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-01405

ST20#..RHD

 1
87240 - VALVE ASSY, HEATER WATER
87240-20410

ST20#..RHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-2D020

ST202,204..RHD

 1
87245-2D260

ST202,204..RHD

 1
87245E - HOSE, HEATER WATER, INLET E
87245-2B510

ST20#..RHD

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-2D030

ST202,204..RHD

 1
87245-2D270

ST202,204..RHD

 1
Common parts
90179-06223
90467-22004
90467-24003
90480-18009
