ST202R-BLMSK (1993)

Toyota Celica

Production Nov 1993 - Aug 1999
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9311- )RHD

Click highlighted areas on diagram

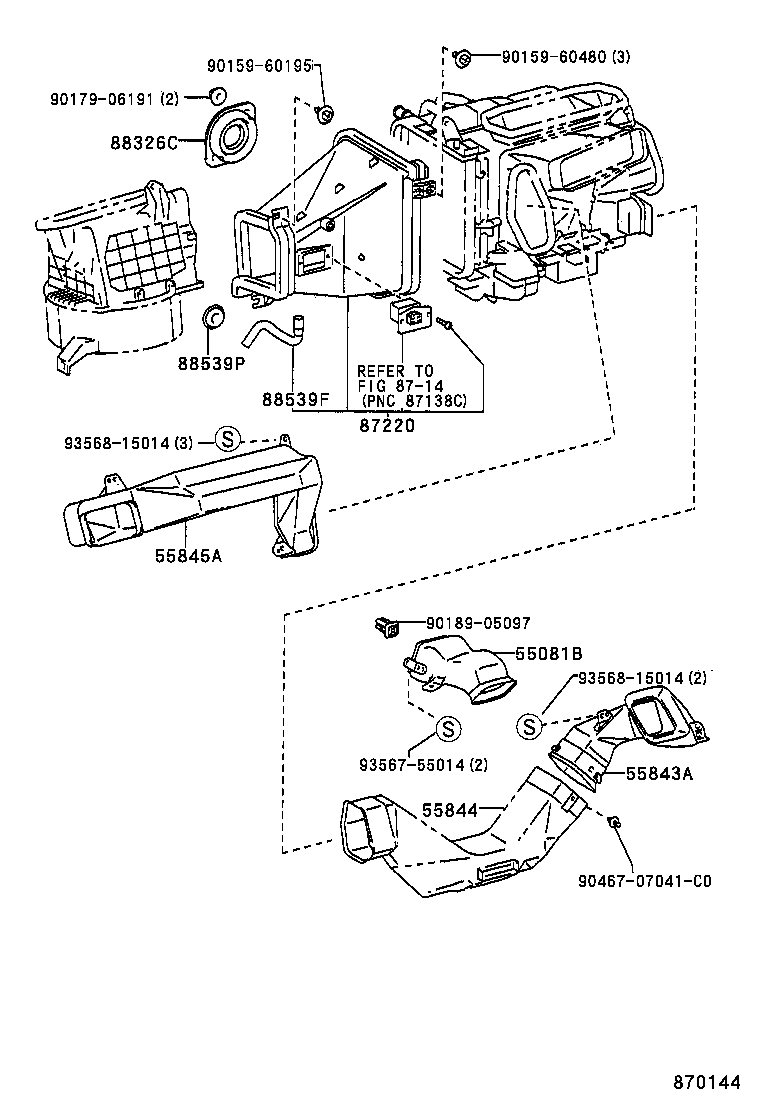

DUCT

diagram 55081B 55843A 55844 55845A 8714 87220 88326C 88539F 88539P 9015960195 9015960480 9017906191 9018905097 9046707041C0 9356755014 9356815014 9356815014
Part # Description Qty Price
55081B - DUCT SUB-ASSY, COWL TO REGISTER
55081-20050

ST20#..RHD

 1
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-20300

ST20#..RHD

 1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-20300

ST202..RHD

 1
55845A - DUCT, HEATER TO REGISTER, NO.3
55845-20240

ST20#..RHD

 1
55845-20280

ST20#..RHD

 1
Common parts
90159-60195
90159-60480
90179-06191
90189-05097
90467-07041C0
93567-55014
93568-15014
Linked diagrams
8714

ILLUST NO. 1 OF 2(9311- )ST202..RHD

Click highlighted areas on diagram

CONTROL

diagram 55900A 55900B 55902B 55905A 55905A 55905A 55905A 55905A 55905A 55905A 55905A 55905A 55905A 55905A 55907A 55909A 8401 9356755014
Part # Description Qty Price
55900A - CONTROL & ACCESSORY ASSY, HEATER
55900-2B210

ST202..RHD

 1
55900B - BULB, AIR CONDITIONER CONTROL
84999-70007

ST20#

14V 1.4W

 3
55902B - CONTROL SUB-ASSY, HEATER
55902-20140

ST20#..RHD

 1
55905A - KNOB, HEATER CONTROL
55905-2B300

ST202..RHD

A/C

 1
55905-2B340

ST20#

FOOT

 1
55905-2B330

ST20#

BI-LEVEL

 1
55905-2B380

ST20#

RECIRC/FRESH

 1
55905-2B320

ST20#

FACE

 1
55905-2B350

ST20#

FOOT/DEF

 1
55905-33030

ST20#

TEMP

 1
55905-2B370

ST20#..RHD

REAR DEF

 1
55905-2B390

ST20#..RHD

BLOW

 1
55905-2B360

ST20#

DEF

 1
55905-2B310

ST202..RHD

ECON

 1
55905A - KNOB, HEATER CONTROL
55905-2B300

ST202..RHD

A/C

 1
55905-2B340

ST20#

FOOT

 1
55905-2B330

ST20#

BI-LEVEL

 1
55905-2B380

ST20#

RECIRC/FRESH

 1
55905-2B320

ST20#

FACE

 1
55905-2B350

ST20#

FOOT/DEF

 1
55905-33030

ST20#

TEMP

 1
55905-2B370

ST20#..RHD

REAR DEF

 1
55905-2B390

ST20#..RHD

BLOW

 1
55905-2B360

ST20#

DEF

 1
55905-2B310

ST202..RHD

ECON

 1
55905A - KNOB, HEATER CONTROL
55905-2B300

ST202..RHD

A/C

 1
55905-2B340

ST20#

FOOT

 1
55905-2B330

ST20#

BI-LEVEL

 1
55905-2B380

ST20#

RECIRC/FRESH

 1
55905-2B320

ST20#

FACE

 1
55905-2B350

ST20#

FOOT/DEF

 1
55905-33030

ST20#

TEMP

 1
55905-2B370

ST20#..RHD

REAR DEF

 1
55905-2B390

ST20#..RHD

BLOW

 1
55905-2B360

ST20#

DEF

 1
55905-2B310

ST202..RHD

ECON

 1
55905A - KNOB, HEATER CONTROL
55905-2B300

ST202..RHD

A/C

 1
55905-2B340

ST20#

FOOT

 1
55905-2B330

ST20#

BI-LEVEL

 1
55905-2B380

ST20#

RECIRC/FRESH

 1
55905-2B320

ST20#

FACE

 1
55905-2B350

ST20#

FOOT/DEF

 1
55905-33030

ST20#

TEMP

 1
55905-2B370

ST20#..RHD

REAR DEF

 1
55905-2B390

ST20#..RHD

BLOW

 1
55905-2B360

ST20#

DEF

 1
55905-2B310

ST202..RHD

ECON

 1
55905A - KNOB, HEATER CONTROL
55905-2B300

ST202..RHD

A/C

 1
55905-2B340

ST20#

FOOT

 1
55905-2B330

ST20#

BI-LEVEL

 1
55905-2B380

ST20#

RECIRC/FRESH

 1
55905-2B320

ST20#

FACE

 1
55905-2B350

ST20#

FOOT/DEF

 1
55905-33030

ST20#

TEMP

 1
55905-2B370

ST20#..RHD

REAR DEF

 1
55905-2B390

ST20#..RHD

BLOW

 1
55905-2B360

ST20#

DEF

 1
55905-2B310

ST202..RHD

ECON

 1
55905A - KNOB, HEATER CONTROL
55905-2B300

ST202..RHD

A/C

 1
55905-2B340

ST20#

FOOT

 1
55905-2B330

ST20#

BI-LEVEL

 1
55905-2B380

ST20#

RECIRC/FRESH

 1
55905-2B320

ST20#

FACE

 1
55905-2B350

ST20#

FOOT/DEF

 1
55905-33030

ST20#

TEMP

 1
55905-2B370

ST20#..RHD

REAR DEF

 1
55905-2B390

ST20#..RHD

BLOW

 1
55905-2B360

ST20#

DEF

 1
55905-2B310

ST202..RHD

ECON

 1
55905A - KNOB, HEATER CONTROL
55905-2B300

ST202..RHD

A/C

 1
55905-2B340

ST20#

FOOT

 1
55905-2B330

ST20#

BI-LEVEL

 1
55905-2B380

ST20#

RECIRC/FRESH

 1
55905-2B320

ST20#

FACE

 1
55905-2B350

ST20#

FOOT/DEF

 1
55905-33030

ST20#

TEMP

 1
55905-2B370

ST20#..RHD

REAR DEF

 1
55905-2B390

ST20#..RHD

BLOW

 1
55905-2B360

ST20#

DEF

 1
55905-2B310

ST202..RHD

ECON

 1
55905A - KNOB, HEATER CONTROL
55905-2B300

ST202..RHD

A/C

 1
55905-2B340

ST20#

FOOT

 1
55905-2B330

ST20#

BI-LEVEL

 1
55905-2B380

ST20#

RECIRC/FRESH

 1
55905-2B320

ST20#

FACE

 1
55905-2B350

ST20#

FOOT/DEF

 1
55905-33030

ST20#

TEMP

 1
55905-2B370

ST20#..RHD

REAR DEF

 1
55905-2B390

ST20#..RHD

BLOW

 1
55905-2B360

ST20#

DEF

 1
55905-2B310

ST202..RHD

ECON

 1
55905A - KNOB, HEATER CONTROL
55905-2B300

ST202..RHD

A/C

 1
55905-2B340

ST20#

FOOT

 1
55905-2B330

ST20#

BI-LEVEL

 1
55905-2B380

ST20#

RECIRC/FRESH

 1
55905-2B320

ST20#

FACE

 1
55905-2B350

ST20#

FOOT/DEF

 1
55905-33030

ST20#

TEMP

 1
55905-2B370

ST20#..RHD

REAR DEF

 1
55905-2B390

ST20#..RHD

BLOW

 1
55905-2B360

ST20#

DEF

 1
55905-2B310

ST202..RHD

ECON

 1
55905A - KNOB, HEATER CONTROL
55905-2B300

ST202..RHD

A/C

 1
55905-2B340

ST20#

FOOT

 1
55905-2B330

ST20#

BI-LEVEL

 1
55905-2B380

ST20#

RECIRC/FRESH

 1
55905-2B320

ST20#

FACE

 1
55905-2B350

ST20#

FOOT/DEF

 1
55905-33030

ST20#

TEMP

 1
55905-2B370

ST20#..RHD

REAR DEF

 1
55905-2B390

ST20#..RHD

BLOW

 1
55905-2B360

ST20#

DEF

 1
55905-2B310

ST202..RHD

ECON

 1
55905A - KNOB, HEATER CONTROL
55905-2B300

ST202..RHD

A/C

 1
55905-2B340

ST20#

FOOT

 1
55905-2B330

ST20#

BI-LEVEL

 1
55905-2B380

ST20#

RECIRC/FRESH

 1
55905-2B320

ST20#

FACE

 1
55905-2B350

ST20#

FOOT/DEF

 1
55905-33030

ST20#

TEMP

 1
55905-2B370

ST20#..RHD

REAR DEF

 1
55905-2B390

ST20#..RHD

BLOW

 1
55905-2B360

ST20#

DEF

 1
55905-2B310

ST202..RHD

ECON

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-20370

ST20#..RHD

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-20230

ST20#..RHD

 1
Common parts
93567-55014
Linked diagrams
8401
