ST202R-BLMSK (1993)

Toyota Celica

Production Nov 1993 - Aug 1999
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9311- )

Click highlighted areas on diagram

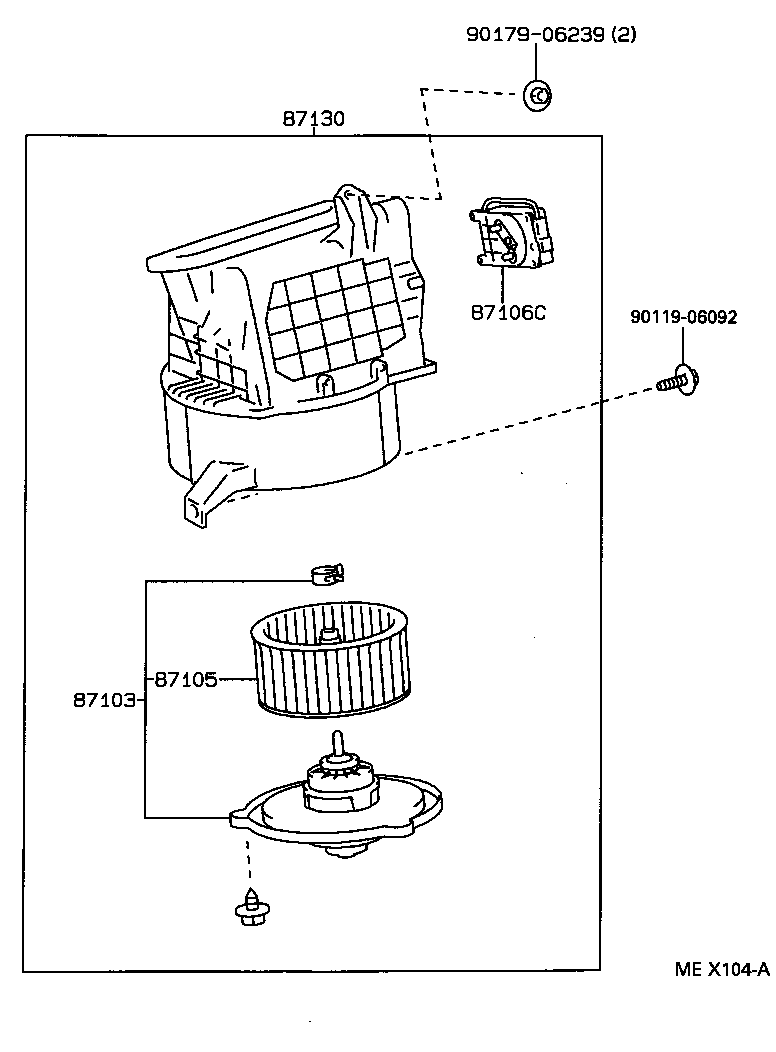

BLOWER

diagram 87103 87105 87106C 87130 9011906092 9017906239
Part # Description Qty Price
87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
87103-20050

ST20#..RHD

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-20100

ST20#..RHD

 1
87106C - SERVO SUB-ASSY, DAMPER(FOR BLOWER)
87106-20160

ST20#..RHD

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-20570

ST20#..RHD

 1
Common parts
90119-06092
90179-06239

ILLUST NO. 2 OF 2(9311-9508)

Click highlighted areas on diagram

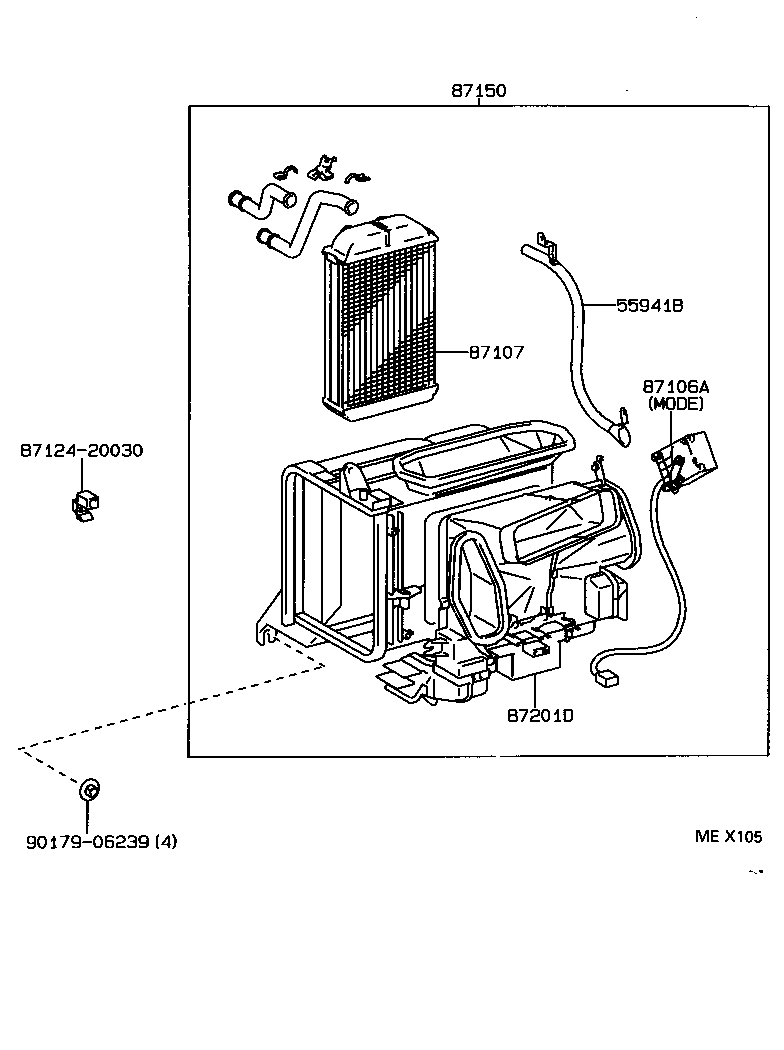

RADIATOR

diagram 55941B 87106A 87107 8712420030 87150 87201D 9017906239
Part # Description Qty Price
55941B - GUIDE, HEATER CONTROL
55941-20090

ST20#..RHD

 1
87106A - SERVO SUB-ASSY, DAMPER
87106-20280

ST20#..RHD

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-20630

ST20#..RHD

 1
87150 - RADIATOR ASSY, HEATER
87150-2B390

ST20#..RHD

 1
87150-2B300

ST20#..RHD

 1
87201D - DUCT SUB-ASSY, AIR
87201-20360

ST20#..RHD

 1
87201-20361

ST20#..RHD

 1
Common parts
87124-20030
90179-06239

ILLUST NO. 2 OF 2(9508- )

Click highlighted areas on diagram

RADIATOR

diagram 55941B 87106A 87107 8712420030 87150 87201D 9017906239
Part # Description Qty Price
55941B - GUIDE, HEATER CONTROL
55941-20090

ST20#..RHD

 1
87106A - SERVO SUB-ASSY, DAMPER
87106-20280

ST20#..RHD

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-20630

ST20#..RHD

 1
87150 - RADIATOR ASSY, HEATER
87150-2B390

ST20#..RHD

 1
87150-2B300

ST20#..RHD

 1
87201D - DUCT SUB-ASSY, AIR
87201-20360

ST20#..RHD

 1
87201-20361

ST20#..RHD

 1
Common parts
87124-20030
90179-06239
