ST202R-BLMSK (1993)

Toyota Celica

Production Nov 1993 - Aug 1999
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

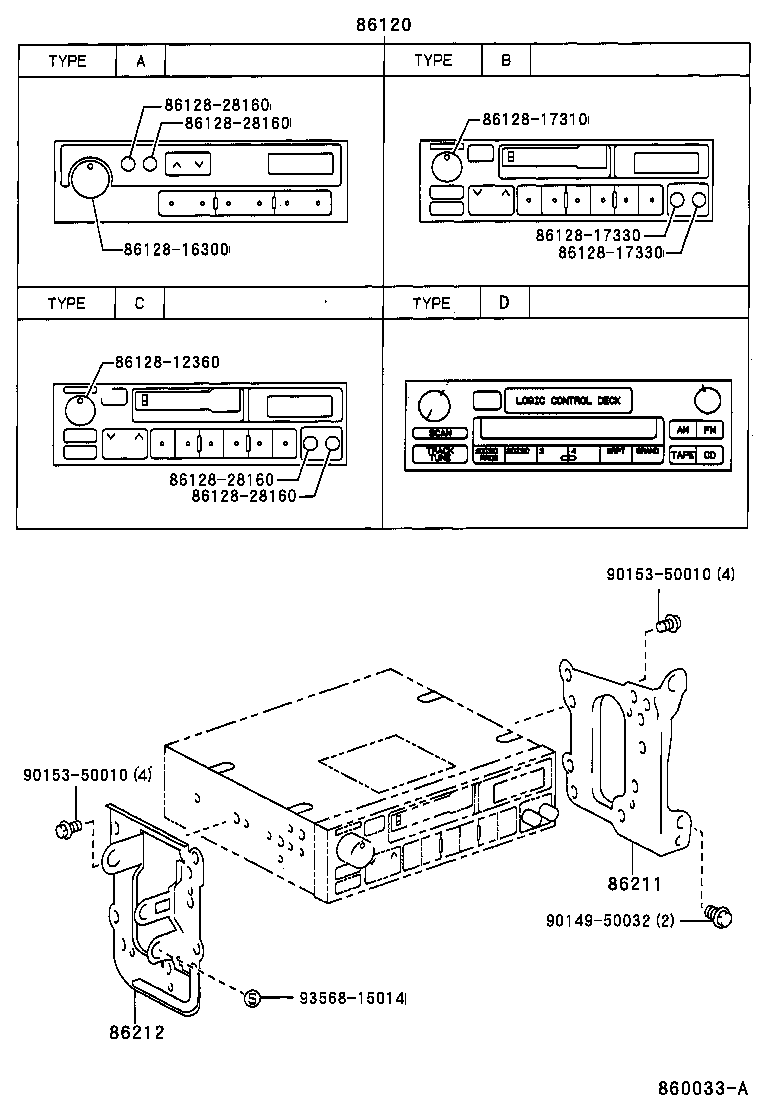

ILLUST NO. 1 OF 2(9311- )

Click highlighted areas on diagram

diagram 86120 8612812360 8612816300 8612817310 8612817330 8612817330 8612828160 8612828160 8612828160 8612828160 86211 86212 9014950032 9015350010 9015350010 9356815014
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-2B400

ST202

FUJITSU TEN,TYPE C:REFER TO ILLUSTRATION

 1
86120-2B350

ST202..GEN

FUJITSU TEN,TYPE A:REFER TO ILLUSTRATION

 1
86120-2B610

ST202

FUJITSU TEN,ID=17411,TYPE D:REFER TO ILLUSTRATION,TEN

 1
86120-2B620

ST202..GEN

MATSUSHITA,ID=57410,TYPE D:REFER TO ILLUSTRATION,MATSUSHITA

 1
86120-2B360

ST202..GEN

MATSUSHITA,ID=57400,TYPE B:REFER TO ILLUSTRATION

 1
86211 - BRACKET, RADIO, NO.1
86211-20360

ST20#..RHD

 1
86212 - BRACKET, RADIO, NO.2
86212-20360

ST20#..RHD

 1
Common parts
86128-12360
86128-16300
86128-17310
86128-17330
86128-28160
90149-50032
90153-50010
93568-15014

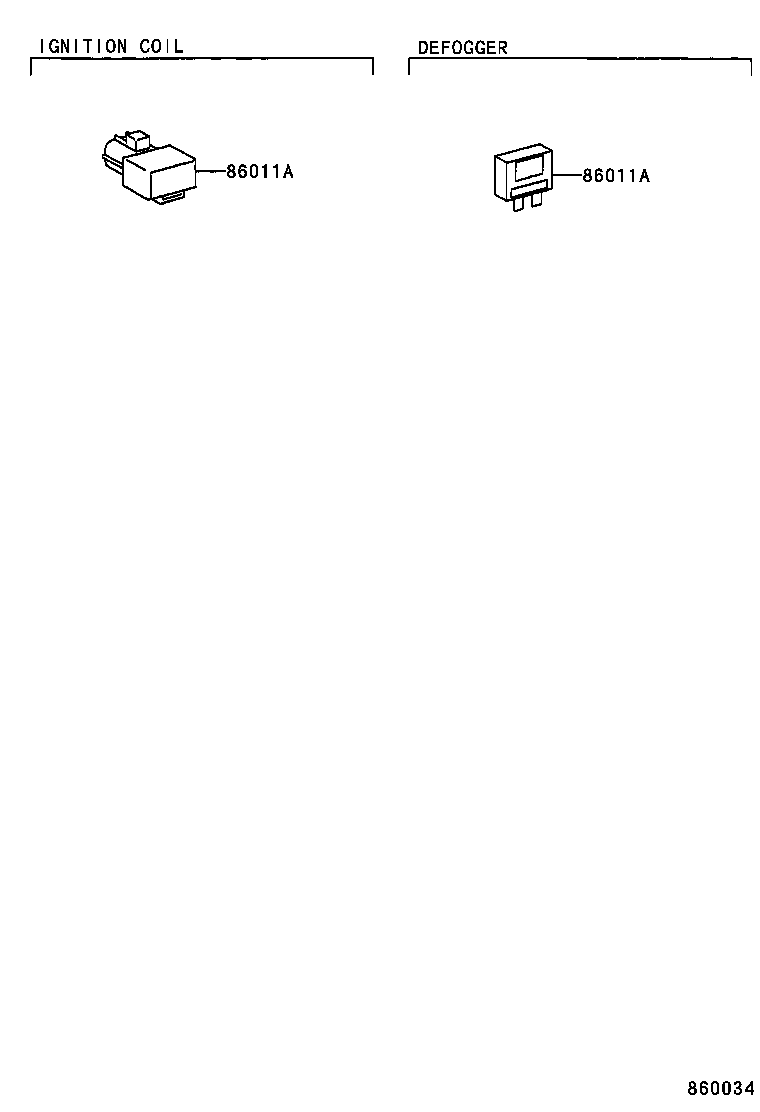

ILLUST NO. 2 OF 2(9311- )

Click highlighted areas on diagram

diagram 86011A 86011A
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04066

ST20#

DEFOGGER

 2
86011A - CONDENSER, RADIO SETTING
90980-04066

ST20#

DEFOGGER

 2
