ST202R-BLMSK (1993)

Toyota Celica

Production Nov 1993 - Aug 1999
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9311- )

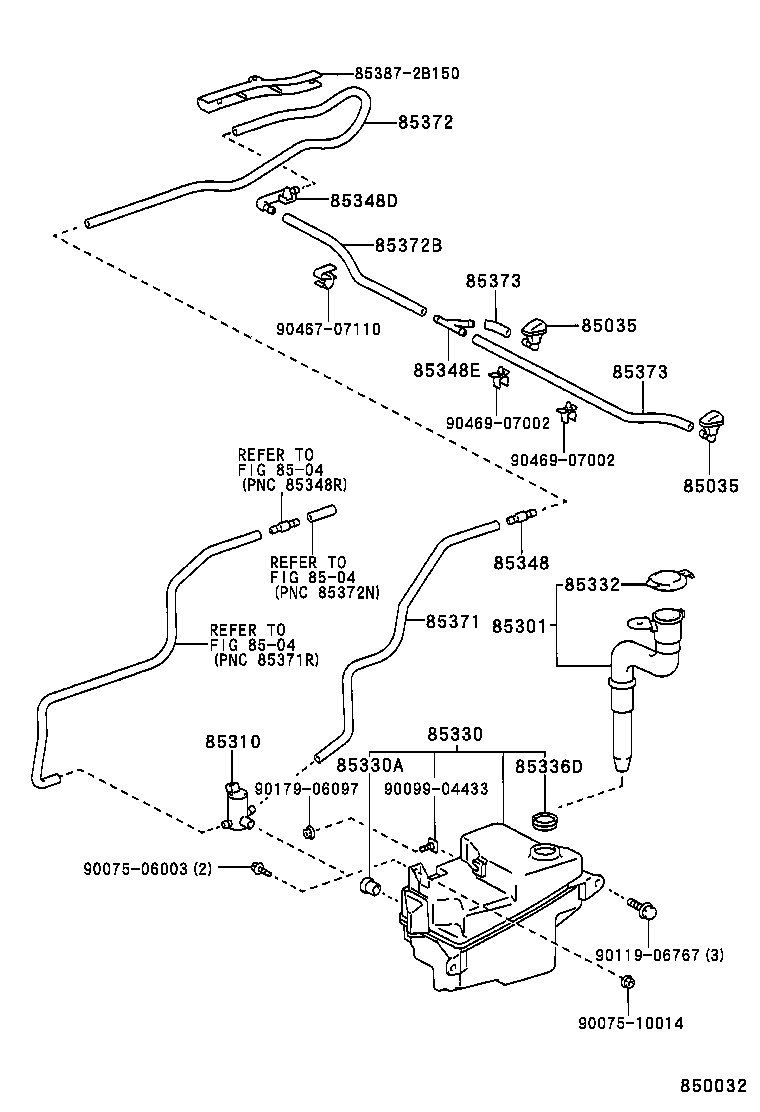

Click highlighted areas on diagram

diagram 85035 85035 8504 8504 8504 85301 85310 85330 85330A 85332 85336D 85348 85348D 85348E 85371 85372 85372B 85373 85373 853872B150 9007506003 9007510014 9009904433 9011906767 9017906097 9046707110 9046907002 9046907002
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-12050

ST20#

 2
85381-20060

ST202,204..RHD

 2
85381-12050

ST202,204

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-12050

ST20#

 2
85381-20060

ST202,204..RHD

 2
85381-12050

ST202,204

 2
85301 - INLET SUB-ASSY, WASHER
85301-20021

ST20#

 1
85301-20020

ST20#

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-12280

ST202,204

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-20520

ST202,204

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

ST20#

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-33050

ST20#

 1
85316-16070

ST20#

 1
85336D - PACKING, WINDSHIELD WASHER JAR
85336-30160

ST20#

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

ST202,204

 1
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85375-16160

ST20#

 1
85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2
85348-14390

ST20#

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90446-07001

ST202,204

*H,L=720

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33080

ST20#

*H,L=890

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90099-33080

ST20#

*H,L=370

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

ST20#

*H,L=530

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

ST20#

*H,L=530

 1
Common parts
85387-2B150
90075-06003
90075-10014
90099-04433
90119-06767
90179-06097
90467-07110
90469-07002
Linked diagrams
8504
