ST202R-BLMSK (1993)

Toyota Celica

Production Nov 1993 - Aug 1999
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

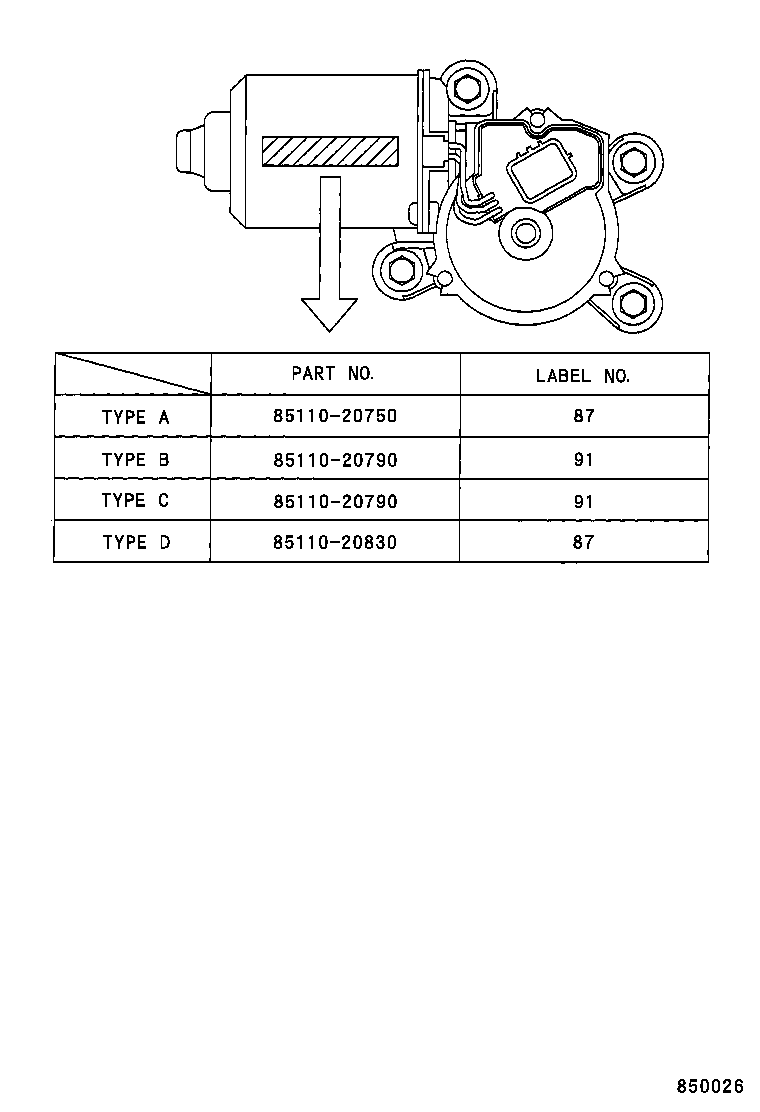

ILLUST NO. 2 OF 2(9311- )

Click highlighted areas on diagram

diagram
Part # Description Qty Price

ILLUST NO. 1 OF 2(9311- )

Click highlighted areas on diagram

diagram 85110 85160 85178 85178 85192 85192 85211B 85212A 85213A 85214A 85214B 85221B 85222A 85223A 85224A 85224B 85224C 85224D 9011906187
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-20750

ST202..RHD

TYPE A:REFER TO ILLUSTRATION

 1
85110-20790

ST20#..RHD

TYPE B:REFER TO ILLUSTRATION

 1
85110-20830

ST202..RHD

TYPE D:REFER TO ILLUSTRATION

 1
85110-20820

ST20#..RHD

TYPE C:REFER TO ILLUSTRATION

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-20820

ST20#..RHD

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90179-08113

ST20#

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90179-08113

ST20#

 2
85192 - COVER, WINDSHIELD WIPER ARM
85292-12020

ST20#

 2
85192 - COVER, WINDSHIELD WIPER ARM
85292-12020

ST20#

 2
85211B - ARM, FRONT WIPER, RH
85211-20390

ST20#..RHD

 1
85212A - BLADE, FR WIPER, RH
85212-20350

ST20#..RHD

 1
85213A - RUBBER, WIPER BLADE, RH
85213-20310

ST20#..RHD

 1
85214A - RUBBER, WIPER, RH
85214-33060

ST20#..RHD

 1
85214B - RUBBER, WIPER, LH
85214-60020

ST202..RHD

 1
85221B - ARM, FRONT WIPER, LH
85221-20360

ST202..RHD

 1
85222A - BLADE, FR WIPER, LH
85222-3H080

ST202..RHD

 1
85223A - RUBBER, FRONT WIPER BLADE, LH
85223-33040

ST202..RHD

 1
85224A - PLATE, WIPER RUBBER BACKING, NO.1
85224-33050

ST20#..RHD

 1
85224B - PLATE, WIPER RUBBER BACKING, NO.2
85224-33050

ST20#..RHD

 1
85224C - PLATE, WIPER RUBBER BACKING, NO.3
85224-20300

ST202..RHD

 1
85224D - PLATE, WIPER RUBBER BACKING, NO.4
85224-20300

ST202..RHD

 1
Common parts
90119-06187
