ST202R-BLMSK (1993)
Toyota Celica
Production
Nov 1993
-
Aug 1999
Engine
3SFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 3 OF 3(9311- )
Click highlighted areas on diagram
BULB SOCKET
| Part # | Description | Qty | Price |
|---|

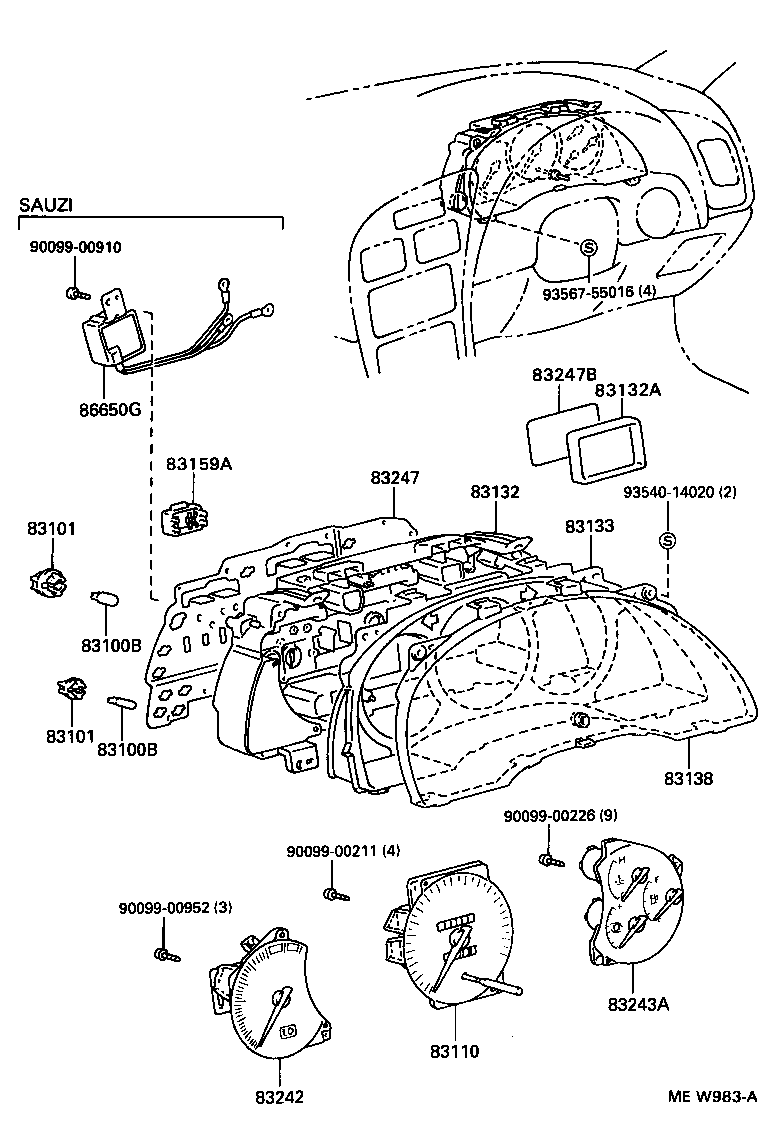

ILLUST NO. 1 OF 3(9311- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24020 |
ST20# 12V3.4W W(GREEN CAP) |
3 | ||
| 90981-11018 |
ST202..GEN 12V 1.2W W/O SOCKET |
11 | ||
| 99132-12034 |
ST20# 12V 3.4W |
3 | ||
| 83119-32010 |
ST20# 14V 3.0W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24020 |
ST20# 12V3.4W W(GREEN CAP) |
3 | ||
| 90981-11018 |
ST202..GEN 12V 1.2W W/O SOCKET |
11 | ||
| 99132-12034 |
ST20# 12V 3.4W |
3 | ||
| 83119-32010 |
ST20# 14V 3.0W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
ST20# TYPE A:REFER TO ILLUSTRATION |
3 | ||
| 83101-24010 |
ST20# TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83101-14040 |
ST202..GEN TYPE B:REFER TO ILLUSTRATION |
11 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
ST20# TYPE A:REFER TO ILLUSTRATION |
3 | ||
| 83101-24010 |
ST20# TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83101-14040 |
ST202..GEN TYPE B:REFER TO ILLUSTRATION |
11 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-2D510 |
ST202..GEN MPH & KM/H |
1 | ||
| 83110-2D520 |
ST202,204..ARL,GEN KM/H |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-2D030 |
ST202 |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-20690 |
ST20# |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-2B370 |
ST20# |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83242-20650 |
ST202 |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-20650 |
ST202,204..ARL,GEN |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-2D050 |
ST202 |
1 | ||
| Common parts | ||||
| 90099-00211 | ||||
| 90099-00226 | ||||
| 90099-00910 | ||||
| 90099-00952 | ||||
| 93540-14020 | ||||
| 93567-55016 | ||||
ILLUST NO. 2 OF 3(9311- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-12030 |
ST202,204..MTM |
1 | ||
| 83181B - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 96711-24018 |
ST202,204 |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-20680 |
ST20# |
1 | ||
