ST202R-BLMSK (1993)

Toyota Celica

Production Nov 1993 - Aug 1999
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

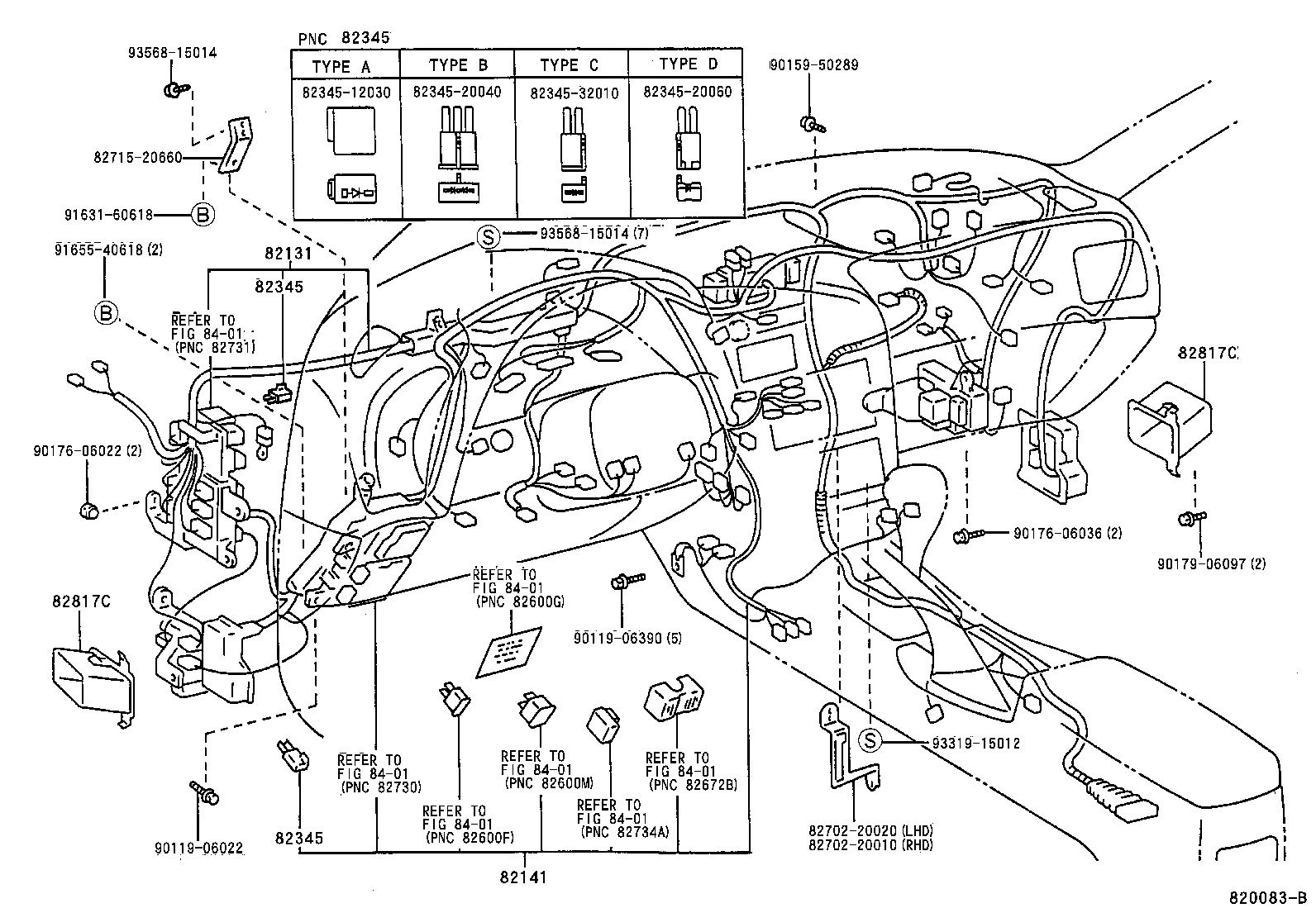

ILLUST NO. 3 OF 7(9311- )

Click highlighted areas on diagram

COWL,INSTRUMENT WIRE

diagram 82131 82141 82345 82345 82345 8234512030 8234520040 8234520060 8234532010 8270220010 8270220020 8271520660 82817C 82817C 8401 8401 8401 8401 8401 8401 8401 9011906022 9011906390 9015950289 9017606022 9017606036 9017906097 9163160618 9165540618 9331915012 9356815014 9356815014
Part # Description Qty Price
82131 - WIRE, COWL
82131-2M740

ST20#..RHD

W(ABS)

 1
82135-20360

ST202..RHD

W(ABS)

 1
82131-2M730

ST202,204..RHD

 1
82135-20361

ST202..RHD

W(ABS)

 1
82135-20350

ST202,204..RHD

 1
82141 - WIRE, INSTRUMENT PANEL
82141-2D120

ST202..RHD

 1
82141-2G310

ST202..RHD

 1
82345 - DIODE
82345-20060

ST202..GEN

TYPE B:REFER TO ILLUSTRATION

 1
82345-20040

ST20#

TYPE A:REFER TO ILLUSTRATION

 1
82345-20060

ST202

TYPE B:REFER TO ILLUSTRATION

 1
82345 - DIODE
82345-20060

ST202..GEN

TYPE B:REFER TO ILLUSTRATION

 1
82345-20040

ST20#

TYPE A:REFER TO ILLUSTRATION

 1
82345-20060

ST202

TYPE B:REFER TO ILLUSTRATION

 1
82345 - DIODE
82345-20060

ST202..GEN

TYPE B:REFER TO ILLUSTRATION

 1
82345-20040

ST20#

TYPE A:REFER TO ILLUSTRATION

 1
82345-20060

ST202

TYPE B:REFER TO ILLUSTRATION

 1
82817C - PROTECTOR, WIRING HARNESS, NO.4
82817-2D720

ST20#

LH

 1
82817-2D710

ST20#

RH

 1
82817C - PROTECTOR, WIRING HARNESS, NO.4
82817-2D720

ST20#

LH

 1
82817-2D710

ST20#

RH

 1
Common parts
82345-12030
82345-20040
82345-20060
82345-32010
82702-20010
82702-20020
82715-20660
90119-06022
90119-06390
90159-50289
90176-06022
90176-06036
90179-06097
91631-60618
91655-40618
93319-15012
93568-15014
Linked diagrams
8401

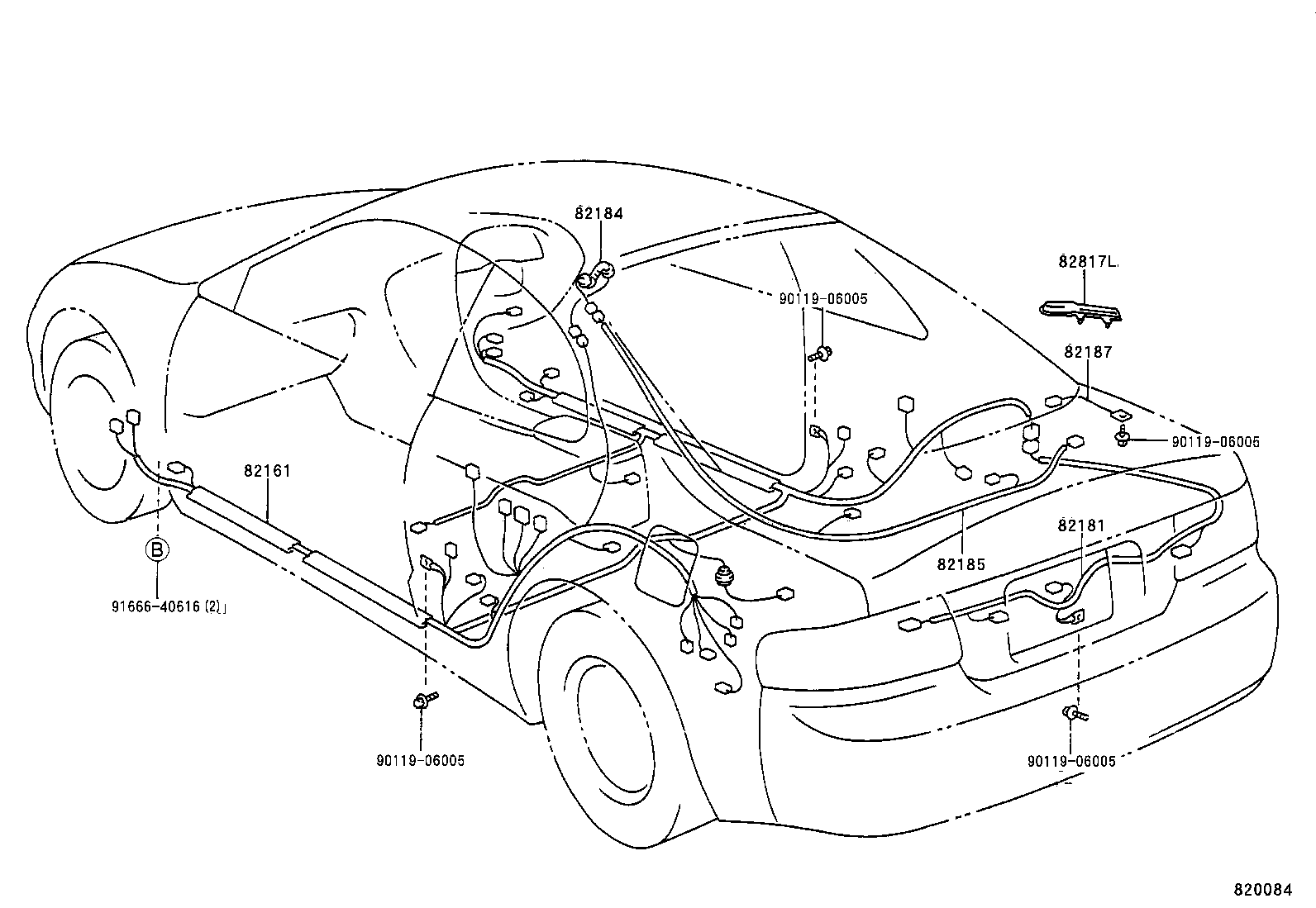

ILLUST NO. 5 OF 7(9311- )

Click highlighted areas on diagram

FLOOR,LUGGAGE WIRE

diagram 82161 82181 82184 82185 82187 82817L 9011906005 9011906005 9011906005 9011906005 9166640616
Part # Description Qty Price
82161 - WIRE, FLOOR
82161-2L100

ST202,204..RHD

 1
82161-2L520

ST202,204..RHD

 1
82181 - WIRE, LUGGAGE ROOM, NO.1
82181-2B100

ST202,204..RHD

 1
82184 - WIRE, BACK DOOR, NO.1
82184-20230

ST20#

 1
82185 - WIRE, BACK DOOR, NO.2
82185-20600

ST202..GEN

 1
82185-20610

ST20#

W(HIGH MOUNT STOP LAMP)

 1
82185-20601

ST202..GEN

 1
82185-20611

ST20#

W(HIGH MOUNT STOP LAMP)

 1
82187 - WIRE, REAR WINDOW, NO.2
82187-20210

ST20#

 1
Common parts
90119-06005
91666-40616

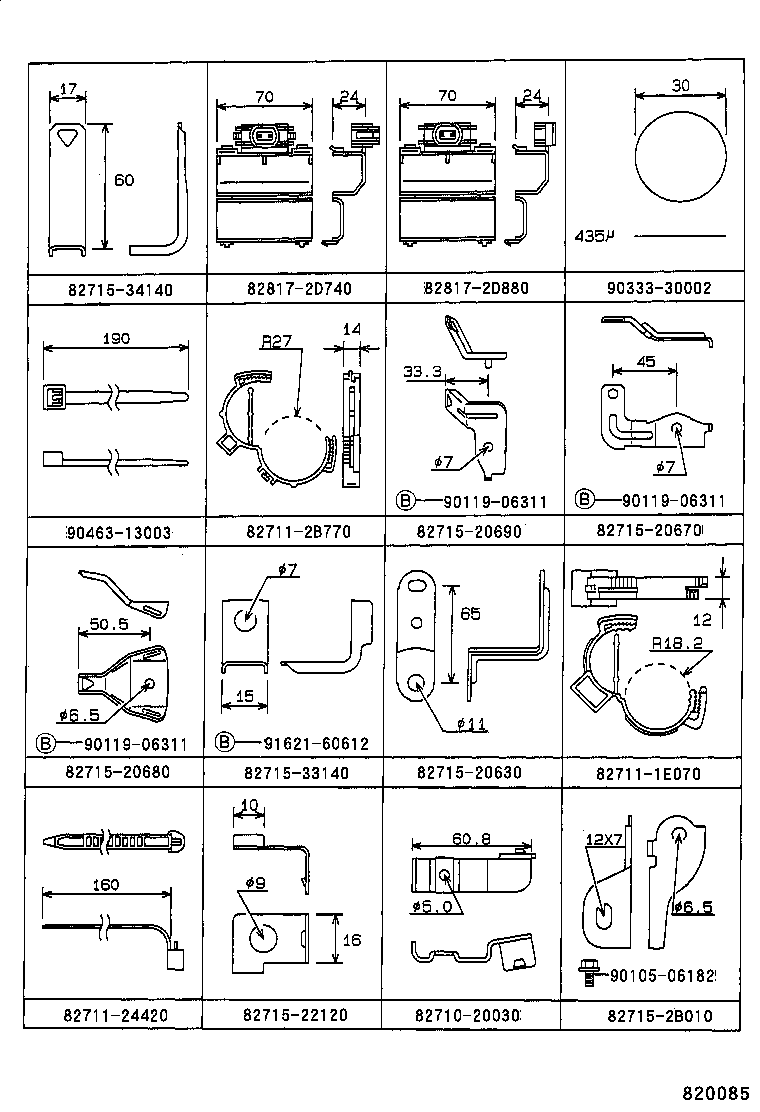

ILLUST NO. 7 OF 7(9311- )

Click highlighted areas on diagram

CLAMP & PROTECTOR

diagram 8271020030 827111E070 8271124420 827112B770 8271520630 8271520670 8271520680 8271520690 8271522120 827152B010 8271533140 8271534140 828172D740 828172D880 9010506182 9011906311 9011906311 9011906311 9033330002 9046313003 9162160612
Part # Description Qty Price
Common parts
82710-20030
82711-1E070
82711-24420
82711-2B770
82715-20630
82715-20670
82715-20680
82715-20690
82715-22120
82715-2B010
82715-33140
82715-34140
82817-2D740
82817-2D880
90105-06182
90119-06311
90333-30002
90463-13003
91621-60612

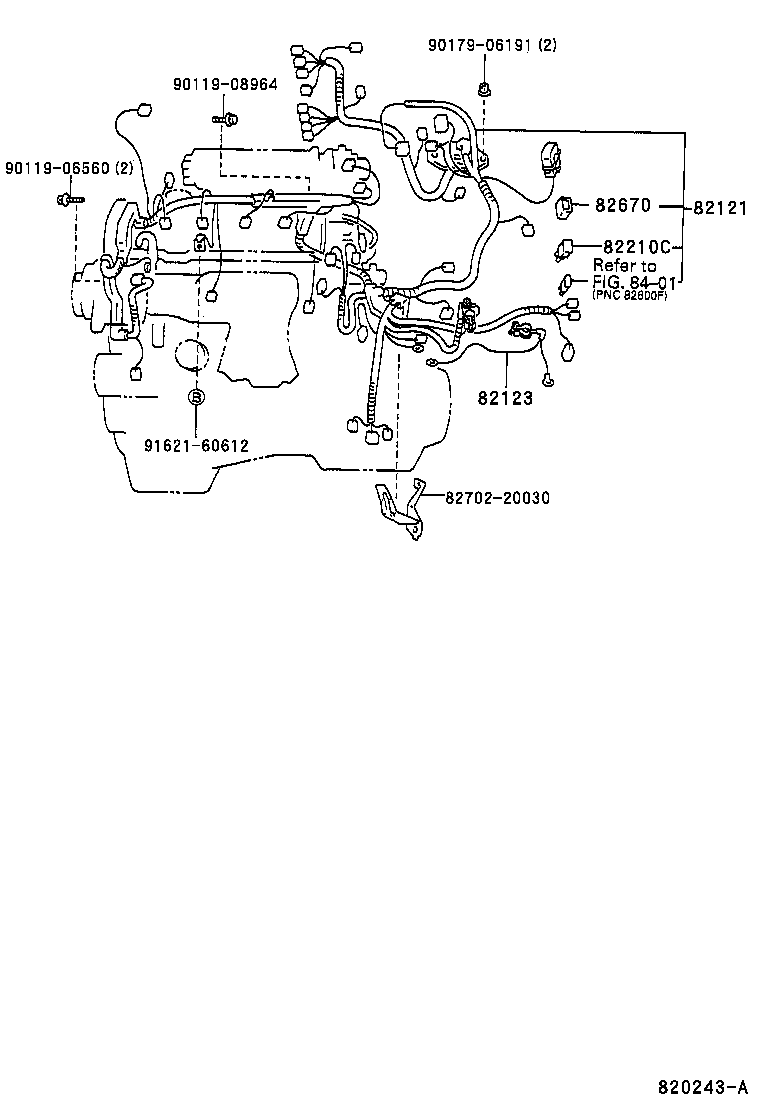

ILLUST NO. 2 OF 7(9311- )ST202

Click highlighted areas on diagram

ENGINE WIRE

diagram 82121 82123 82210C 82670 8270220030 9011906560 9011908964 9017906191 9162160612
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-2H760

ST202..RHD

 1
82121-2L750

ST202..RHD

 1
82121-2L751

ST202..RHD

 1
82123 - WIRE, ENGINE, NO.3
82123-20250

ST202

TYPE B:REFER TO ILLUSTRATION

 1
82123-20240

ST20#

TYPE A:REFER TO ILLUSTRATION

 1
82210C - FUSIBLE LINK
90982-08246

ST20#

100A,TERM.:MALE,BLUE

 1
90982-08227

ST20#

50A,TERM.:FEMALE,RED

 1
90982-08189

ST20#

40A,TERM.:FEMALE,GRN

 1
90982-08190

ST20#

60A,TERM.:FEMALE,YEL

 1
82670 - BLOCK ASSY, JUNCTION, NO.1
82670-2B010

ST20#

 1
Common parts
82702-20030
90119-06560
90119-08964
90179-06191
91621-60612

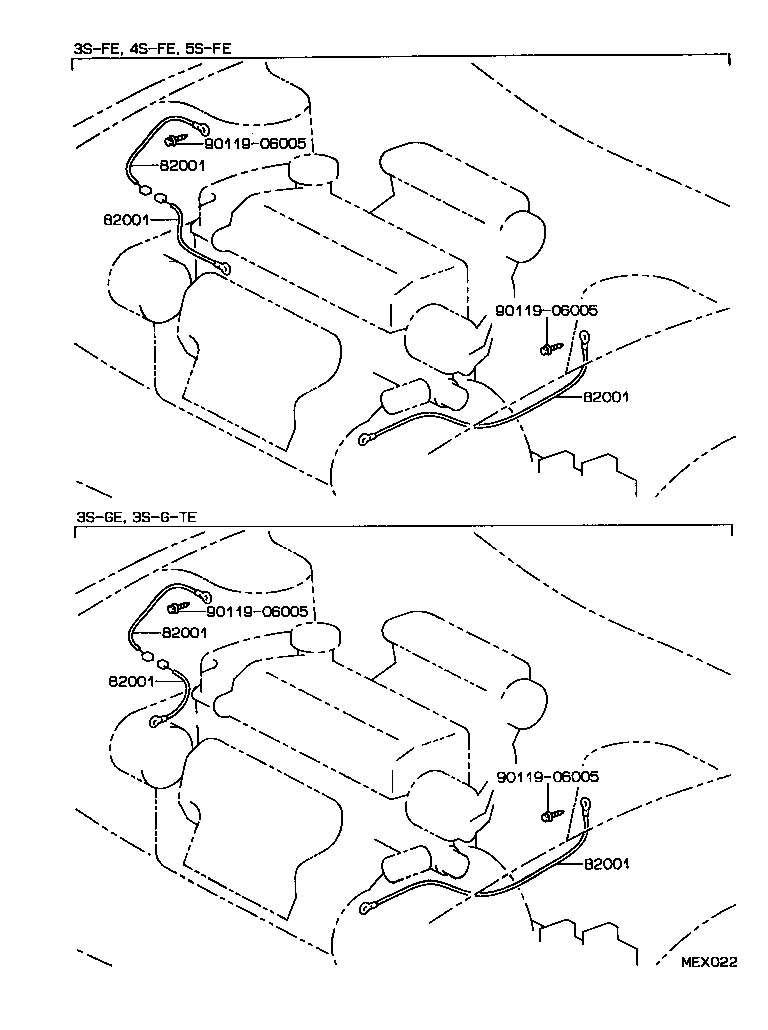

ILLUST NO. 6 OF 7(9311- )

Click highlighted areas on diagram

CABLE BOND

diagram 82001 82001 82001 82001 82001 82001 9011906005 9011906005 9011906005 9011906005
Part # Description Qty Price
82001 - CABLE, BOND, NO.1
90980-07287

ST20#

FENDER

 1
90980-07264

ST20#

TRANSMISSION

 1
90980-07280

ST202,204

ENGINE HANGER

 1
82001 - CABLE, BOND, NO.1
90980-07287

ST20#

FENDER

 1
90980-07264

ST20#

TRANSMISSION

 1
90980-07280

ST202,204

ENGINE HANGER

 1
82001 - CABLE, BOND, NO.1
90980-07287

ST20#

FENDER

 1
90980-07264

ST20#

TRANSMISSION

 1
90980-07280

ST202,204

ENGINE HANGER

 1
82001 - CABLE, BOND, NO.1
90980-07287

ST20#

FENDER

 1
90980-07264

ST20#

TRANSMISSION

 1
90980-07280

ST202,204

ENGINE HANGER

 1
82001 - CABLE, BOND, NO.1
90980-07287

ST20#

FENDER

 1
90980-07264

ST20#

TRANSMISSION

 1
90980-07280

ST202,204

ENGINE HANGER

 1
82001 - CABLE, BOND, NO.1
90980-07287

ST20#

FENDER

 1
90980-07264

ST20#

TRANSMISSION

 1
90980-07280

ST202,204

ENGINE HANGER

 1
Common parts
90119-06005

ILLUST NO. 7 OF 7(9311- )

Click highlighted areas on diagram

CLAMP & PROTECTOR

diagram 8271112200 8271124010 8271124420 827112B480 827112B640 827112C160 8271132780 8271133160 827113A360 827113A540 827113A710 827113H380 827113H390 827113H480 8271510030 8271517090
Part # Description Qty Price
Common parts
82711-12200
82711-24010
82711-24420
82711-2B480
82711-2B640
82711-2C160
82711-32780
82711-33160
82711-3A360
82711-3A540
82711-3A710
82711-3H380
82711-3H390
82711-3H480
82715-10030
82715-17090

ILLUST NO. 4 OF 7(9311- )

Click highlighted areas on diagram

DOOR,ROOF WIRE

diagram 82151 82152 82171 9011906390
Part # Description Qty Price
82151 - WIRE, FRONT DOOR, RH
82151-2D830

ST202..RHD

 1
82151-2G220

ST20#..RHD

 1
82151-2D860

ST20#..RHD

W(POWER WINDOW)

 1
82152 - WIRE, FRONT DOOR, LH
82152-2D690

ST20#..RHD

W(POWER WINDOW)

 1
82152-2D670

ST202..RHD

 1
82152-2G040

ST20#..RHD

 1
82171 - WIRE, ROOF, NO.1
82171-20850

ST20#..RHD

 1
82171-20870

ST20#..RHD

W(POWER WINDOW)

 1
Common parts
90119-06390

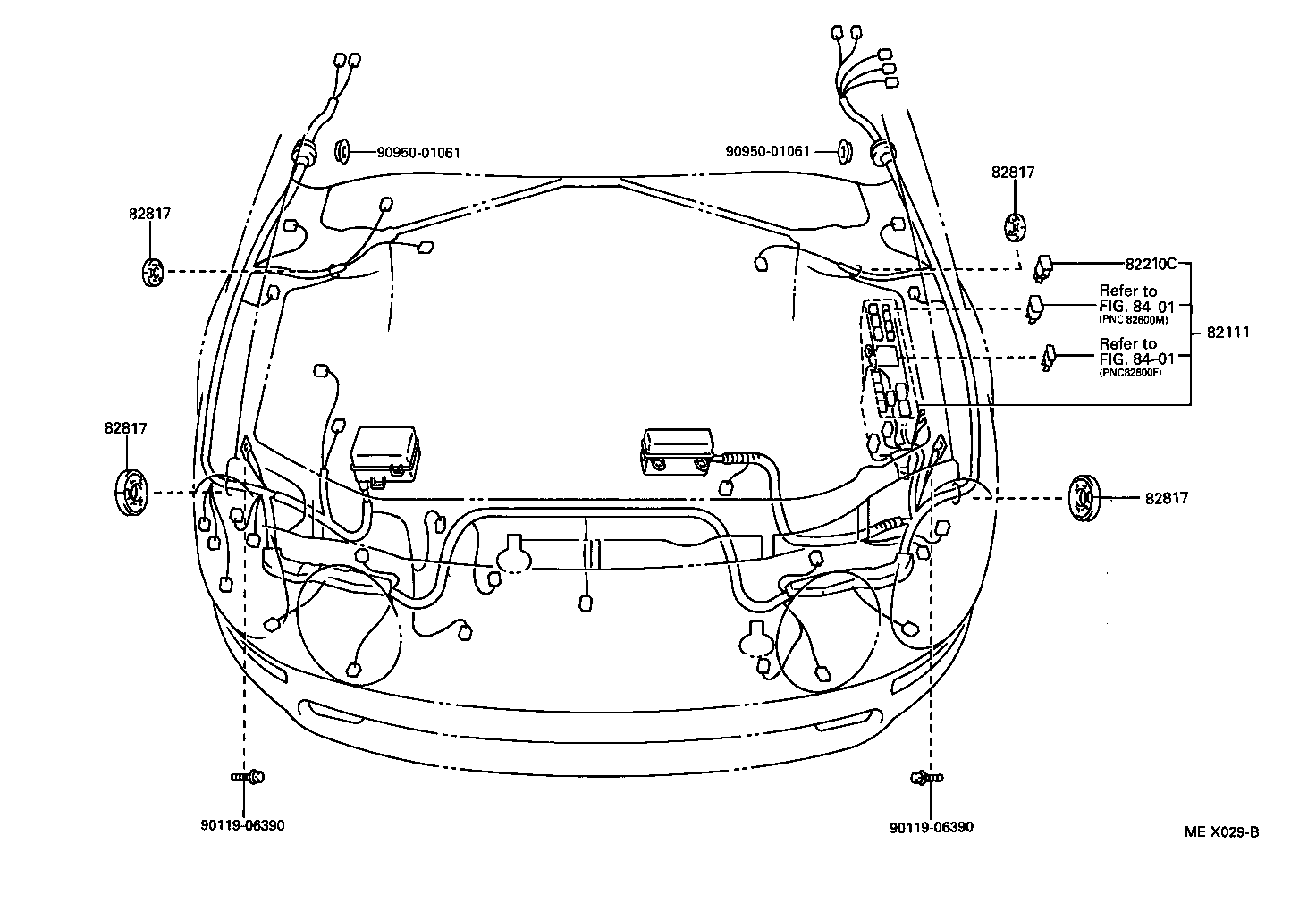

ILLUST NO. 1 OF 7(9311- )

Click highlighted areas on diagram

ENGINE ROOM WIRE

diagram 82111 82210C 82817 82817 82817 82817 8401 8401 9011906390 9011906390 9095001061 9095001061
Part # Description Qty Price
82111 - WIRE, ENGINE ROOM MAIN
82111-2G760

ST202,204..RHD

 1
82111-2G770

ST202,204..RHD

W(ABS)

 1
82111-2H820

ST202,204..RHD

W(ABS)

 1
82111-2H822

ST202,204..RHD

W(ABS)

 1
82111-2H821

ST202,204..RHD

W(ABS)

 1
82111-2H811

ST202,204..RHD

 1
82111-2H810

ST202,204..RHD

 1
82210C - FUSIBLE LINK
90982-08246

ST20#

100A,TERM.:MALE,BLUE

 1
90982-08227

ST20#

50A,TERM.:FEMALE,RED

 1
90982-08189

ST20#

40A,TERM.:FEMALE,GRN

 1
90982-08190

ST20#

60A,TERM.:FEMALE,YEL

 1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-2D840

ST20#

FRONT

 2
82817-2B730

ST20#

REAR

 2
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-2D840

ST20#

FRONT

 2
82817-2B730

ST20#

REAR

 2
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-2D840

ST20#

FRONT

 2
82817-2B730

ST20#

REAR

 2
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-2D840

ST20#

FRONT

 2
82817-2B730

ST20#

REAR

 2
Common parts
90119-06390
90950-01061
Linked diagrams
8401
