ST202R-BLMSK (1993)

Toyota Celica

Production Nov 1993 - Aug 1999
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9311- )

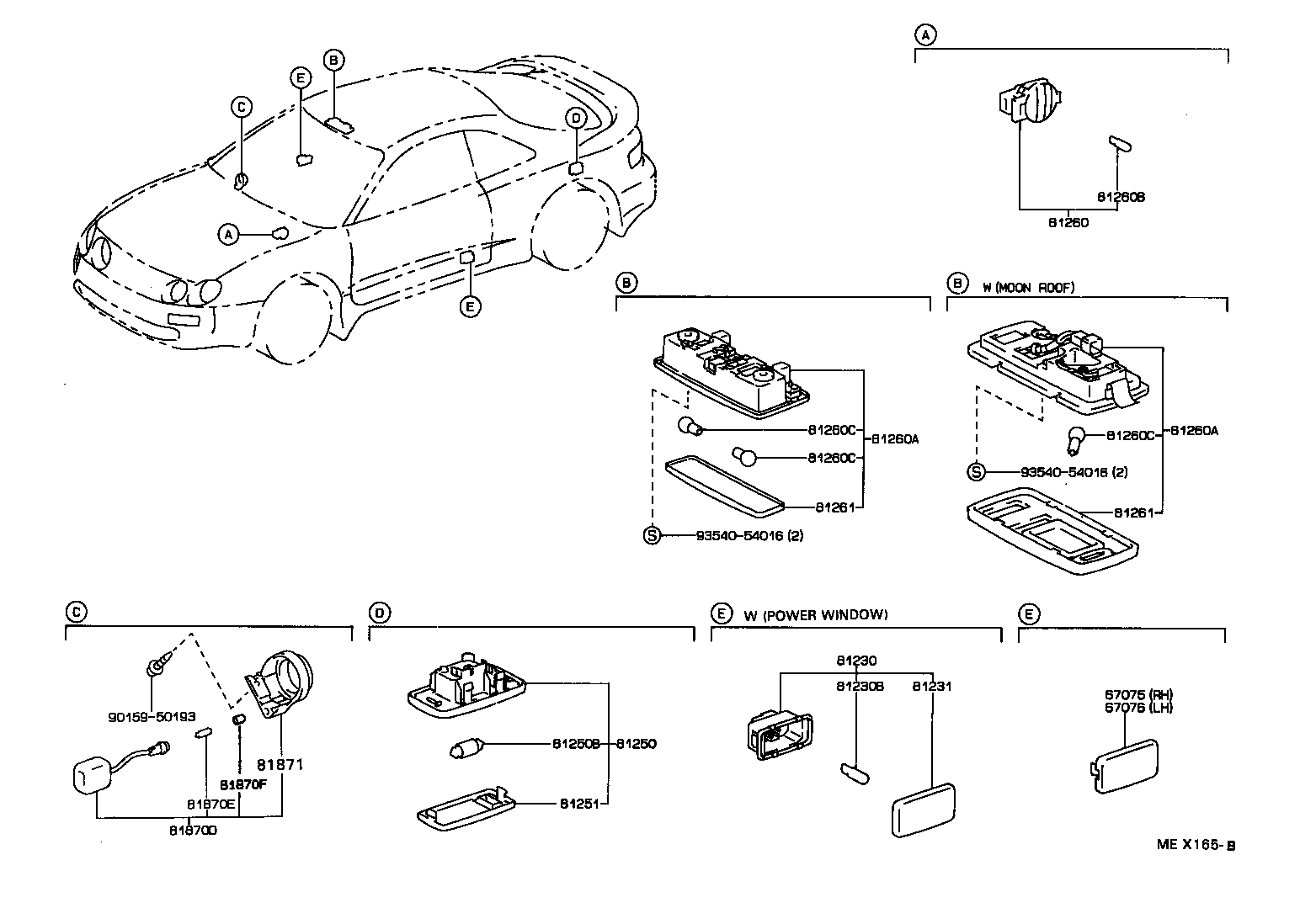

Click highlighted areas on diagram

diagram 67075 67076 81230 81230B 81231 81250 81250B 81251 81260 81260A 81260A 81260B 81260C 81260C 81260C 81261 81261 81870D 81870E 81870F 81871 9015950193 9354054016 9354054016
Part # Description Qty Price
67075 - REFLECTOR SUB-ASSY, FRONT DOOR TRIM, RH
67665-20020

ST202

 1
67076 - REFLECTOR SUB-ASSY, FRONT DOOR TRIM, LH
67665-20020

ST202

 1
81230 - LAMP ASSY, COURTESY
81230-50040

ST20#

 2
81230B - BULB(FOR COURTESY LAMP)
90981-11020

ST20#

12V 3.8W

 2
81231 - LENS, COURTESY LAMP
81231-50020

ST20#

 2
81250 - LAMP ASSY, ROOM, NO.2
81250-12030C0

ST20#

BLACK,TRIM2#

 1
81250B - BULB, ROOM LAMP, NO.2
99132-13050

ST20#

12V 5W

 1
81251 - LENS, ROOM LAMP, NO.2
81251-12030

ST20#

 1
81260 - LAMP ASSY, GLOVE BOX
81260-33010

ST20#

 1
81260A - LAMP ASSY, MAP
81260-20220B0

ST20#

W(MOON ROOF),LI.GRAY,TRIM2#

 1
81260-20220B1

ST20#

W(MOON ROOF),LT.GRAY,TRIM2#

 1
81260-14080B3

ST20#

LT.GRAY,TRIM2#

 1
81260-14080B1

ST20#

LI.GRAY,TRIM2#

 1
81260A - LAMP ASSY, MAP
81260-20220B0

ST20#

W(MOON ROOF),LI.GRAY,TRIM2#

 1
81260-20220B1

ST20#

W(MOON ROOF),LT.GRAY,TRIM2#

 1
81260-14080B3

ST20#

LT.GRAY,TRIM2#

 1
81260-14080B1

ST20#

LI.GRAY,TRIM2#

 1
81260B - BULB(FOR GLOVE BOX)
90981-11018

ST20#

12V 1.2W W/O SOCKET

 1
81260C - BULB(FOR MAP LAMP)
90981-12005

ST20#

12V 8W

 2
90981-12014

ST20#

12V 10W

 1
81260C - BULB(FOR MAP LAMP)
90981-12005

ST20#

12V 8W

 2
90981-12014

ST20#

12V 10W

 1
81260C - BULB(FOR MAP LAMP)
90981-12005

ST20#

12V 8W

 2
90981-12014

ST20#

12V 10W

 1
81261 - LENS AND COVER, MAP LAMP
81261-14080

ST20#

 1
81261-20220B2

ST20#

W(MOON ROOF),LT.GRAY,TRIM2#

 1
81261-20220B0

ST20#

W(MOON ROOF),LI.GRAY,TRIM2#

 1
81261 - LENS AND COVER, MAP LAMP
81261-14080

ST20#

 1
81261-20220B2

ST20#

W(MOON ROOF),LT.GRAY,TRIM2#

 1
81261-20220B0

ST20#

W(MOON ROOF),LI.GRAY,TRIM2#

 1
81871 - LENS, KEY ILLUMINATION
81871-20030

ST202,204

 1
Common parts
90159-50193
93540-54016
