ST202R-BLMSK (1993)

Toyota Celica

Production Nov 1993 - Aug 1999
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9311- )

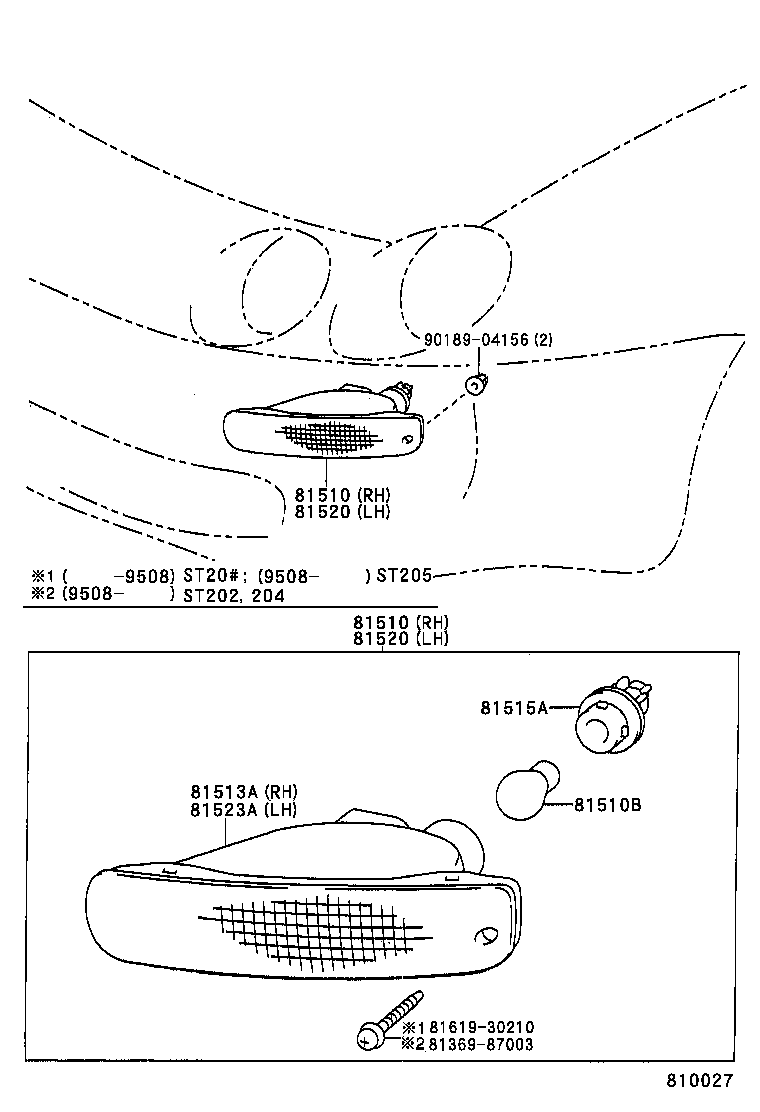

Click highlighted areas on diagram

diagram 8136987003 81510 81510 81510B 81513A 81515A 81520 81520 81523A 8161930210 9018904156
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-20730

ST202,204

 1
81510-20680

ST202,204

 1
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-20730

ST202,204

 1
81510-20680

ST202,204

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

ST20#

12V 21W

 2
81513A - UNIT ASSY, FRONT TURN SIGNAL LAMP, RH
81511-20730

ST202,204

 1
81511-20680

ST202,204

 1
81515A - PLUG ASSY, FRONT TURN SIGNAL LAMP
90075-99078

ST20#

 2
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-20660

ST202,204

 1
81520-20730

ST202,204

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-20660

ST202,204

 1
81520-20730

ST202,204

 1
81523A - UNIT ASSY, FRONT TURN SIGNAL LAMP, LH
81521-20660

ST202,204

 1
81521-20730

ST202,204

 1
Common parts
81369-87003
81619-30210
90189-04156
