ST202R-BLMSK (1993)
Toyota Celica
Production
Nov 1993
-
Aug 1999
Engine
3SFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

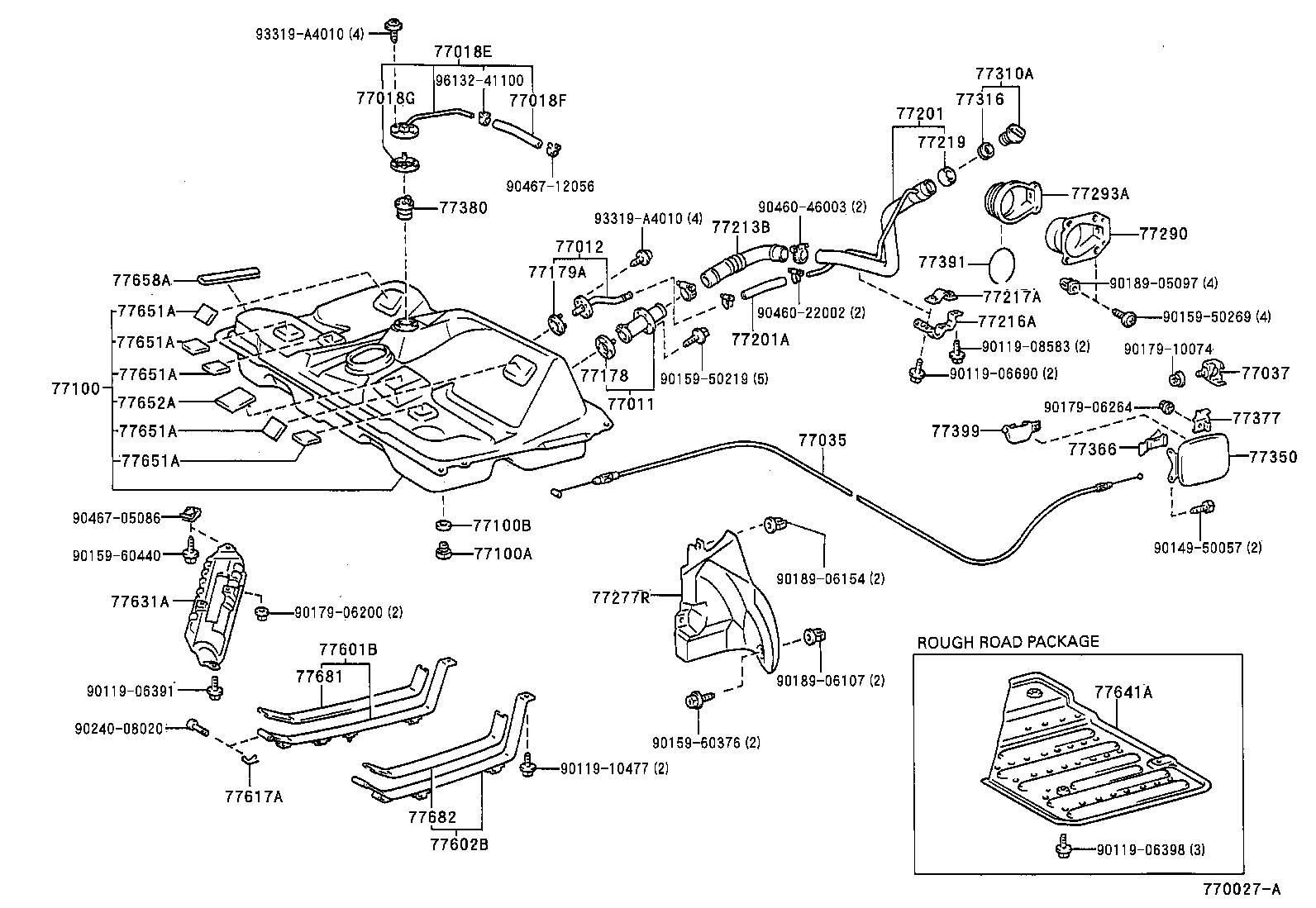

ILLUST NO. 1 OF 2(9311- )ST202,204
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-20050 |
ST202,204 |
1 | ||
| 77012 - TUBE SUB-ASSY, FUEL TANK BREATHER | ||||
| 77012-20110 |
ST202,204 |
1 | ||
| 77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT | ||||
| 77018-20200 |
ST202,204 |
1 | ||
| 77018F - HOSE, FUEL TANK EVAPORATION VENT | ||||
| 95333-06020 |
ST202,204 *H,L=140 |
1 | ||
| 95333-06020 |
ST20# *H,L=130 |
1 | ||
| 77018G - GASKET, FUEL TANK EVAP/VENT TUBE | ||||
| 77179-26010 |
ST202,204 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-20460 |
ST20#..RHD |
1 | ||
| 77035-20490 |
ST20#..RHD |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-20070 |
ST20# |
1 | ||
| 77037-20100 |
ST20# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-20941 |
ST202,204 |
1 | ||
| 77001-20941 |
ST202 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20004 |
ST202 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20007 |
ST202 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20030 |
ST202,204 |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-20040 |
ST202,204 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-20560 |
ST202 |
1 | ||
| 77201-20480 |
ST202 |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 95311-13016 |
ST202,204 L=160 |
1 | ||
| 95311-13017 |
ST202,204 L=170 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-20110 |
ST202,204 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-20150 |
ST202,204 |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-20040 |
ST202,204 |
1 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-32030 |
ST202,204 |
2 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-20240 |
ST20# |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-20161 |
ST20# |
1 | ||
| 77290-20160 |
ST20# |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-20100 |
ST20# |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-16011 |
ST20# |
1 | ||
| 77310-48010 |
ST20# |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
ST20# |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-20240 |
ST20# |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-22020 |
ST20# |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-20050 |
ST20# |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
ST202,204 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-14020 |
ST20# |
1 | ||
| 77399 - HANGER, FUEL TANK CAP | ||||
| 77399-20010 |
ST20# |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-20190 |
ST202 ROUGH ROAD PACKAGE |
1 | ||
| 77601-20180 |
ST202,204 |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-20210 |
ST202,204 |
1 | ||
| 77602-20220 |
ST202 ROUGH ROAD PACKAGE |
1 | ||
| 77617A - UNION, AUXILIARY FUEL BAND | ||||
| 77617-12010 |
ST20# |
2 | ||
| 77631A - PROTECTOR, FUEL TANK, LOWER CENTER | ||||
| 77631-20080 |
ST202,204 |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-20060 |
ST202 |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77652-12100 |
ST202,204 |
7 | ||
| 77652-12100 |
ST20# |
5 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77652-12100 |
ST20# |
5 | ||
| 77652-12100 |
ST202,204 |
7 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77652-12100 |
ST202,204 |
7 | ||
| 77652-12100 |
ST20# |
5 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77652-12100 |
ST202,204 |
7 | ||
| 77652-12100 |
ST20# |
5 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77652-12100 |
ST202,204 |
7 | ||
| 77652-12100 |
ST20# |
5 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-20110 |
ST202 |
1 | ||
| 77652-33010 |
ST202,204 |
1 | ||
| 77652-20110 |
ST20# |
1 | ||
| 77658A - PROTECTOR, FUEL TANK EDGE, NO.1 | ||||
| 77658-20020 |
ST202,204 |
1 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77681-32060 |
ST202,204 |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77681-32060 |
ST202,204 |
1 | ||
| Common parts | ||||
| 90119-06391 | ||||
| 90119-06398 | ||||
| 90119-06690 | ||||
| 90119-08583 | ||||
| 90119-10477 | ||||
| 90149-50057 | ||||
| 90159-50219 | ||||
| 90159-50269 | ||||
| 90159-60376 | ||||
| 90159-60440 | ||||
| 90179-06200 | ||||
| 90179-06264 | ||||
| 90179-10074 | ||||
| 90189-05097 | ||||
| 90189-06107 | ||||
| 90189-06154 | ||||
| 90240-08020 | ||||
| 90460-22002 | ||||
| 90460-46003 | ||||
| 90467-05086 | ||||
| 90467-12056 | ||||
| 93319-A4010 | ||||
| 96132-41100 | ||||

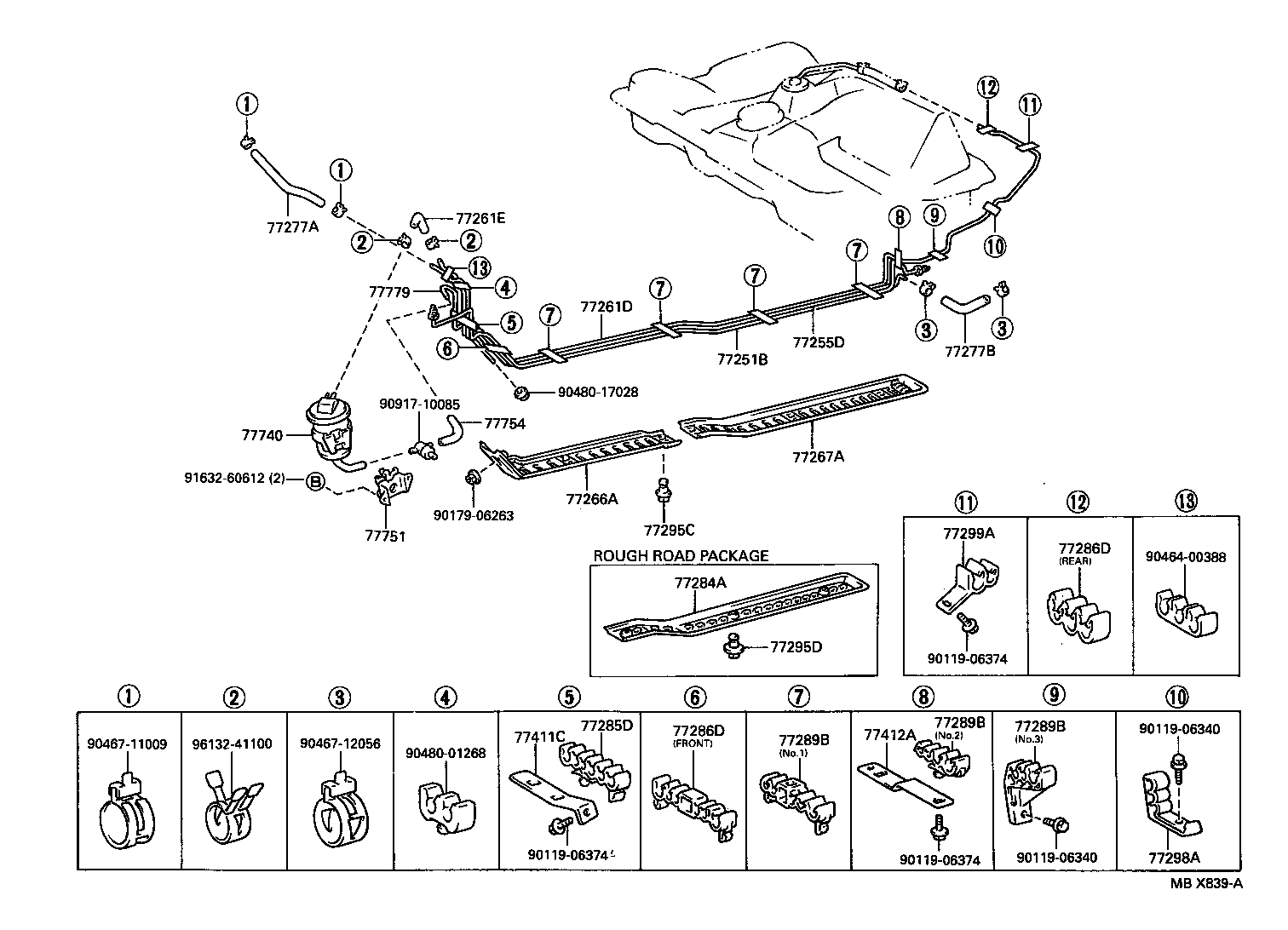

ILLUST NO. 2 OF 2(9311- )ST202,204
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-20710 |
ST202,204 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-20580 |
ST202,204 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-20280 |
ST202,204 |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 77259-20160 |
ST20# |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-20130 |
ST20# |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-20130 |
ST202,204 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-11033 |
ST202,204 L=280 |
1 | ||
| 23271-74500 |
ST202,204 L=280 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95333-06020 |
ST202,204 *H,L=130 |
1 | ||
| 77284A - PROTECTOR, FUEL TUBE, NO.3 | ||||
| 77284-20060 |
ST202 |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-20110 |
ST20# |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-20080 |
ST202,204 FRONT |
1 | ||
| 77286-10010 |
ST202,204 REAR |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-20080 |
ST202,204 FRONT |
1 | ||
| 77286-10010 |
ST202,204 REAR |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-20030 |
ST202,204 NO.3 |
1 | ||
| 77289-20020 |
ST202,204 NO.2 |
1 | ||
| 77289-22020 |
ST202,204 NO.1 |
4 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-20030 |
ST202,204 NO.3 |
1 | ||
| 77289-20020 |
ST202,204 NO.2 |
1 | ||
| 77289-22020 |
ST202,204 NO.1 |
4 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-20030 |
ST202,204 NO.3 |
1 | ||
| 77289-20020 |
ST202,204 NO.2 |
1 | ||
| 77289-22020 |
ST202,204 NO.1 |
4 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-22090 |
ST20# ROUGH ROAD PACKAGE |
4 | ||
| 77295-22090 |
ST202 |
1 | ||
| 77295D - GROMMET, FUEL TUBE | ||||
| 77295-20020 |
ST202 ROUGH ROAD PACKAGE |
3 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-20030 |
ST202,204 |
1 | ||
| 77299A - CLAMP, FUEL TUBE, NO.5 | ||||
| 77299-20030 |
ST202,204 |
1 | ||
| 77411C - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-20040 |
ST20# |
1 | ||
| 77412A - SUPPORT, FUEL TUBE GROMMET, NO.2 | ||||
| 77412-20050 |
ST202,204 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-20450 |
ST20# |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77705-20070 |
ST20# |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-20360 |
ST20# |
1 | ||
| 77779 - TUBE, CHARCOAL CANISTER OUTLET | ||||
| 77779-20050 |
ST20#..RHD |
1 | ||
| Common parts | ||||
| 90119-06340 | ||||
| 90119-06374 | ||||
| 90179-06263 | ||||
| 90464-00388 | ||||
| 90467-11009 | ||||
| 90467-12056 | ||||
| 90480-01268 | ||||
| 90480-17028 | ||||
| 90917-10085 | ||||
| 91632-60612 | ||||
| 96132-41100 | ||||
