ST202R-BLMSK (1993)

Toyota Celica

Production Nov 1993 - Aug 1999
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

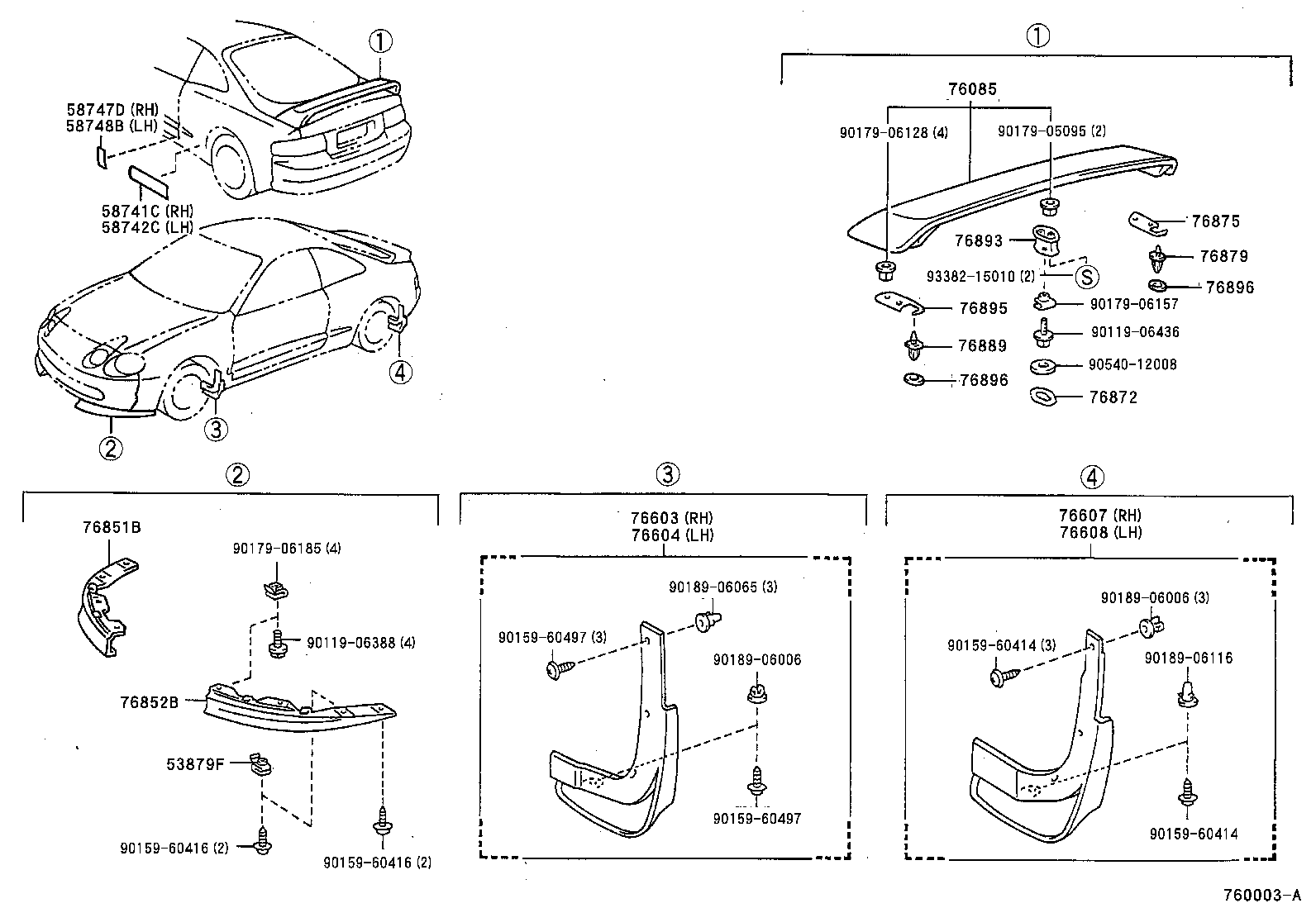

ILLUST NO. 1 OF 2(9508- )

Click highlighted areas on diagram

diagram 53879F 58741C 58742C 58747D 58748B 76085 76603 76604 76607 76608 76851B 76852B 76872 76875 76879 76889 76893 76895 76896 76896 9011906388 9011906436 9015960414 9015960414 9015960416 9015960416 9015960497 9015960497 9017905095 9017906128 9017906157 9017906185 9018906006 9018906006 9018906065 9018906116 9054012008 9338215010
Part # Description Qty Price
58741C - PROTECTOR, QUARTER PANEL, RH
58741-20140

ST20#

 1
58742C - PROTECTOR, QUARTER PANEL, LH
58742-20130

ST20#

 1
58747D - PROTECTOR, QUARTER PANEL, REAR RH
58747-20020

ST20#

 1
58748B - PROTECTOR, QUARTER PANEL, REAR LH
58748-20020

ST20#

 1
76085 - SPOILER SUB-ASSY, REAR
76871-20911

ST20#

 1
76085-20915

ST20#

 1
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76621-29165

ST20#

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76622-29165

ST20#

 1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76625-29195

ST20#

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76626-29195

ST20#

 1
76872 - PROTECTOR, REAR SPOILER, NO.1
76872-20150

ST20#

 1
76875 - PROTECTOR, REAR SPOILER, NO.4
76875-20080

ST20#

 1
76879 - CLIP, REAR SPOILER, NO.1
76879-20060

ST20#

 1
76889 - CLIP, REAR SPOILER, NO.2
76889-20060

ST20#

 1
76893 - COVER, REAR SPOILER, NO.1
76893-20900

ST20#

 1
76895 - PROTECTOR, REAR SPOILER, NO.5
76875-20080

ST20#

 1
76896 - PROTECTOR, REAR SPOILER, NO.6
76896-20060

ST20#

 2
76896 - PROTECTOR, REAR SPOILER, NO.6
76896-20060

ST20#

 2
Common parts
90119-06388
90119-06436
90159-60414
90159-60416
90159-60497
90179-05095
90179-06128
90179-06157
90179-06185
90189-06006
90189-06065
90189-06116
90540-12008
93382-15010

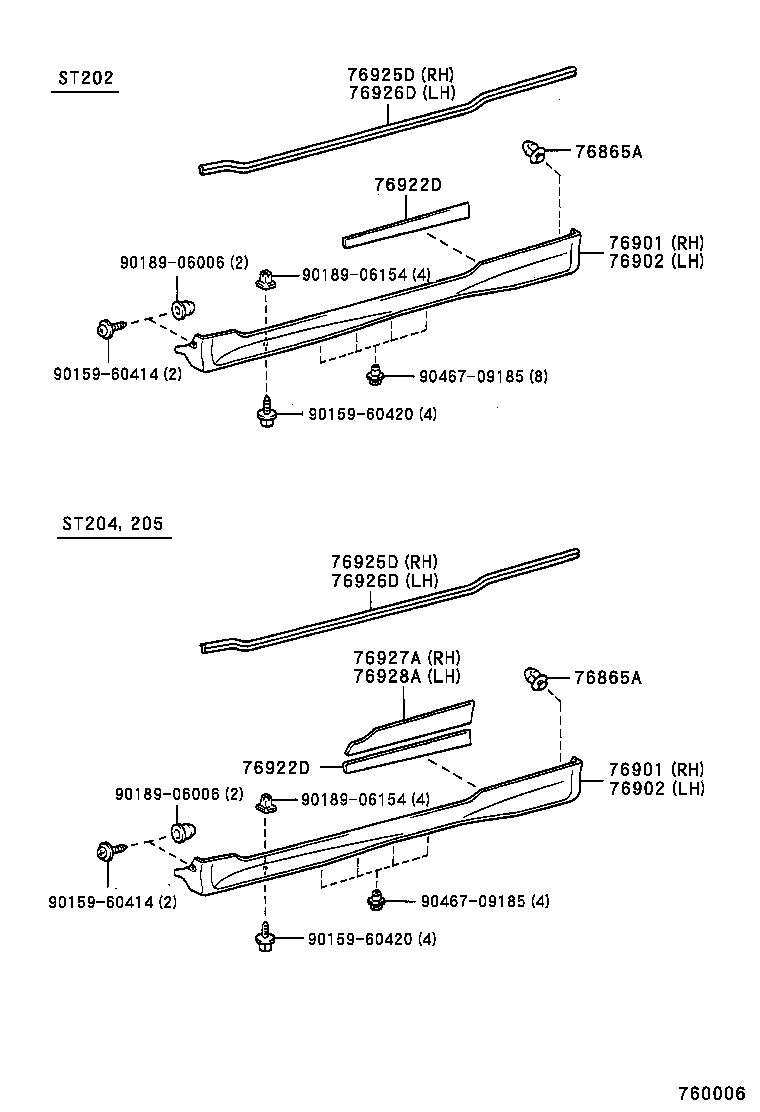

ILLUST NO. 2 OF 2(9508- )

Click highlighted areas on diagram

diagram 76865A 76865A 76901 76901 76902 76902 76922D 76922D 76925D 76925D 76926D 76926D 76927A 76928A 9015960414 9015960414 9015960420 9015960420 9018906006 9018906006 9018906154 9018906154 9046709185 9046709185
Part # Description Qty Price
76865A - RETAINER, SIDE MUDGUARD
90467-10162

ST20#

 18
76865A - RETAINER, SIDE MUDGUARD
90467-10162

ST20#

 18
76901 - MUDGUARD SUB-ASSY, SIDE, RH
76911-20900

ST20#

 1
76901 - MUDGUARD SUB-ASSY, SIDE, RH
76911-20900

ST20#

 1
76902 - MUDGUARD SUB-ASSY, SIDE, LH
76912-20900

ST20#

 1
76902 - MUDGUARD SUB-ASSY, SIDE, LH
76912-20900

ST20#

 1
76922D - PROTECTOR, SIDE MUDGUARD, NO.2
76922-20050

ST20#

 2
76922D - PROTECTOR, SIDE MUDGUARD, NO.2
76922-20050

ST20#

 2
76925D - PROTECTOR, SIDE MUDGUARD, RH
76925-20020B0

ST20#

GRAY,199

 1
76925-20020C0

ST202

BLACK,202 ,3K6 ,8L2 ,933

 1
76925-20020A0

ST20#

WHITE,040

 1
76925-20020C0

ST202

BLACK,202 ,756 ,8K9 ,8L2

 1
76925-20020C0

ST202

BLACK,202 ,3K6 ,8M2 ,933

 1
76925-20020B1

ST202

GRAY,199

 1
76925-20020C0

ST202

BLACK,202 ,756 ,8L2 ,933

 1
76925-20020D0

ST20#

RED,3L2

 1
76925-20020B1

ST20#

GRAY,199

 1
76925-20020C0

ST202,204

BLACK,202 ,3K6 ,933

 1
76925D - PROTECTOR, SIDE MUDGUARD, RH
76925-20020B0

ST20#

GRAY,199

 1
76925-20020C0

ST202

BLACK,202 ,3K6 ,8L2 ,933

 1
76925-20020A0

ST20#

WHITE,040

 1
76925-20020C0

ST202

BLACK,202 ,756 ,8K9 ,8L2

 1
76925-20020C0

ST202

BLACK,202 ,3K6 ,8M2 ,933

 1
76925-20020B1

ST202

GRAY,199

 1
76925-20020C0

ST202

BLACK,202 ,756 ,8L2 ,933

 1
76925-20020D0

ST20#

RED,3L2

 1
76925-20020B1

ST20#

GRAY,199

 1
76925-20020C0

ST202,204

BLACK,202 ,3K6 ,933

 1
76926D - PROTECTOR, SIDE MUDGUARD, LH
76925-20020C0

ST202

BLACK,202 ,756 ,8K9 ,8L2

 1
76925-20020B0

ST20#

GRAY,199

 1
76925-20020B1

ST202

GRAY,199

 1
76925-20020C0

ST202

BLACK,202 ,3K6 ,8L2 ,933

 1
76925-20020C0

ST202

BLACK,202 ,3K6 ,8M2 ,933

 1
76925-20020C0

ST202,204

BLACK,202 ,3K6 ,933

 1
76925-20020B1

ST20#

GRAY,199

 1
76925-20020C0

ST202

BLACK,202 ,756 ,8L2 ,933

 1
76925-20020D0

ST20#

RED,3L2

 1
76925-20020A0

ST20#

WHITE,040

 1
76926D - PROTECTOR, SIDE MUDGUARD, LH
76925-20020C0

ST202

BLACK,202 ,756 ,8K9 ,8L2

 1
76925-20020B0

ST20#

GRAY,199

 1
76925-20020B1

ST202

GRAY,199

 1
76925-20020C0

ST202

BLACK,202 ,3K6 ,8L2 ,933

 1
76925-20020C0

ST202

BLACK,202 ,3K6 ,8M2 ,933

 1
76925-20020C0

ST202,204

BLACK,202 ,3K6 ,933

 1
76925-20020B1

ST20#

GRAY,199

 1
76925-20020C0

ST202

BLACK,202 ,756 ,8L2 ,933

 1
76925-20020D0

ST20#

RED,3L2

 1
76925-20020A0

ST20#

WHITE,040

 1
Common parts
90159-60414
90159-60420
90189-06006
90189-06154
90467-09185

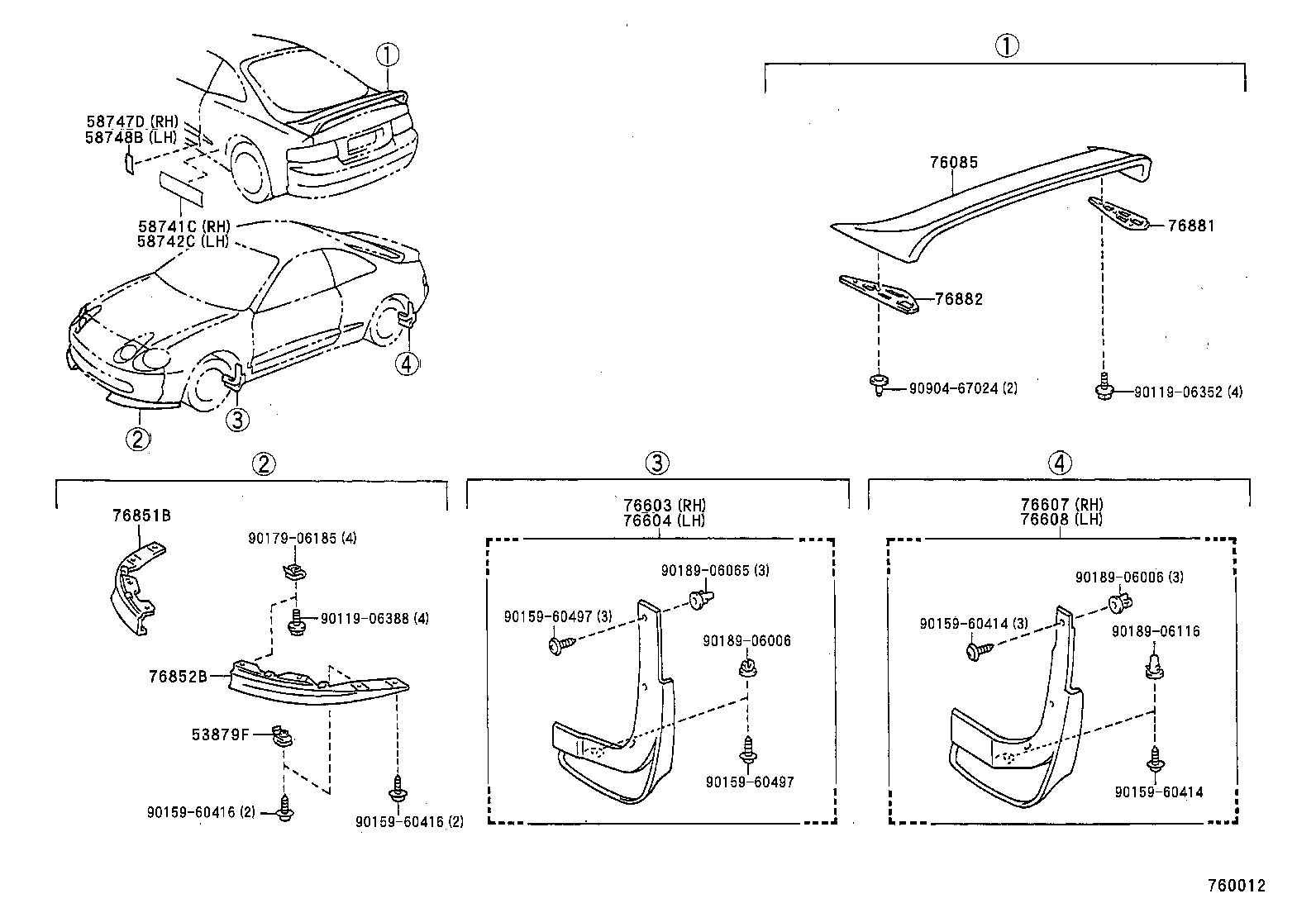

(9311-9508)

Click highlighted areas on diagram

diagram 53879F 58741C 58742C 58747D 58748B 76085 76603 76604 76607 76608 76851B 76852B 76881 76882 9011906352 9011906388 9015960414 9015960414 9015960416 9015960416 9015960497 9015960497 9017906185 9018906006 9018906006 9018906065 9018906116 9090467024
Part # Description Qty Price
58741C - PROTECTOR, QUARTER PANEL, RH
58741-20140

ST20#

 1
58742C - PROTECTOR, QUARTER PANEL, LH
58742-20130

ST20#

 1
58747D - PROTECTOR, QUARTER PANEL, REAR RH
58747-20020

ST20#

 1
58748B - PROTECTOR, QUARTER PANEL, REAR LH
58748-20020

ST20#

 1
76085 - SPOILER SUB-ASSY, REAR
76871-20911

ST20#

 1
76085-20915

ST20#

 1
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76621-29165

ST20#

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76622-29165

ST20#

 1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76625-29195

ST20#

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76626-29195

ST20#

 1
76881 - PROTECTOR, REAR SPOILER SIDE, NO.1 RH
76881-20080

ST20#

 1
76882 - PROTECTOR, REAR SPOILER SIDE, NO.1 LH
76882-20080

ST20#

 1
Common parts
90119-06352
90119-06388
90159-60414
90159-60416
90159-60497
90179-06185
90189-06006
90189-06065
90189-06116
90904-67024
