ST202R-BLMSK (1993)

Toyota Celica

Production Nov 1993 - Aug 1999
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )

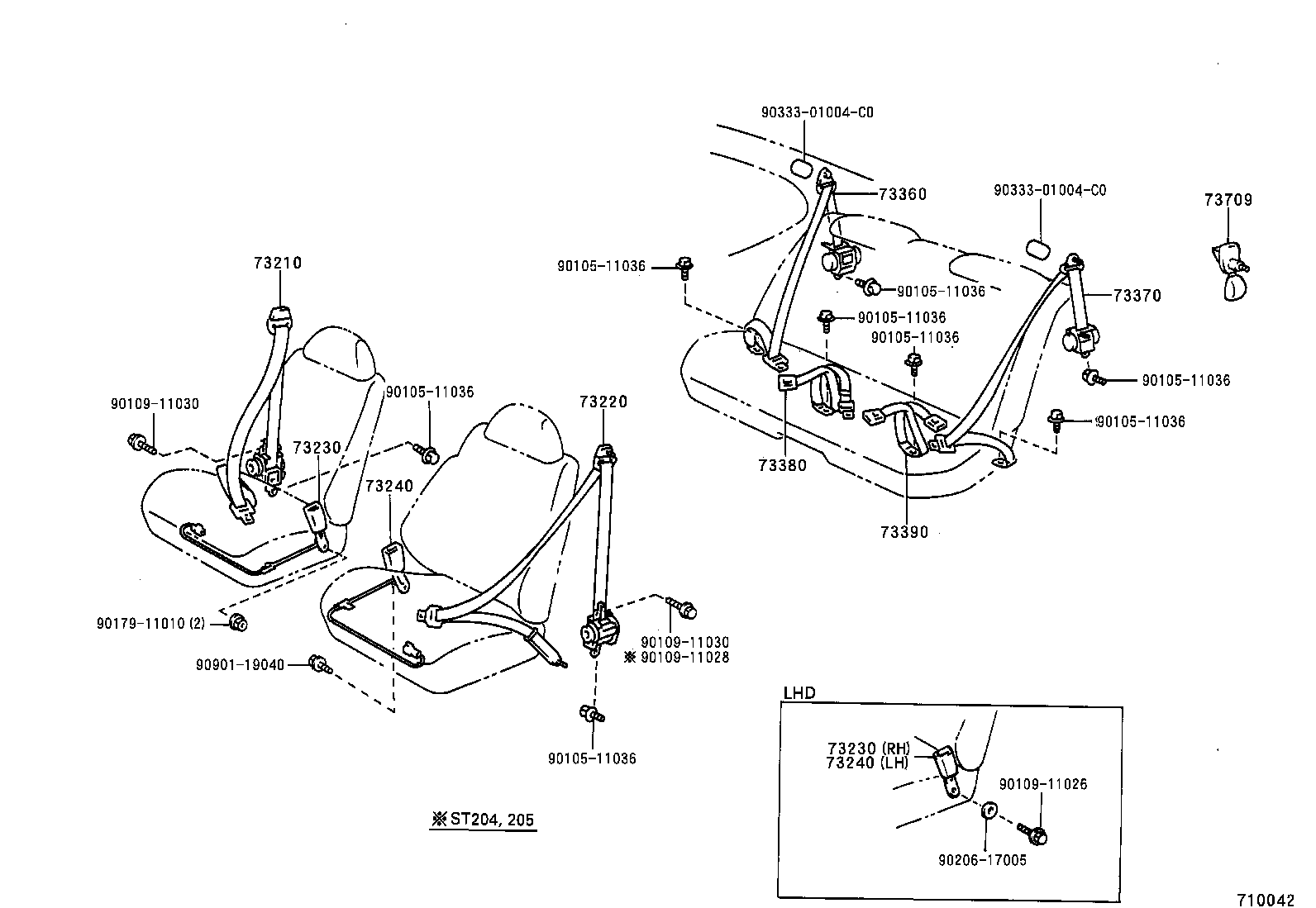

Click highlighted areas on diagram

diagram 73210 73220 73230 73230 73240 73240 73360 73370 73380 73390 73709 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9010911026 9010911028 9010911030 9010911030 9017911010 9020617005 9033301004C0 9033301004C0 9090119040
Part # Description Qty Price
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-20770C0

ST20#

BLACK,TRIM2#

 1
73210-20771C0

ST20#

BLACK,TRIM2#

 1
73210-2B020C0

ST202

BLACK,TRIM2#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-20631C0

ST20#

XXXX,TRIM2#

 1
73220-20630C0

ST20#

BLACK,TRIM2#

 1
73220-20730C0

ST20#

BLACK,TRIM2#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-20650C0

ST20#

BLACK,TRIM2#

 1
73230-20720C0

ST202..RHD

BLACK,TRIM2#

 1
73230-20651C0

ST20#

BLACK,TRIM2#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-20650C0

ST20#

BLACK,TRIM2#

 1
73230-20720C0

ST202..RHD

BLACK,TRIM2#

 1
73230-20651C0

ST20#

BLACK,TRIM2#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-20651C0

ST20#..ARL,GEN

BLACK,TRIM2#

 1
73230-20650C0

ST20#..ARL,GEN

BLACK,TRIM2#

 1
73230-20730C0

ST20#..ARL,GEN

BLACK,TRIM2#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-20651C0

ST20#..ARL,GEN

BLACK,TRIM2#

 1
73230-20650C0

ST20#..ARL,GEN

BLACK,TRIM2#

 1
73230-20730C0

ST20#..ARL,GEN

BLACK,TRIM2#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-20720C0

ST202

BLACK,TRIM2#

 1
73360-20662C0

ST20#

BLACK,TRIM2#

 1
73360-20661C0

ST20#

BLACK,TRIM2#

 1
73360-20660C0

ST20#

BLACK,TRIM2#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-20492C0

ST20#

BLACK,TRIM2#

 1
73370-20491C0

ST20#

BLACK,TRIM2#

 1
73370-20490C0

ST20#

BLACK,TRIM2#

 1
73370-20550C0

ST202

BLACK,TRIM2#

 1
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73380-20450C0

ST202

BLACK,TRIM2#

 1
73380-20460C0

ST202

BLACK,TRIM2#

 1
73380-20461C0

ST202

BLACK,TRIM2#

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73380-20450C0

ST202

BLACK,TRIM2#

 1
73380-20461C0

ST202

BLACK,TRIM2#

 1
73380-20460C0

ST202

BLACK,TRIM2#

 1
73709 - BRACKET SUB-ASSY, TETHER ANCHOR
73708-20030B2

ST20#

BLACK,TRIM2#

 1
Common parts
90105-11036
90109-11026
90109-11028
90109-11030
90179-11010
90206-17005
90333-01004C0
90901-19040

(9311-9508)

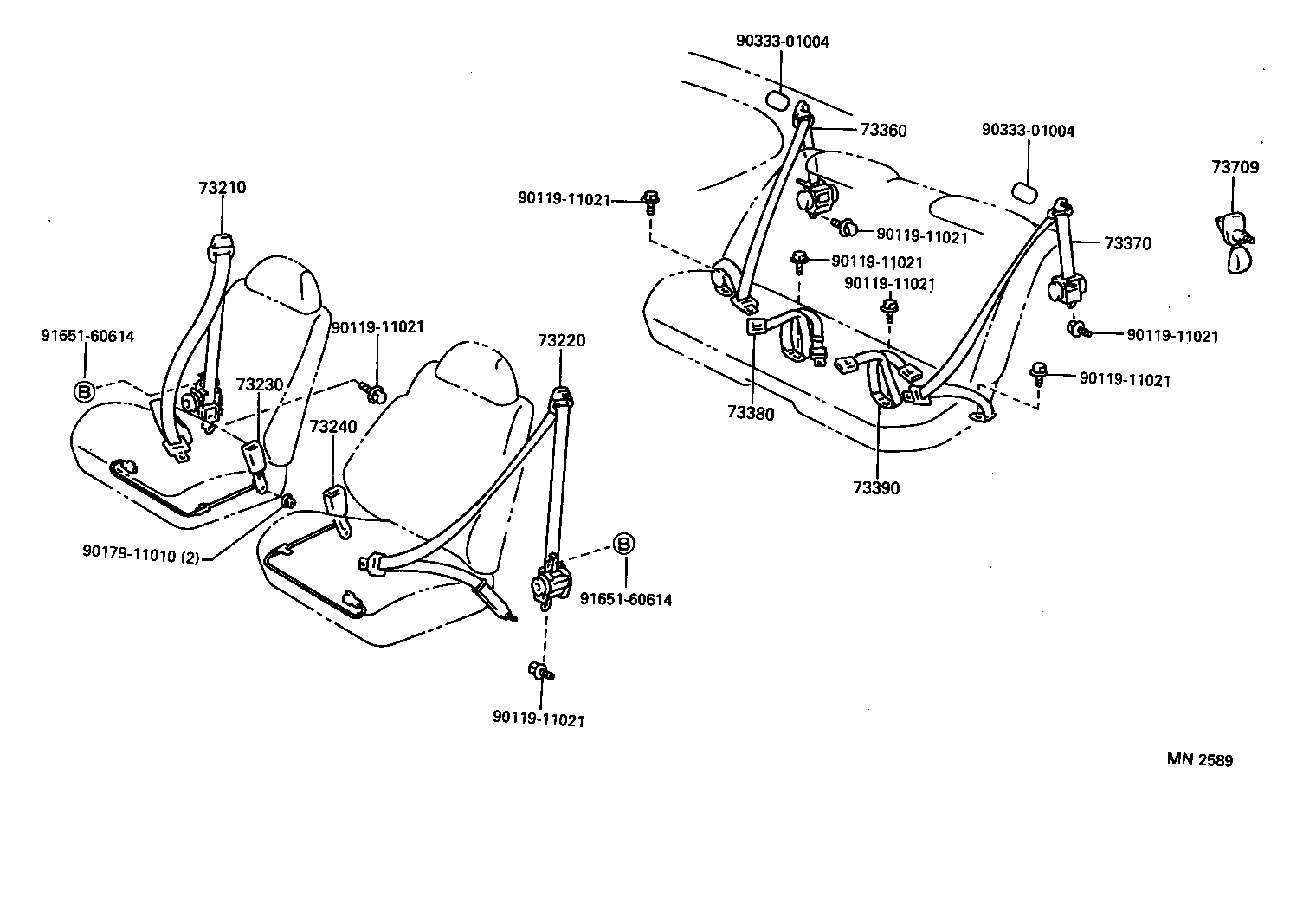

Click highlighted areas on diagram

diagram 73210 73220 73230 73240 73360 73370 73380 73390 73709 9011911021 9011911021 9011911021 9011911021 9011911021 9011911021 9011911021 9011911021 9017911010 9033301004 9033301004 9165160614 9165160614
Part # Description Qty Price
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-20770C0

ST20#

BLACK,TRIM2#

 1
73210-20771C0

ST20#

BLACK,TRIM2#

 1
73210-2B020C0

ST202

BLACK,TRIM2#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-20631C0

ST20#

XXXX,TRIM2#

 1
73220-20630C0

ST20#

BLACK,TRIM2#

 1
73220-20730C0

ST20#

BLACK,TRIM2#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-20650C0

ST20#

BLACK,TRIM2#

 1
73230-20720C0

ST202..RHD

BLACK,TRIM2#

 1
73230-20651C0

ST20#

BLACK,TRIM2#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-20651C0

ST20#..ARL,GEN

BLACK,TRIM2#

 1
73230-20650C0

ST20#..ARL,GEN

BLACK,TRIM2#

 1
73230-20730C0

ST20#..ARL,GEN

BLACK,TRIM2#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-20720C0

ST202

BLACK,TRIM2#

 1
73360-20662C0

ST20#

BLACK,TRIM2#

 1
73360-20661C0

ST20#

BLACK,TRIM2#

 1
73360-20660C0

ST20#

BLACK,TRIM2#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-20492C0

ST20#

BLACK,TRIM2#

 1
73370-20491C0

ST20#

BLACK,TRIM2#

 1
73370-20490C0

ST20#

BLACK,TRIM2#

 1
73370-20550C0

ST202

BLACK,TRIM2#

 1
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73380-20450C0

ST202

BLACK,TRIM2#

 1
73380-20460C0

ST202

BLACK,TRIM2#

 1
73380-20461C0

ST202

BLACK,TRIM2#

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73380-20450C0

ST202

BLACK,TRIM2#

 1
73380-20461C0

ST202

BLACK,TRIM2#

 1
73380-20460C0

ST202

BLACK,TRIM2#

 1
73709 - BRACKET SUB-ASSY, TETHER ANCHOR
73708-20030B2

ST20#

BLACK,TRIM2#

 1
Common parts
90119-11021
90179-11010
90333-01004
91651-60614
