ST202R-BLMSK (1993)
Toyota Celica

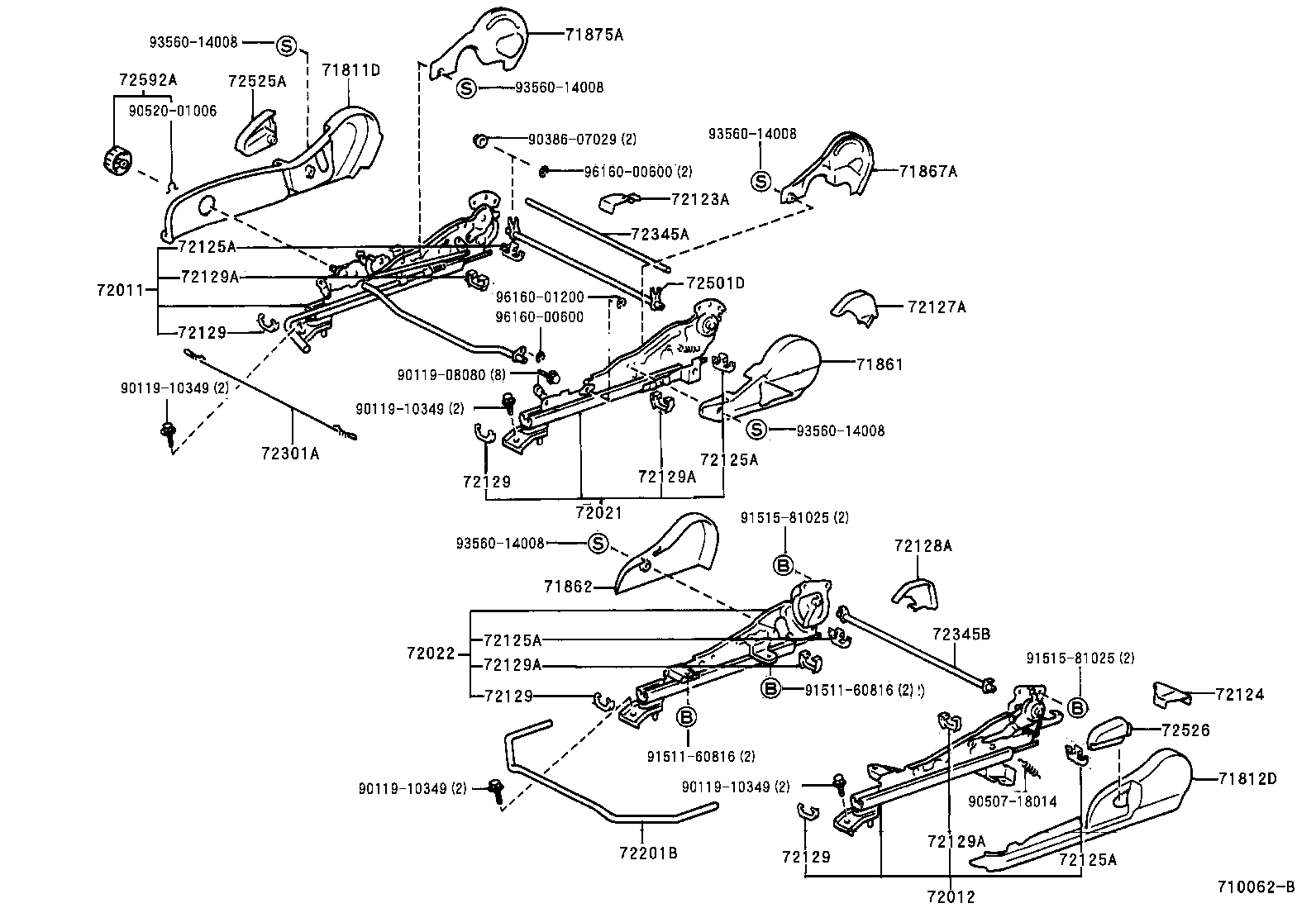

ILLUST NO. 2 OF 2(9508- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-20270C0 |
ST20#..RHD BLACK,TRIM2# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-20260C0 |
ST20#..RHD BLACK,TRIM2# |
1 | ||
| 71812-16200C0 |
ST20#..RHD BLACK,TRIM2# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-20120C0 |
ST20# BLACK,TRIM2# |
1 | ||
| 71861-20120C0 |
ST20#..RHD BLACK,TRIM2# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-20130C0 |
ST20# BLACK,TRIM2# |
1 | ||
| 71862-20120C0 |
ST20# BLACK,TRIM2# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-20030C0 |
ST20# BLACK,TRIM2# |
1 | ||
| 71867-20030C0 |
ST20#..RHD BLACK,TRIM2# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-20040C0 |
ST20#..RHD BLACK,TRIM2# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-20190 |
ST20#..RHD |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-20260 |
ST20#..RHD |
1 | ||
| 72012-20293 |
ST20#..RHD |
1 | ||
| 72012-20290 |
ST20#..RHD |
1 | ||
| 72012-20292 |
ST20#..RHD |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-20160 |
ST20#..RHD |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-20230 |
ST20#..RHD |
1 | ||
| 72022-20261 |
ST20#..RHD |
1 | ||
| 72022-20262 |
ST20#..RHD |
1 | ||
| 72022-20260 |
ST20#..RHD |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-20150 |
ST20# |
1 | ||
| 72123-20150C0 |
ST20# BLACK,TRIM2# |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-20070 |
ST20# |
1 | ||
| 72124-20070C0 |
ST20# BLACK,TRIM2# |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-10010 |
ST20# |
2 | ||
| 72125-20020 |
ST20# |
2 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-10010 |
ST20# |
2 | ||
| 72125-20020 |
ST20# |
2 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-10010 |
ST20# |
2 | ||
| 72125-20020 |
ST20# |
2 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-10010 |
ST20# |
2 | ||
| 72125-20020 |
ST20# |
2 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72157-20040 |
ST20# |
1 | ||
| 72157-20040C0 |
ST20# BLACK,TRIM2# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72158-20030C0 |
ST20# BLACK,TRIM2# |
1 | ||
| 72158-20030 |
ST20# |
1 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-20020 |
ST20# |
2 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-20020 |
ST20# |
2 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-20020 |
ST20# |
2 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-20020 |
ST20# |
2 | ||
| 72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 | ||||
| 72129-20031 |
ST20# INNER |
1 | ||
| 72129-20030 |
ST20# INNER |
1 | ||
| 72129-20040 |
ST20# OUTER |
1 | ||
| 72129-12010 |
ST20# OUTER |
1 | ||
| 72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 | ||||
| 72129-20031 |
ST20# INNER |
1 | ||
| 72129-20030 |
ST20# INNER |
1 | ||
| 72129-20040 |
ST20# OUTER |
1 | ||
| 72129-12010 |
ST20# OUTER |
1 | ||
| 72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 | ||||
| 72129-20031 |
ST20# INNER |
1 | ||
| 72129-20030 |
ST20# INNER |
1 | ||
| 72129-20040 |
ST20# OUTER |
1 | ||
| 72129-12010 |
ST20# OUTER |
1 | ||
| 72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 | ||||
| 72129-20031 |
ST20# INNER |
1 | ||
| 72129-20030 |
ST20# INNER |
1 | ||
| 72129-20040 |
ST20# OUTER |
1 | ||
| 72129-12010 |
ST20# OUTER |
1 | ||
| 72201B - HANDLE SUB-ASSY, SEAT TRACK LH | ||||
| 72201-20100 |
ST20# |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-20280 |
ST20# |
1 | ||
| 72301-20280 |
ST20#..RHD |
1 | ||
| 72345A - PIPE, RECLINING CONNECTING | ||||
| 72345-20030 |
ST20#..RHD |
1 | ||
| 72345B - PIPE, RECLINING CONNECTING | ||||
| 72345-20040 |
ST20# |
1 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72501-20050 |
ST20#..RHD |
1 | ||
| 72501-20050 |
ST20# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-20070C0 |
ST20#..RHD BLACK,TRIM2# |
1 | ||
| 72525-20070C0 |
ST20# BLACK,TRIM2# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-20110C0 |
ST20# BLACK,TRIM2# |
1 | ||
| 72526-16010C0 |
ST20# BLACK,TRIM2# |
1 | ||
| 72592A - KNOB,RECLINING ADJUSTER, RH | ||||
| 72592-20040C0 |
ST20#..RHD BLACK,TRIM2# |
2 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-10349 | ||||
| 90386-07029 | ||||
| 90507-18014 | ||||
| 90520-01006 | ||||
| 90520-01274 | ||||
| 91511-60816 | ||||
| 91515-81025 | ||||
| 93560-14008 | ||||
| 96160-00600 | ||||
| 96160-01200 | ||||

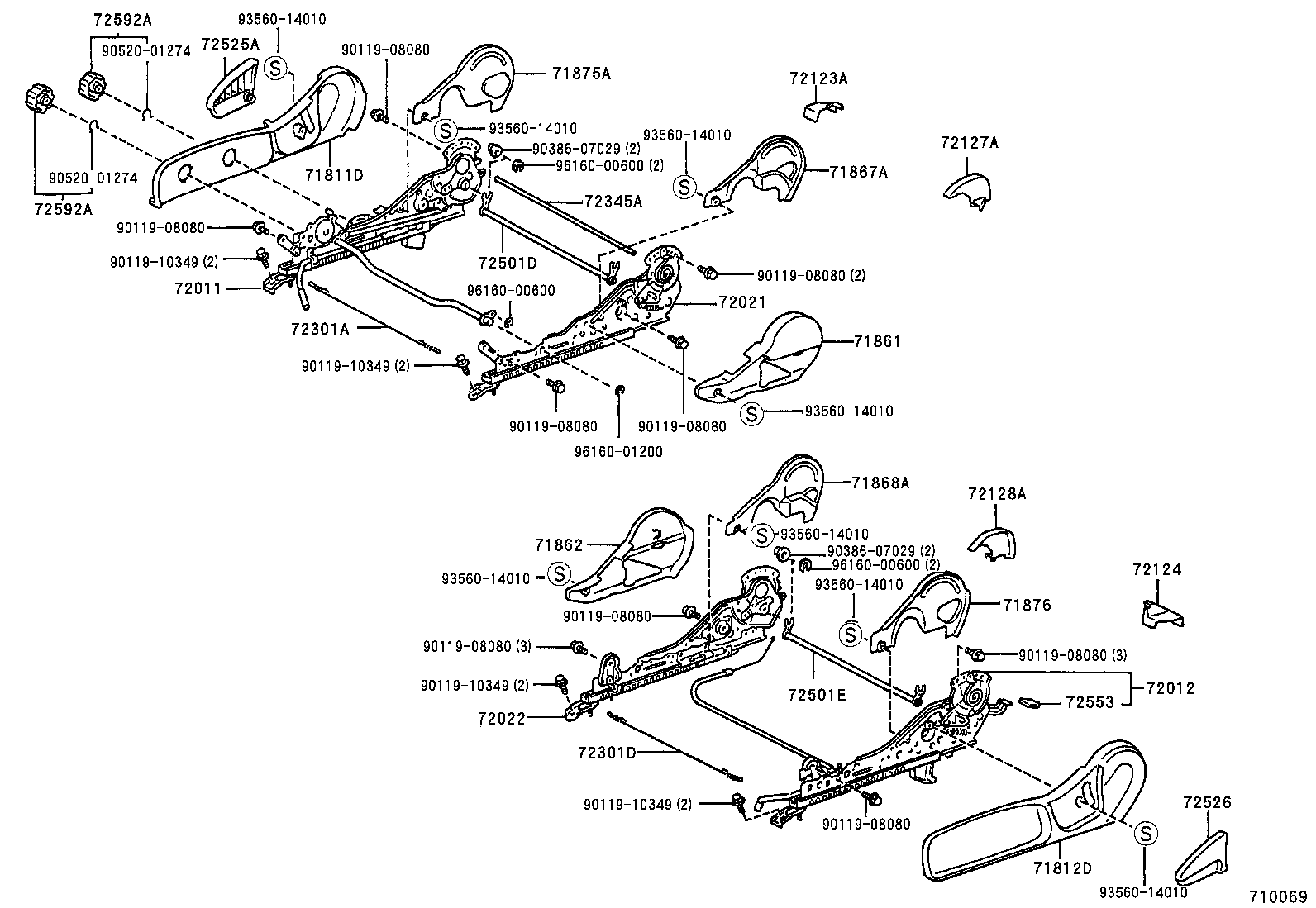

ILLUST NO. 2 OF 2(9311-9508)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-20270C0 |
ST20#..RHD BLACK,TRIM2# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-20260C0 |
ST20#..RHD BLACK,TRIM2# |
1 | ||
| 71812-16200C0 |
ST20#..RHD BLACK,TRIM2# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-20120C0 |
ST20# BLACK,TRIM2# |
1 | ||
| 71861-20120C0 |
ST20#..RHD BLACK,TRIM2# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-20130C0 |
ST20# BLACK,TRIM2# |
1 | ||
| 71862-20120C0 |
ST20# BLACK,TRIM2# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-20030C0 |
ST20# BLACK,TRIM2# |
1 | ||
| 71867-20030C0 |
ST20#..RHD BLACK,TRIM2# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-20030C0 |
ST20# BLACK,TRIM2# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-20040C0 |
ST20#..RHD BLACK,TRIM2# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-20050C0 |
ST20#..RHD BLACK,TRIM2# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-20190 |
ST20#..RHD |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-20260 |
ST20#..RHD |
1 | ||
| 72012-20293 |
ST20#..RHD |
1 | ||
| 72012-20290 |
ST20#..RHD |
1 | ||
| 72012-20292 |
ST20#..RHD |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-20160 |
ST20#..RHD |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-20230 |
ST20#..RHD |
1 | ||
| 72022-20261 |
ST20#..RHD |
1 | ||
| 72022-20262 |
ST20#..RHD |
1 | ||
| 72022-20260 |
ST20#..RHD |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-20150 |
ST20# |
1 | ||
| 72123-20150C0 |
ST20# BLACK,TRIM2# |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-20070 |
ST20# |
1 | ||
| 72124-20070C0 |
ST20# BLACK,TRIM2# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72157-20040 |
ST20# |
1 | ||
| 72157-20040C0 |
ST20# BLACK,TRIM2# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72158-20030C0 |
ST20# BLACK,TRIM2# |
1 | ||
| 72158-20030 |
ST20# |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-20280 |
ST20# |
1 | ||
| 72301-20280 |
ST20#..RHD |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-20280 |
ST20# |
1 | ||
| 72345A - PIPE, RECLINING CONNECTING | ||||
| 72345-20030 |
ST20#..RHD |
1 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72501-20050 |
ST20#..RHD |
1 | ||
| 72501-20050 |
ST20# |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72501-20050 |
ST20# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-20070C0 |
ST20#..RHD BLACK,TRIM2# |
1 | ||
| 72525-20070C0 |
ST20# BLACK,TRIM2# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-20110C0 |
ST20# BLACK,TRIM2# |
1 | ||
| 72526-16010C0 |
ST20# BLACK,TRIM2# |
1 | ||
| 72553 - COVER, RECLINING PEDAL | ||||
| 72553-12040 |
ST20# |
1 | ||
| 72592A - KNOB,RECLINING ADJUSTER, RH | ||||
| 72592-20040C0 |
ST20#..RHD BLACK,TRIM2# |
2 | ||
| 72592A - KNOB,RECLINING ADJUSTER, RH | ||||
| 72592-20040C0 |
ST20#..RHD BLACK,TRIM2# |
2 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-10349 | ||||
| 90386-07029 | ||||
| 90520-01274 | ||||
| 93560-14010 | ||||
| 96160-00600 | ||||
| 96160-01200 | ||||
ILLUST NO. 1 OF 2(9311- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2G540C0 |
ST20# W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2# |
1 | ||
| 71071-2G650C1 |
ST20#..RHD W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2# |
1 | ||
| 71072-2G060C1 |
ST202..RHD BLACK,TRIM2# |
1 | ||
| 71071-2H100C0 |
ST202..RHD W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2# |
1 | ||
| 71071-2G671C1 |
ST202..RHD BLACK,TRIM2# |
1 | ||
| 71071-2G670C0 |
ST202..RHD BLACK,TRIM2# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-2D870C0 |
ST20# W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2# |
1 | ||
| 71072-2G090C1 |
ST20#..RHD W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2# |
1 | ||
| 71071-2G510C1 |
ST202..RHD BLACK,TRIM2# |
1 | ||
| 71072-2G050C0 |
ST202..RHD BLACK,TRIM2# |
1 | ||
| 71072-2G440C0 |
ST202..RHD W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2# |
1 | ||
| 71072-2G051C1 |
ST202..RHD BLACK,TRIM2# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2G360C1 |
ST202 BLACK,TRIM2# |
1 | ||
| 71073-2G520C1 |
ST20#..RHD W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2# |
1 | ||
| 71073-2G550C0 |
ST202..RHD BLACK,TRIM2# |
1 | ||
| 71073-2G521C3 |
ST202..RHD W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2# |
1 | ||
| 71073-2G551C1 |
ST202..RHD BLACK,TRIM2# |
1 | ||
| 71073-2G390C0 |
ST20# W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2# |
1 | ||
| 71073-2G640C1 |
ST202..GEN W(KAIPER VERTICAL ADJUSTER),BLACK,TRIM2# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-2G360C1 |
ST202 BLACK,TRIM2# |
1 | ||
| 71074-2D840C0 |
ST20# W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2# |
1 | ||
| 71073-2G640C1 |
ST202..GEN W(KAIPER VERTICAL ADJUSTER),BLACK,TRIM2# |
1 | ||
| 71073-2G591C3 |
ST202..RHD W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2# |
1 | ||
| 71073-2G590C1 |
ST20#..RHD W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2# |
1 | ||
| 71073-2G641C2 |
ST202..RHD W(KAIPER VERTICAL ADJUSTER),BLACK,TRIM2# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71420-2G660C1 |
ST202..RHD ***,BLACK,TRIM2# |
1 | ||
| 71410-2H150C1 |
ST20#..RHD ***,W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2# |
1 | ||
| 71410-2H350C0 |
ST202..RHD ***,BLACK,TRIM2# |
1 | ||
| 71410-2H351C1 |
ST202..RHD ***,W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2# |
1 | ||
| 71410-2H670C0 |
ST202..RHD ***,BLACK,TRIM2# |
1 | ||
| 71410-2H330C1 |
ST20#..RHD ***,W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-2G670C1 |
ST20#..RHD ***,W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2# |
1 | ||
| 71420-2G870C1 |
ST20#..RHD ***,W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2# |
1 | ||
| 71420-2G210C0 |
ST202..RHD ***,BLACK,TRIM2# |
1 | ||
| 71410-2H140C1 |
ST202..RHD ***,BLACK,TRIM2# |
1 | ||
| 71420-2G211C1 |
ST202..RHD ***,BLACK,TRIM2# |
1 | ||
| 71420-2H320C0 |
ST202..RHD ***,W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-2H030C1 |
ST20# ***,W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2# |
1 | ||
| 71430-2H020C1 |
ST202 ***,BLACK,TRIM2# |
1 | ||
| 71430-2H240C0 |
ST202..RHD ***,BLACK,TRIM2# |
1 | ||
| 71430-2H220C1 |
ST20#..RHD ***,W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2# |
1 | ||
| 71430-2H241C1 |
ST202..RHD ***,BLACK,TRIM2# |
1 | ||
| 71430-2H221C3 |
ST202..RHD ***,W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71430-2H120C1 |
ST20# ***,W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2# |
1 | ||
| 71430-2H020C1 |
ST202 ***,BLACK,TRIM2# |
1 | ||
| 71430-2H250C1 |
ST20#..RHD ***,W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2# |
1 | ||
| 71430-2H280C1 |
ST202..RHD ***,BLACK,TRIM2# |
1 | ||
| 71430-2H251C3 |
ST202..RHD ***,W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2# |
1 | ||
| 71430-2H281C3 |
ST202..RHD ***,BLACK,TRIM2# |
1 | ||
| 71505 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, RH | ||||
| 71505-20280 |
ST202,204 |
1 | ||
| 71505-20290 |
ST20# W(SPORTS SEAT) |
1 | ||
| 71505-20410 |
ST20#..RHD W(SPORTS SEAT & FABRIC SEAT) |
1 | ||
| 71505-20420 |
ST202,204..RHD |
1 | ||
| 71506 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, LH | ||||
| 71505-20280 |
ST202,204 |
1 | ||
| 71505-20290 |
ST20# W(SPORTS SEAT) |
1 | ||
| 71505-20360 |
ST20# W(SPORTS SEAT & FABRIC SEAT) |
1 | ||
| 71505-20370 |
ST202,204..ARL,GEN |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-20680 |
ST20#..RHD |
1 | ||
| 71511-20680 |
ST20# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-20730 |
ST20#..RHD |
1 | ||
| 71511-20680 |
ST20# |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-20090 |
ST20#..RHD |
2 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-20530 |
ST20#..RHD |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71610-20520 |
ST20#..RHD |
1 | ||
| 71610-20550 |
ST20#..RHD |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-20030 |
ST20# |
2 | ||
| 71831-20030 |
ST20#..RHD |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-20010 |
ST20#..RHD |
1 | ||
| 71832-20010 |
ST20# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2B800C1 |
ST20# W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2# |
2 | ||
| 71910-2B770C0 |
ST202,204 BLACK,TRIM2# |
2 | ||
| 71910-2B801C1 |
ST20# W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2# |
2 | ||
| 71910-2B771C0 |
ST202,204 BLACK,TRIM2# |
2 | ||
| 71910-2B760C0 |
ST20# W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2# |
2 | ||
| 71910-2B860C0 |
ST202,204..ARL,GEN BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-32020C0 |
ST20# W(LOCK),W(KAIPER VERTICAL ADJUSTER),BLACK,TRIM2# |
2 | ||
| 71931-20080C0 |
ST20# W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-20120C0 |
ST20# W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-12040C0 |
ST20# W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-32020C0 |
ST20# W/O(LOCK),W(KAIPER VERTICAL ADJUSTER),BLACK,TRIM2# |
2 | ||
| 71930-21050C0 |
ST20# W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-44010C0 |
ST20# W(LOCK),W(KAIPER VERTICAL ADJUSTER),BLACK,TRIM2# |
2 | ||
| 71930-12070C0 |
ST20# W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-32020C0 |
ST20# W(LOCK),W(KAIPER VERTICAL ADJUSTER),BLACK,TRIM2# |
2 | ||
| 71931-20080C0 |
ST20# W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-20120C0 |
ST20# W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-12040C0 |
ST20# W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-32020C0 |
ST20# W/O(LOCK),W(KAIPER VERTICAL ADJUSTER),BLACK,TRIM2# |
2 | ||
| 71930-21050C0 |
ST20# W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-44010C0 |
ST20# W(LOCK),W(KAIPER VERTICAL ADJUSTER),BLACK,TRIM2# |
2 | ||
| 71930-12070C0 |
ST20# W(LOCK),BLACK,TRIM2# |
2 | ||
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18071 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
