ST202R-BLMSK (1993)
Toyota Celica
Production
Nov 1993
-
Aug 1999
Engine
3SFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9311- )

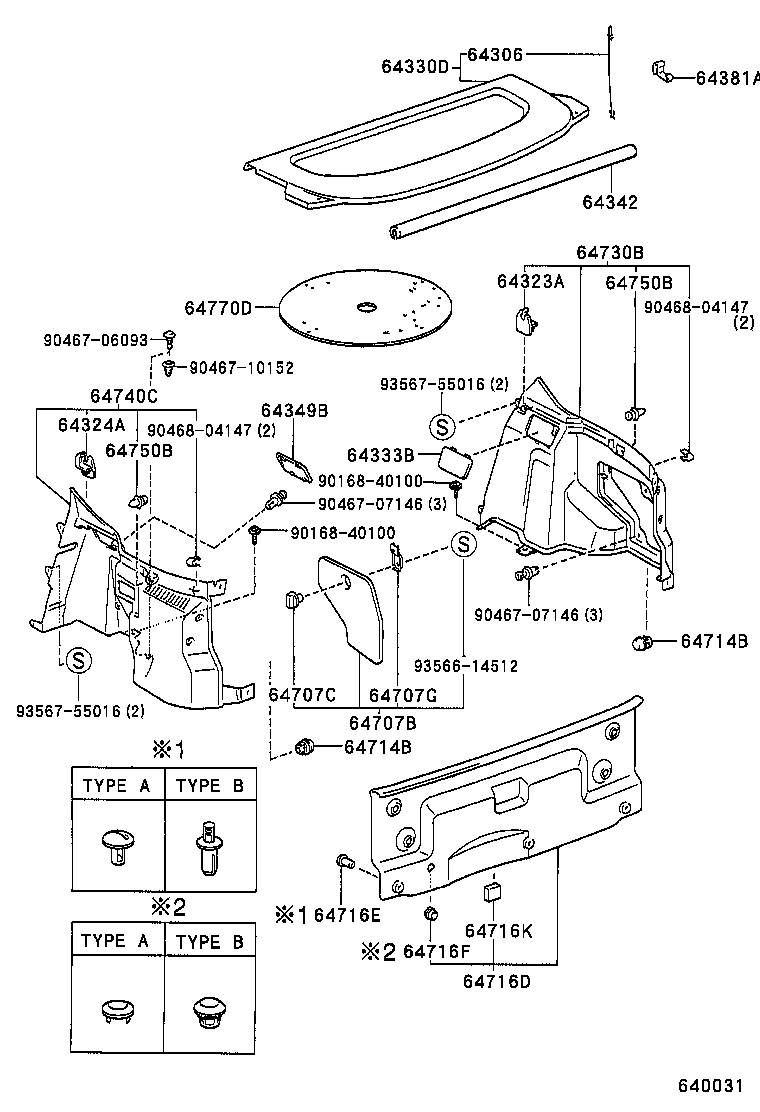

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64306 - SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM | ||||
| 64306-20050 |
ST20# |
2 | ||
| 64323A - CLAMP, PACKAGE TRAY TRIM, RH | ||||
| 64323-2006122 |
ST20# BLACK,TRIM2# |
1 | ||
| 64324A - CLAMP, PACKAGE TRAY TRIM, LH | ||||
| 64324-2005122 |
ST20# BLACK,TRIM2# |
1 | ||
| 64330D - PANEL ASSY, PACKAGE TRAY TRIM | ||||
| 64330-2B820C0 |
ST20# BLACK,TRIM2# |
1 | ||
| 64333B - COVER, PACKAGE TRAY TRIM SIDE, RH | ||||
| 64333-20160C0 |
ST20# W(REAR PERFORMANCE ROD),BLACK,TRIM2# |
1 | ||
| 64333-20150C0 |
ST202,204 BLACK,TRIM2# |
1 | ||
| 64342 - COVER, PACKAGE TRAY TRIM, UNDER | ||||
| 64342-20160C0 |
ST20# BLACK,TRIM2# |
1 | ||
| 64349B - COVER, PACKAGE TRAY TRIM SIDE, LH | ||||
| 64333-20160C0 |
ST20# W(REAR PERFORMANCE ROD),BLACK,TRIM2# |
1 | ||
| 64333-20150C0 |
ST202,204 BLACK,TRIM2# |
1 | ||
| 64381A - HANGER, PACKAGE TRAY TRIM | ||||
| 64381-20050 |
ST20# |
2 | ||
| 64707B - COVER SUB-ASSY, QUARTER TRIM JACK | ||||
| 64707-20050C0 |
ST202,204 BLACK,TRIM2# |
1 | ||
| 64707C - KNOB, JACK COVER | ||||
| 64982-16020C0 |
ST20# BLACK,TRIM2# |
1 | ||
| 64707G - STOPPER, JACK COVER | ||||
| 64981-16021 |
ST20# |
1 | ||
| 64714B - PLUG, HOLE(FOR DECK TRIM SIDE COVER) | ||||
| 90950-01858 |
ST20# |
2 | ||
| 64714B - PLUG, HOLE(FOR DECK TRIM SIDE COVER) | ||||
| 90950-01858 |
ST20# |
2 | ||
| 64716D - COVER, DECK TRIM, REAR | ||||
| 64716-20490C0 |
ST202 BLACK,TRIM2# |
1 | ||
| 64716E - CLIP(FOR DECK TRIM REAR COVER) | ||||
| 90467-07073C0 |
ST20# BLACK,TRIM2#,TYPE B |
2 | ||
| 90467-05080C0 |
ST202,204 BLACK,TRIM2#,TYPE A |
3 | ||
| 64716F - PLUG, HOLE(FOR DECK TRIM REAR COVER) | ||||
| 90950-01858 |
ST202 |
4 | ||
| 64716K - PAD, DECK TRIM COVER | ||||
| 63352-23010 |
ST20# |
1 | ||
| 64730B - PANEL ASSY, DECK TRIM SIDE, RH | ||||
| 64730-20150C0 |
ST202,204 BLACK,TRIM2# |
1 | ||
| 64730-20170C0 |
ST202,204 BLACK,TRIM2# |
1 | ||
| 64740C - PANEL ASSY, DECK TRIM SIDE, LH | ||||
| 64740-20170C0 |
ST202,204 BLACK,TRIM2# |
1 | ||
| 64740-20150C0 |
ST202,204 BLACK,TRIM2# |
1 | ||
| 64750B - RETAINER(FOR DECK SIDE TRIM PANEL) | ||||
| 67771-12050 |
ST202,204 |
4 | ||
| 64750B - RETAINER(FOR DECK SIDE TRIM PANEL) | ||||
| 67771-12050 |
ST202,204 |
4 | ||
| 64770D - COVER ASSY, SPARE WHEEL | ||||
| 64770-20240 |
ST20# |
1 | ||
| Common parts | ||||
| 90168-40100 | ||||
| 90467-06093 | ||||
| 90467-07146 | ||||
| 90467-10152 | ||||
| 90468-04147 | ||||
| 93566-14512 | ||||
| 93567-55016 | ||||
